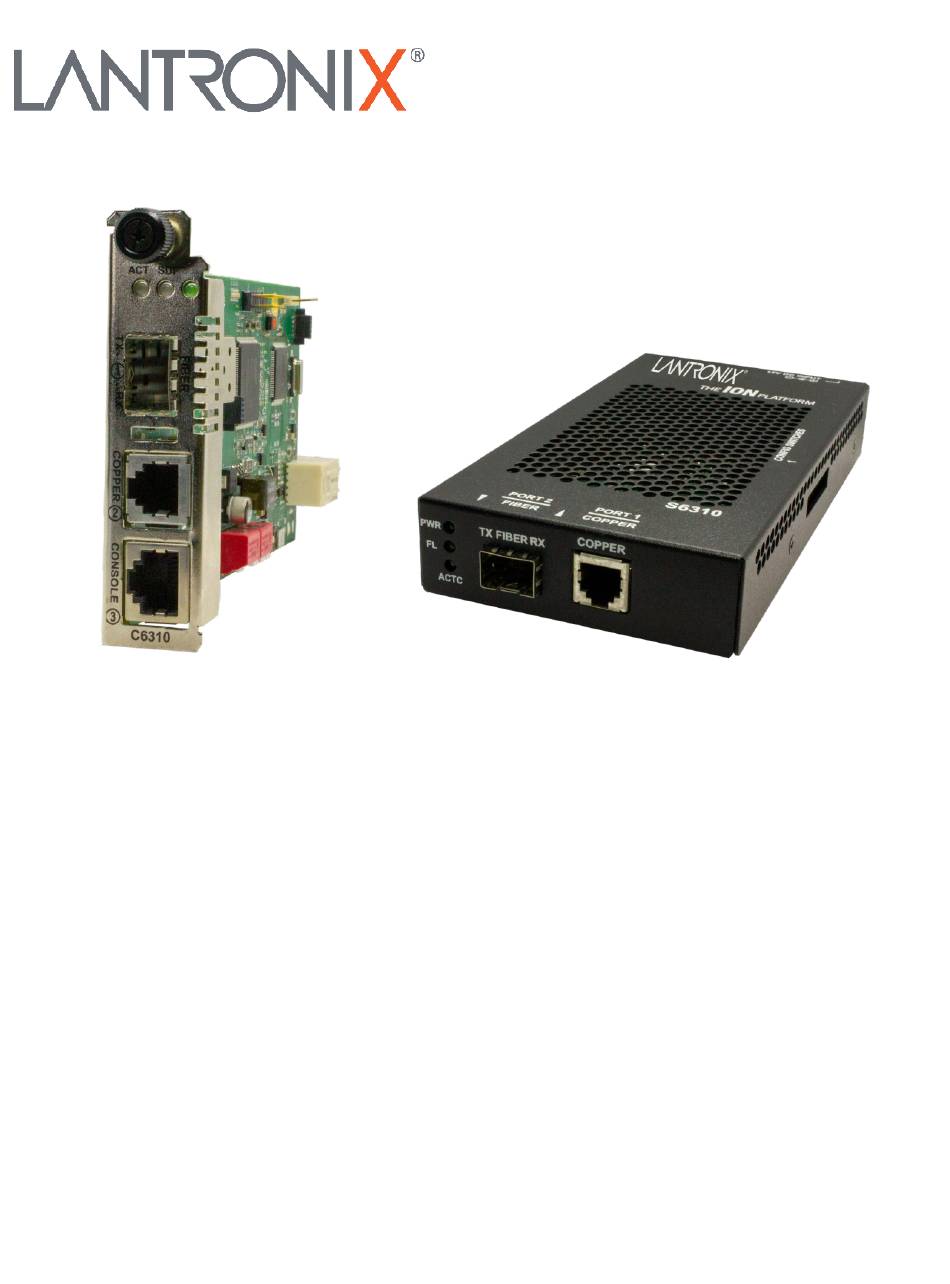

- Page 1 x6310 ION POTS Media Converters POTS 2-Wire Copper-to-Fiber Install Guide Part Number 33818 Revision A March 2022...
- Page 2 ION POTS Media Converter User Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix.
-
Page 3: Table Of Contents
Lantronix x6310 ION POTS Media Converter User Guide Contents Product Description ............................5 Ordering Information ...............................5 Related Documentation ............................5 x6310 Features ...............................6 x6310 Specifications ...............................6 C6310 Product Views .............................7 S6310 Product Views .............................7 Package Contents ..............................8 Application Examples .............................8 FXO Setup ................................8 FXS and FXS-R Setup ............................8... - Page 4 Lantronix x6310 ION POTS Media Converter User Guide Ringer Equivalence Number (REN) ........................34 Harm to the Telephone Network .......................... 34 Changes to the Telephone Company’s Network ....................34 Problems with the Equipment ..........................34 Repairs to the Equipment ............................ 34 Party Lines ................................
-
Page 5: Product Description
ION POTS Media Converter User Guide Product Description Lantronix x6310 Series ION POTS Media Converters are used to connect central-office voice grade signals to distant POTS equipment over fiber using standard telephone signaling. They allow legacy analog phone lines to be extended over fiber, for both permanent installations as well as temporary job-site installations. -
Page 6: X6310 Features
SFP based product: • Uses Gigabit Ethernet SFP Modules Lantronix offers a wide variety of SFP modules to support multimode or single-mode fiber, as well as dual or single strand fiber installations SNMP Management supported when installed in a managed ION chassis •... -
Page 7: C6310 Product Views
Lantronix x6310 ION POTS Media Converter User Guide Pwr: On = power is on Status LEDs FL: On = fiber link is up ACTC: On = Off -Hook, Blink = Ringing, Off = On-Hook Dimensions Width: 0.86” (22 mm) x Depth: 6.5” (165 mm) x Height: 3.4” (86 mm) Power Consumption 2.0 Watts without the SFP... -
Page 8: Package Contents
Lantronix x6310 ION POTS Media Converter User Guide Package Contents Unpack the contents of the x6310 package and verify them against the checklist below. Contact your sales representative if any item is missing or damaged. See the ION x6310 webpage for optional accessories, features, specifications, ordering information, etc. -
Page 9: Installation
Lantronix x6310 ION POTS Media Converter User Guide Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumpers. Failure to observe this caution could result in damage to or failure of the module. PC Board Layout The PCB is shown below. -
Page 10: Dip Switch Settings
Lantronix x6310 ION POTS Media Converter User Guide DIP Switch Settings SW1: UP=FXO, DOWN=FXS SW2: UP=Normal, DOWN=FXS-R SW3: UP=µ-Law (North America and Japan), DOWN=A-Law (Europe and other countries) SW4: Not used SW5-SW8: Country code select: • Must be set when in FXO mode and attached to a CO-PSTN •... -
Page 11: Installing The Chassis Model (C6310)
ION POTS Media Converter User Guide Installing the Chassis Model (C6310) The C6310 is a slide-in module that can only be installed in a Lantronix ION chassis (ION001-x, ION106-x, and ION219-x). This section describes how to install the C6310 in the ION chassis. -
Page 12: Installing Sfps
ION POTS Media Converter User Guide Installing SFPs The ION x6310 lets you install a Gigabit Ethernet Small Form-Factor Pluggable (SFP) device of your choice in order to make a fiber connection. See the Lantronix SFP page for models, safety precautions, and warnings specific to your SFP model. -
Page 13: Standard Configuration
Lantronix x6310 ION POTS Media Converter User Guide Standard Configuration In a standard configuration, the FXO Mode converter connects to the Central Office (CO) or PBX while the FXS Mode converter connects to the analog phone. Install Fiber Cable 1. Locate a fiber cable with male, two-stranded TX to RX connectors installed at both ends. -
Page 14: Operation
Lantronix x6310 ION POTS Media Converter User Guide Operation Power the S6310 Module Note: The external AC power supply provided with this product is UL listed by the power supply’s manufacturer. See the SPS-UA12DHT webpage. Loop-Start Operation Loop-start service (‘Plain Old Telephone Service’ or POTS) is the primary analog signaling method used between telephone switches such as the Central Office (CO) and a telephone device. -
Page 15: Software Installation And Operation
The C6310 slide-in card (SIC) can remotely manage the stand-alone (SA) S6310. For example, a local C6310 converter (that is installed in a managed Lantronix ION System chassis) is connected via fiber, to a remote S6310 converter. The ION x6310 can be managed with SNMP, the ION Command Line Interface (CLI) or the ION Web GUI. -
Page 16: Cli Commands
Lantronix x6310 ION POTS Media Converter User Guide CLI Commands General This section describes the Command Line Interface (CLI) commands available for x6310 operations. These commands are for experienced network administrators who are responsible for configuring and maintaining the ION system. -
Page 17: Recall Commands
Lantronix x6310 ION POTS Media Converter User Guide Recall Commands To recall recently entered commands from the command history, perform one of the optional actions below: Ctrl-P or Up arrow (↑) key: Recall commands in the history buffer, beginning with the most recent command. - Page 18 Lantronix x6310 ION POTS Media Converter User Guide Command: show pots port status Description: Display current POTS port status. Syntax: show pots port status <cr> Parameters: None Example: ION219-TestLab C1|S11|L1D>go c=1 s=11 l1p=1 ION219-TestLab C1|S11|L1P1>show pots port status POTS Hook Status: OnHook ION219-TestLab C1|S11|L1P1>...
-
Page 19: Web Ui Operation
Lantronix x6310 ION POTS Media Converter User Guide Web UI Operation Starting the Web Interface The ION system supports the current version of most popular web browsers (e.g., Firefox, Edge, Chrome). A Web session can be used to connect to and set up the C6310 via the IONMM. -
Page 20: Terminating The Web Interface
Lantronix x6310 ION POTS Media Converter User Guide Terminating the Web Interface To sign out from the Web interface, in the upper left corner of the ION System Web interface: 1. Click System. 2. Click Sign out. The ION sign in screen displays. - Page 21 Lantronix x6310 ION POTS Media Converter User Guide Configuration Mode: The current operating mode of the device (i.e., Software or Hardware). The default is Software mode. Number of Ports: The number of ports supported by this device (e.g., 2). MAC Address: The device’s MAC address in the format 11-22-33-44-55-66.
-
Page 22: C6310 Pots Port 1 Main Tab
Lantronix x6310 ION POTS Media Converter User Guide C6310 POTS Port 1 MAIN Tab The chassis device (C6310) POTS Port 1 MAIN tab parameters are shown and described below. Note that read- only parameters are greyed out. Parameter descriptions: Circuit ID : Entry field for the port circuit ID. -
Page 23: C6310 Fiber Port 2 Main Tab
Lantronix x6310 ION POTS Media Converter User Guide C6310 Fiber Port 2 MAIN Tab The chassis device (C6310) Fiber Port 2 MAIN tab parameters are shown and described below. Note that read- only parameters are greyed out. Parameter descriptions: Circuit ID : Entry field for the port circuit ID. -
Page 24: Remote S6310 Fiber Port 2 Main Tab
Lantronix x6310 ION POTS Media Converter User Guide Remote S6310 Fiber Port 2 MAIN Tab The standalone device (S6310) MAIN tab parameters are shown and described below. Note that read-only parameters are greyed out. Parameter descriptions: Model Information Serial Number: The device serial number (e.g., 8787). - Page 25 Lantronix x6310 ION POTS Media Converter User Guide Emulation Mode: Displays the emulation mode as set by hardware DIP Switch (FXS, FXS-R, or FXO). FXS: Foreign exchange station mode of operation. This unit connects to a telephone line or PBX and acts as a telephone (FXS Mode module) and can detect ringing voltages.
-
Page 26: Remote S6310 Fiber Port 2 Main Tab
Lantronix x6310 ION POTS Media Converter User Guide Remote S6310 Fiber Port 2 MAIN Tab The Port 2 MAIN tab parameters are shown and described below. Note that read-only parameters are greyed out. Parameter descriptions: Circuit ID: Entry field for the port circuit ID. -
Page 27: Remote S6310 Fiber Port 2 Dmi Tab
Lantronix x6310 ION POTS Media Converter User Guide Remote S6310 Fiber Port 2 DMI Tab This page lets you view and configure port-level parameters the Diagnostic Monitoring Interface for the fiber interface. The DMI (Diagnostic Monitoring Interface) function displays NID diagnostic / maintenance information... - Page 28 Lantronix x6310 ION POTS Media Converter User Guide 3. Click the Save button to save the updated information. DMI Parameter descriptions: Parameter Associated MIB variable Description Interface Characteristics Specifies the physical DMI device ID from the standard; for example: SFP/SFP+/SFP28, SG, Optical pigtail, SFP, 300-...
- Page 29 Lantronix x6310 ION POTS Media Converter User Guide Parameter Associated MIB variable Description Temperature Measured temperature of fiber transceiver in tenths of ionDMITemperature(10) (⁰C) degrees C (Celsius). For example: 30.1(⁰C). Temperature Measured Temperature of fiber transceiver in tenths of ionDMITemperature(10) (⁰F)
- Page 30 Lantronix x6310 ION POTS Media Converter User Guide Fiber (m) fiber. The value is in meters. 62.5/125u Specifies the link length that is supported by the Multimode ionDMILenFor625x125um10M(6) transceiver while operating in 62.5 micron Multimode Fiber (m) (MM) fiber. The value is in meters.
- Page 31 Lantronix x6310 ION POTS Media Converter User Guide Buttons Refresh: Click to update the page data. Save: Click to save any parameter changes to the running-config file. Help: Click to display the related online Help page. Page 31 of 39 33818 Rev.
-
Page 32: Troubleshooting
Lantronix x6310 ION POTS Media Converter User Guide Troubleshooting Basic Troubleshooting If a device fails, isolate and correct the fault by answering the following questions and taking the indicated actions. Is the Pwr (power) LED lit? • Make sure the power adapter is the proper type for the module for voltage and frequency. -
Page 33: Box Labels And Device Labels
Lantronix x6310 ION POTS Media Converter User Guide Box Labels and Device Labels The labels can provide information that can help the Tech Support Specialist. LANTRONIX M/N: x6310-3340 US: LTXOT10Ax6310 Complies with 47CFR Part 68 USOC jack: RJ11C Made in TAIWAN Page 33 of 39 33818 Rev. -
Page 34: Consumer Information
Problems with the Equipment If trouble is experienced with the x6310, for repair or warranty information, contact Lantronix. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. -
Page 35: Alarm Dialing Equipment
Lantronix x6310 ION POTS Media Converter User Guide Alarm Dialing Equipment If your facility has specially wired alarm equipment connected to the telephone line, ensure the installation of the x6310 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. -
Page 36: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 37: Tbr21 / Etsi Es 203-021
ES 203-021. ICES-003 Class A (non-residential): see https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf00020.html. Declaration of Conformity Manufacture’s Name : Lantronix, Inc. Manufacturer’s Address : 7535 Irvine Center Drive, Suite100, Irvine, CA 92618, USA Declares that the products: S6310, C6310 Conform to the following Product Regulations:... -
Page 38: Recording Model Information And System Information
A description of any action(s) already taken to resolve the problem (e.g., changing switch mode, rebooting, etc.): __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ The serial # and revision # of each involved Lantronix product in the network: ___________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ Describe your network environment (layout, cable type, etc.): _________________________________________... - Page 39 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support +1.952.358.3601, 1.800.260.1312, or techsupport@transition.com Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 39 of 39 33818 Rev. A https://www.lantronix.com/...
