Summary of Contents for Lantronix SI-IES-111D-LRT

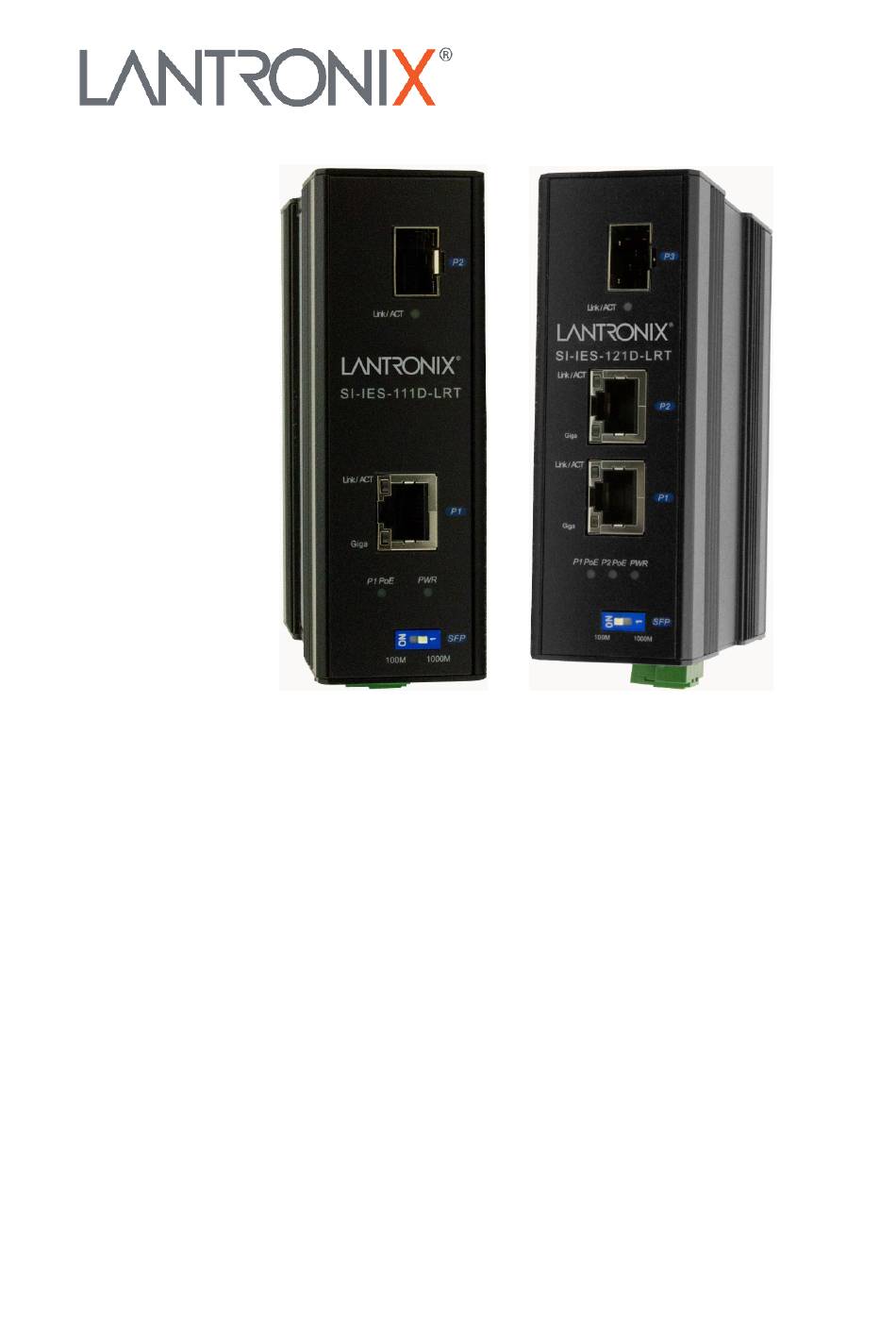

- Page 1 SI-IES-111D-LRT and SI-IES-121D-LRT Unmanaged Hardened PoE+ Injector/Converter User Guide Part Number 33585 Revision L June 2022...
- Page 2 Lantronix SI-IES-1x1D-LRT User Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
- Page 3 9/28/21 Update DoC, DIN-rail bracket, and Wall Mount bracket. 6/10/22 Initial Lantronix re-brand. FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Lantronix SI-IES-1x1D-LRT User Guide Table of Contents ......................5 Overview Product Description ......................5 Ordering Information ......................5 Features ..........................5 Packing List ......................... 6 Safety Precaution ....................... 6 Product Views ........................6 ..................7 2 Hardware Description Front Panel ......................... 7 Top View .......................... -
Page 5: Overview
1 Overview Product Description The SI-IES-111D-LRT is a 2-port unmanaged hardened PoE+ injector/converter that adds up to 30 Watts of power from its PoE+ Port onto a network segment. The gigabit speed SFP slot provides the ultimate flexibility by allowing fiber SFP uplink ports with varying communication distances. -
Page 6: Packing List
Lantronix SI-IES-1x1D-LRT User Guide Packing List • One Hardened Injector/ Converter with IEEE 802.3af/IEEE 802.3at PSE • One Documentation Postcard • One DIN-rail Clip • Two Wall Mounting Brackets and Screws Safety Precaution If DC voltage is supplied by an external power supply, you must use an isolated power supply. -
Page 7: Hardware Description
2 Hardware Description This section provides product views, grounding, wiring, LED, DIP switch, and cabling information. Front Panel The SI-IES-111D-LRT and SI-IES-121D-LRT front panels are shown below. Hardened PoE+ Devices Front Panels Top View Consistent with the IP31 rating, the terminal block connector for the DC power input is located on the bottom of the device. -
Page 8: Grounding
Lantronix SI-IES-1x1D-LRT User Guide Grounding After the Injector is mounted and connected, the back panel grounding screw can be used for grounding. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Note: Run the ground connection from the ground screw to the grounding surface before connecting devices. -
Page 9: Ports
Lantronix SI-IES-1x1D-LRT User Guide Ports RJ45 ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T device connections. Auto MDI/MDIX means that you can connect to another switch or workstation without changing straight through or crossover cabling. See information below for straight through and crossover cable PIN assignments. -
Page 10: Cabling
550m. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. See the Lantronix SFP web page for more small form factor pluggable (SFP) transceivers information. - Page 11 Lantronix SI-IES-1x1D-LRT User Guide To connect the SFP transceiver and LC cable, follow the steps shown below: 1. Insert the transceiver into the SFP module. Notice that the triangle mark is the bottom of the module. Transceiver to the SFP module Transceiver Inserted 2.
- Page 12 Lantronix SI-IES-1x1D-LRT User Guide To remove the LC connector from the SFP transceiver, follow the steps below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release. Remove LC connector 2. Push down on the metal loop and pull the transceiver using the metal loop.
-
Page 13: Wiring The Power Inputs
Lantronix SI-IES-1x1D-LRT User Guide Wiring the Power Inputs Follow the steps below to insert the power wire. 1. Locate the labeling on the device indicating the location of V+ and V- power input connections on the device. 2. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector. -
Page 14: Led Indicators
Lantronix SI-IES-1x1D-LRT User Guide LED Indicators The front panel LEDs display power status and network status. Each LED state and color has its own specific meaning as defined in the table below. LED Definitions LED Indicator Label Description Power off... -
Page 15: Mounting
Lantronix SI-IES-1x1D-LRT User Guide 3 Mounting DIN-Rail Mounting The DIN-rail clip is screwed onto the SI-IES-1x1D-LRT when built at the factory. If the DIN-rail clip is not installed, see the figure below to install the DIN-rail clip onto the switch. -
Page 16: Wall Mounting (Optional)
Lantronix SI-IES-1x1D-LRT User Guide Wall Mounting (Optional) Follow the steps below to mount the SI-IES-1x1D-LRT with the wall mount brackets. 1. Remove the DIN-rail clip from the SI-IES-1x1D-LRT by removing the three mounting screws as shown below. 2. Place the wall mount brackets on the rear panel of the PoE Injector/Converter. - Page 17 Lantronix SI-IES-1x1D-LRT User Guide 4. Use the hook holes at the corners of the wall mount brackets to hang the PoE Injector/Converter on the wall. 5. To remove the wall mount brackets, reverse the steps above. Page 17 of 25 33585 Rev.
-
Page 18: Troubleshooting
If the power LED does not light when the power cord is plugged in, you may have a problem with the power cord or power source. Check for loose power connections, power losses and power at the power outlet. If you still cannot resolve the problem, contact Lantronix technical support for assistance. -
Page 19: Specifications
IEEE 802.3z, IEEE 802.3af Compliant with 802.3at in Environment A when using an isolated power supply Max Frame Size 10K byte jumbo frames 1 x SFP slot 1 x RJ45 (SI-IES-111D-LRT) Connectors 2 x RJ45 (SI-IES-121D-LRT) 2-pin removable terminal block Copper port: Link/ACT... - Page 20 IEC/EN61000-4-5 (Surge) IEC/EN61000-4-6 (CS) IEC/EN61000-4-8 (Magnetic Field) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) IEC60068-2-6 (Vibration) SI-IES-111D-LRT: 743,594 Hours Bellcore Ground Benign, Controlled; Temp 30°C. 653,092 Hours Bellcore Ground Fixed, Uncontrolled; Temp 30°C. MTBF SI-IES-121D-LRT: 717,339 Hours Bellcore Ground Benign, Controlled; Temp 30°C.
-
Page 21: Power Supply Specifications
Power supply option 25131 and 25130 specs are provided below (subject to change). ptions for SI-IES-111D-LRT include either 25130 or 25131 The option for the SI-IES-121D-LRT is 25131. 25131 Features and Specifications The 25131 power supply is a 48VDC, 75 Watts, Industrial DIN-rail Mounted Power Supply. -
Page 22: 25130 Features And Specifications
Lantronix SI-IES-1x1D-LRT User Guide 25130 Features and Specifications Power supply option 25130 is for use with SI-IES-111D-LRT or SI-IES-121D-LRT. This power supply provides the isolation recommended for Environment A. Features • Variable AC input range • Protected against Overload and Over Voltage •... - Page 23 Lantronix SI-IES-1x1D-LRT User Guide Environment: • Operating Temp: -20°C to +70°C • Storage Temp: -40°C to +85°C • Humidity: 20% to 90% (non-condensing) • Weight: 0.66 lbs. [0.3 kg] Compliance: • Safety: UL508, TUV EN60950-1, NEC Class 2, LPS Compliant, UL60950-1, EN55011, EN55022 •...
-
Page 24: Declaration Of Conformity
Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 7535 Irvine Center Drive, Suite 100, Irvine, California 92618 Declares that the products: SI-IES-111D-LRT and SI-IES-121D-LRT Conform to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010... - Page 25 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site www.lantronix.com/about/contact. Page 25 of 25 33585 Rev. L https://www.lantronix.com/...
