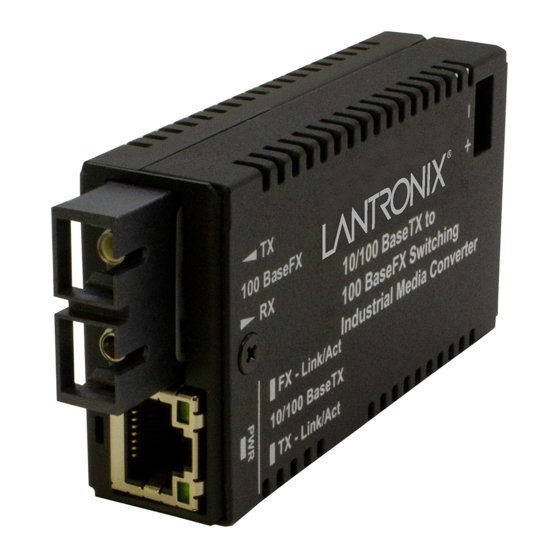

Lantronix M/E-PSW-FX-02 User Manual

Lantronix M/E-PSW-FX-02 User Manual

Stand-alone media converters

Advertisement

Quick Links

M/E-PSW-FX-02
Stand-Alone Media Converters
User Guide
Part Number 33487
Revision F February 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M/E-PSW-FX-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantronix M/E-PSW-FX-02

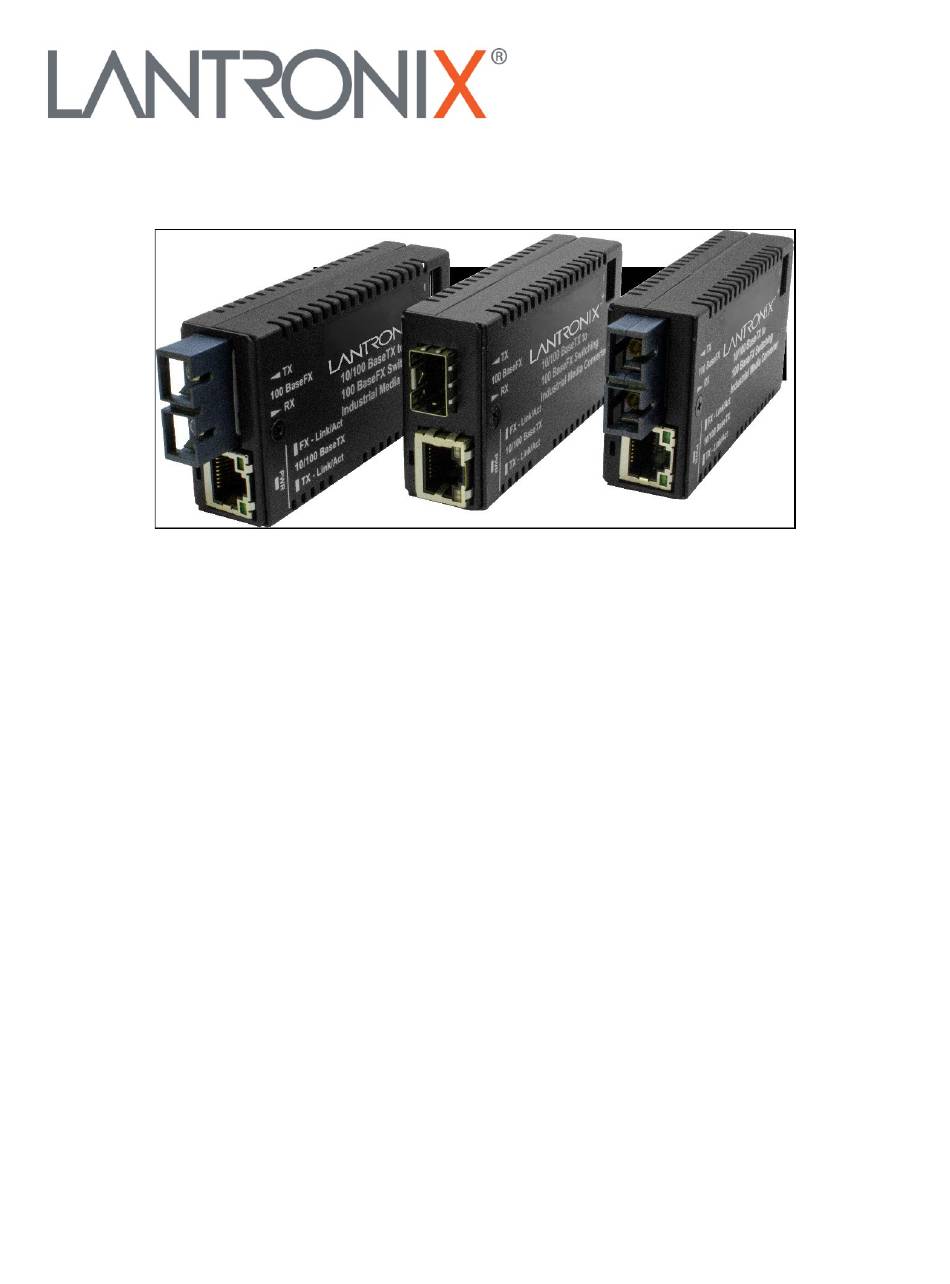

  • Page 1 M/E-PSW-FX-02 Stand-Alone Media Converters User Guide Part Number 33487 Revision F February 2023...
  • Page 2: Revision History

    M/E-PSW-FX-02 User Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
  • Page 3: Table Of Contents

    Copper and Fiber Ports ______________________________________________________ 8 Connect the Fiber Cable _____________________________________________________ 9 Connect the Twisted-pair Copper Cable _________________________________________ 9 Powering the Media Converter ________________________________________________ 10 M/E-PSW-FX-02 Back Panel Power ________________________________________ 10 Power Adapter ____________________________________________________________ 10 AC Power ____________________________________________________________ 10 DC Power ____________________________________________________________ 10...
  • Page 4 Lantronix M/E-PSW-FX-02 User Guide 4 Troubleshooting Contact Us _______________________________________________________________ 15 Compliance Information _____________________________________________________ 16 Declaration of Conformity ________________________________________________ 16 FCC Regulations _______________________________________________________ 16 Canadian Regulations ___________________________________________________ 16 European Regulations __________________________________________________ 17 33487 Rev. F https://www.lantronix.com...
  • Page 5: Introduction

    Lantronix M/E-PSW-FX-02 User Guide Introduction Product Description The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited.
  • Page 6: Features

    Lantronix M/E-PSW-FX-02 User Guide Features • Unit and Port LEDs allow for quick status information • Auto-Negotiation • Fixed Full-Duplex on fiber • Auto-MDI/MDIX • Automatic Link Restoration • Far-End-Fault (FEF) • Connect to legacy network equipment • Eliminate Collision Domains Specifications The information in this user guide is subject to change.
  • Page 7 Lantronix M/E-PSW-FX-02 User Guide CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra- building (inside plant) link segments that are not subject to lightening transients or power faults. Copper-based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to...
  • Page 8: Installation

    To order the corresponding country specific power supply, add the extension to the end of the SKU. For example, M/E-PSW-FX-02-NA = North America, -LA = Latin America, -EU = Europe, -UK = United Kingdom, -SA = South Africa, -JP = Japan, -OZ = Australia, -BR = Brazil.
  • Page 9: Connect The Fiber Cable

    Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the M/E-PSW-FX-02. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.).
  • Page 10: Powering The Media Converter

    Verify that the media converter is powered up by observing the illuminated LED power indicator light on the front panel. DC Power See the Lantronix SPS-1872-SA DC User Guide for the external power supply for powering the media converter. 33487 Rev. F...
  • Page 11: Operation

    Far End Fault Congestion Reduction The M/E-PSW-FX-02 media converters do not forward collision signals or error packets from one collision domain to another, resulting in improvements in baseline network performance. In addition, the media converter filters packets destined for local devices, which reduces network congestion.
  • Page 12: Autocross

    TX copper Fast Ethernet, and one (1)100Base-FX fiber Fast Ethernet collision domain: • In a half-duplex Ethernet or Fast Ethernet environment, the M/E-PSW-FX-02 media converters extend network distances by segmenting collision domains so that the 512-Bit Rule applies separately to each collision domain.
  • Page 13: Far-End Fault

    Lantronix M/E-PSW-FX-02 User Guide Far-End Fault When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on the outgoing fiber link (2). In addition, the Far-End Fault signal also activates the Link Pass-Through, which in turn, disables the link on the copper portion of the network (3) and (4).
  • Page 14: Copper Cable Specs

    Lantronix M/E-PSW-FX-02 User Guide Copper Cable Specs Category 3: Minimum requirement for 10 Mbps Operation Gauge: 24 to 22 AWG Attenuation: 11.5 dB/100m @ 5-10 MHz Maximum Cable Distance: 100 meters Category 5: Minimum requirement for 10 Mbps Operation Gauge:...
  • Page 15: Troubleshooting

    • Tech Support : https://www.lantronix.com/technical-support/ • How to buy : https://www.lantronix.com/buy/ • Online store : http://store.lantronix.com/ • Contact Us : https://www.lantronix.com/about-us/contact/ Note that this manual may provide links to third party websites for which Lantronix is not responsible. 33487 Rev. F https://www.lantronix.com...
  • Page 16: Compliance Information

    Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the product(s): M/E-PSW-FX-02, M/E-PSW-FX-02(SC), and M/E-PSW-FX-02(SM) Conform to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010 Directive 2014/30/EU, Directive 2015/863/EU...
  • Page 17: European Regulations

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 18 48 Discovery, Suite 250 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33487 Rev. F https://www.lantronix.com...
