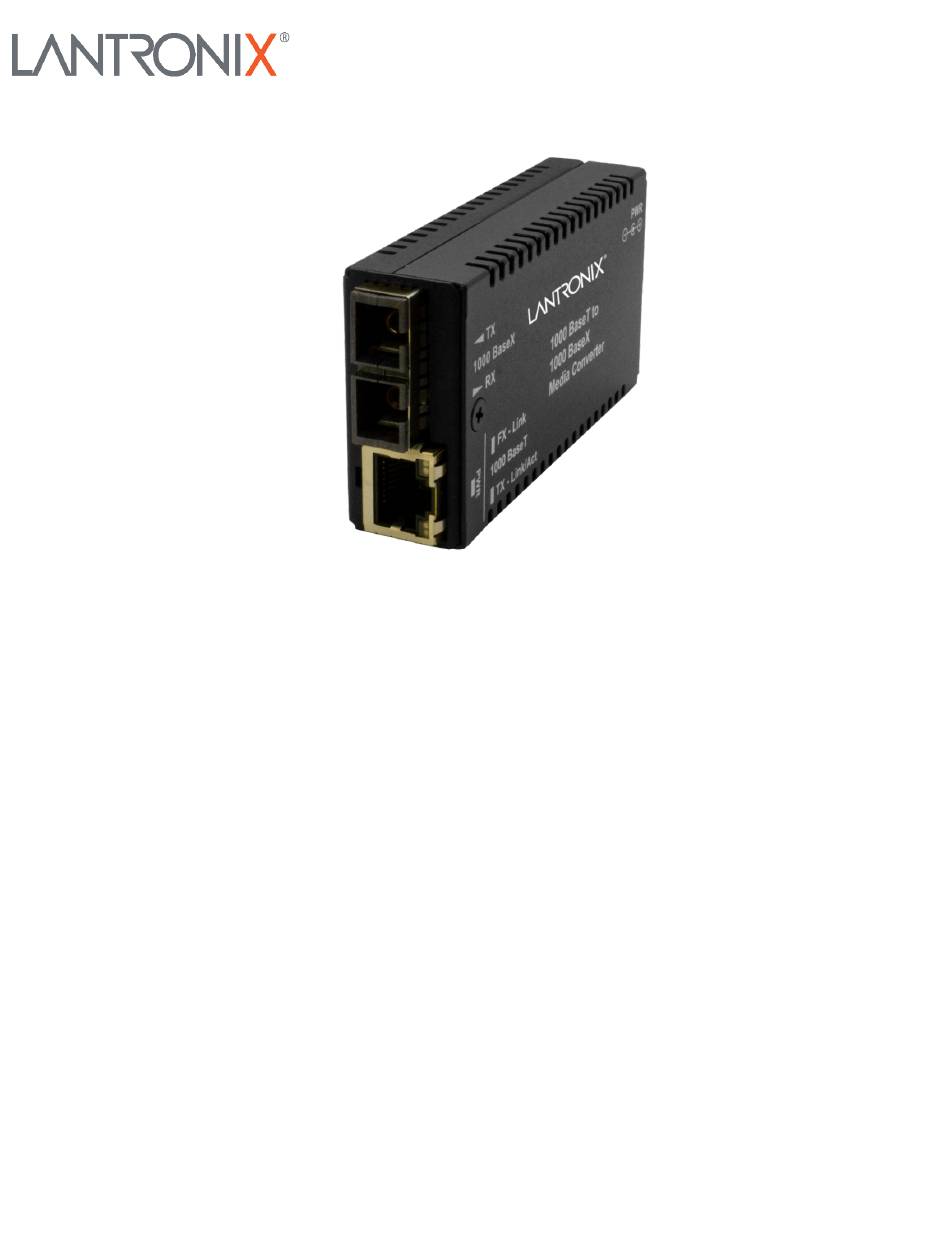

- Page 1 M/GE-T-xxx-01 Mini Media Converter 1000Base-T to 1000Base-SX/LX User Guide Part Number 33516 Revision D February 2023...
- Page 2 M/GE-T-xxx-01 User Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
-
Page 3: Table Of Contents
Lantronix M/GE-T-xxx-01 User Guide Table of Contents Product Description ................................. 4 Ordering Information ................................4 Optional Accessories (sold separately) ........................... 4 Features ....................................4 Package Contents ................................... 5 Installation ....................................5 Observe ESD Precautions ..............................5 Copper and Fiber Ports ..............................5 Connect the Fiber Cable .............................. -
Page 4: Product Description
M/GE-T-xxx-01 User Guide Product Description Lantronix M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. -
Page 5: Package Contents
Lantronix M/GE-T-xxx-01 User Guide Package Contents Make sure you have received the items below. Contact your sales representative if any items are missing. Save the packaging for possible future use. One M/GE-PSW-SX-01 • • One Power Supply One Documentation postcard •... -
Page 6: Connect The Fiber Cable
Lantronix M/GE-T-xxx-01 User Guide Connect the Fiber Cable Full duplex (always ON) is on the fiber side only; therefore, the 512-Bit Rule does not apply. The cable lengths are constrained by the cable requirement. 1. Locate or build IEEE 803.2™ compliant 1000Base-X fiber cable with male, two-stranded TX to RX connectors installed at both ends. -
Page 7: Power Up The Media Converter
3. Verify that the media converter is powered up by observing that the front panel LED power (PWR) indicator is lit. DC Power Consult the user guide for the Lantronix SPS-2460-SA DC external power supply for powering the media converter. Operation Status LEDs Use the status LEDs to monitor the M/GE-T-xxx-01 media converter operation in the network. -
Page 8: Features
Lantronix M/GE-T-xxx-01 User Guide Features Auto-Negotiation The M/GE-T-xxx-01 Auto-Negotiation feature is permanently enabled. Auto-Negotiation allows the media converter to configure itself automatically to achieve the best possible mode of operation over a link. It broadcasts speed (1000 Mb/s) and duplex capabilities (full) to the other device and negotiates the best mode of operation. Auto-Negotiation allows quick and easy installation because the optimal link is established automatically. - Page 9 Lantronix M/GE-T-xxx-01 User Guide Copper Cable Categories 5 and 5e: minimum requirement Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz Maximum Cable Distance 100 meters • Straight-through or crossover twisted-pair cable may be used. • Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.
-
Page 10: Technical Specifications
Lantronix M/GE-T-xxx-01 User Guide Technical Specifications For Lantronix M/GE-T-xxx-01 or equivalent: Standards IEEE 802.3z, IEEE 802.3ab Data Rate 1000Mbps Copper port RJ-45 Fiber Port connector ST, SC, and SFP Jumbo Frames Up to 13,312bytes (Ethernet port) DIP Switches / jumpers None; fixed configurations... -
Page 11: Troubleshooting
Lantronix M/GE-T-xxx-01 User Guide Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED lit and did the TX and FX LEDs turn ON then turn OFF? •... -
Page 12: Ce Mark
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 13 48 Discovery, Suite 250 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33516 Rev. D https://www.lantronix.com/...
