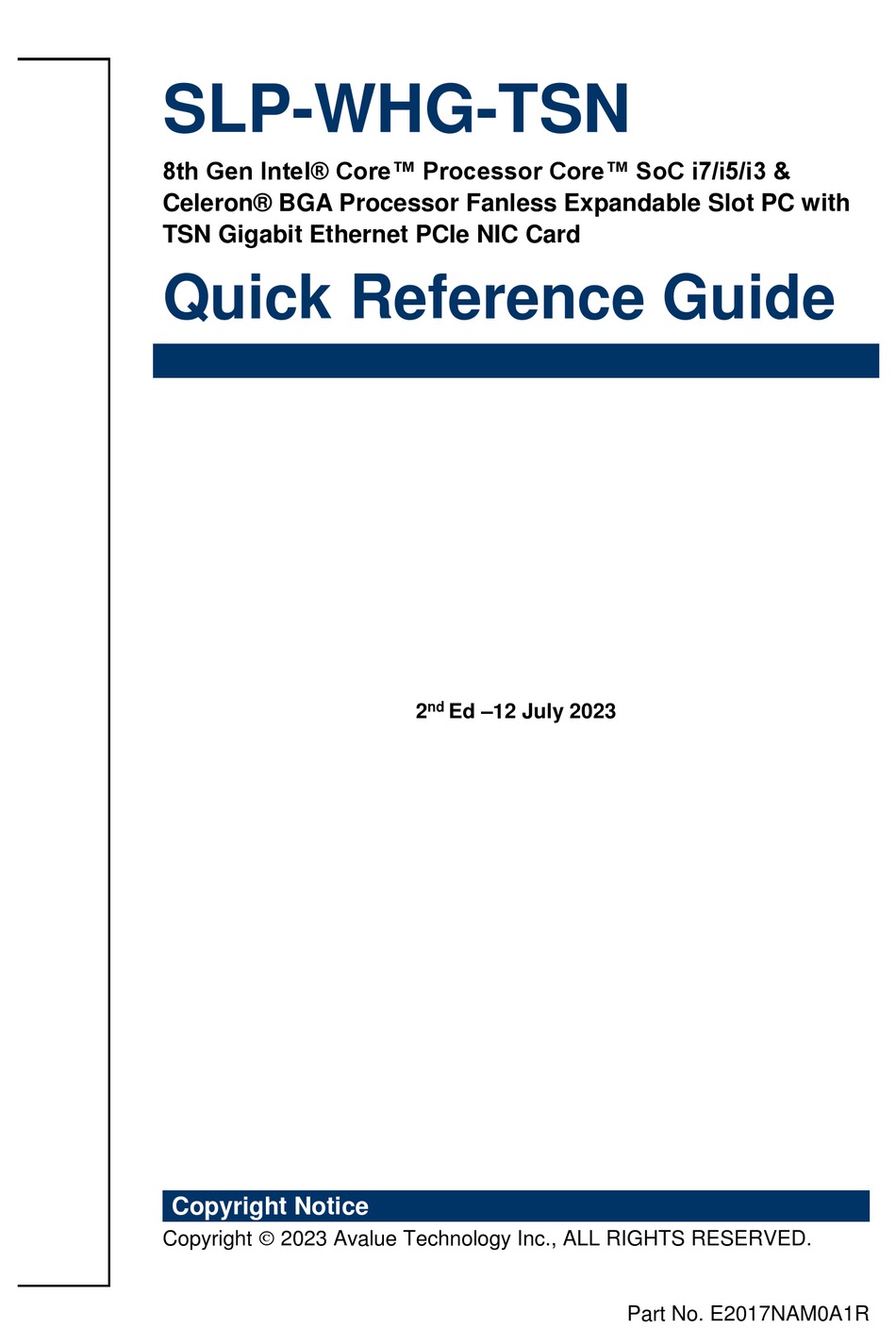

SLP-WHG-TSN
8th Gen Intel® Core™ Processor Core™ SoC i7/i5/i3 &
Celeron® BGA Processor Fanless Expandable Slot PC with
TSN Gigabit Ethernet PCIe NIC Card
Quick Reference Guide
Ed –12 July 2023
nd
2
Copyright Notice
Copyright  2023 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017NAM0A1R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLP-WHG-TSN and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalue Technology SLP-WHG-TSN

  • Page 1 8th Gen Intel® Core™ Processor Core™ SoC i7/i5/i3 & Celeron® BGA Processor Fanless Expandable Slot PC with TSN Gigabit Ethernet PCIe NIC Card Quick Reference Guide Ed –12 July 2023 Copyright Notice Copyright  2023 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017NAM0A1R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 SLP-WHG-TSN Quick Reference Guide...
  • Page 3: Table Of Contents

    2.4.14 USB connector 1(USB1) ......................24 2.4.15 USB connector 2(USB2) ......................24 2.4.16 LVDS connector (LVDS1) ......................25 2.4.17 Front Audio connector (FAUD1) ....................26 2.4.18 EC Debug (JEC_DEBUG) ......................26 2.4.19 Battery connector (BAT1) ......................27 SLP-WHG-TSN Quick Reference Guide...
  • Page 4 3.6.2.6.1 Serial Port 1 Configuration ....................... 48 3.6.2.6.2 Serial Port 2 Configuration ....................... 49 3.6.2.6.3 Serial Port 3 Configuration ....................... 49 3.6.2.6.4 Serial Port 4 Configuration ....................... 50 3.6.2.6.5 Serial Port 5 Configuration ....................... 50 4 SLP-WHG-TSN Quick Reference Guide...
  • Page 5 Boot ............................68 3.6.6 Save and Exit ..........................68 3.6.6.1 Save Changes and Reset ........................ 69 3.6.6.2 Discard Changes and Reset ......................69 3.6.6.3 Restore Defaults ..........................69 3.6.6.4 Launch EFI Shell from filesystem device ..................69 SLP-WHG-TSN Quick Reference Guide...
  • Page 6: Getting Started

    1 x SLP-WHG Onboard 8th Gen Intel® Core™ SoC i7/i5/i3 & Celeron®  BGA Processor with TSN PCIe card Other major components include the following:  — Screw kit — Wall Mount Kit — Accessory box 6 SLP-WHG-TSN Quick Reference Guide...
  • Page 7: System Specifications

    LAN Port 3 x RJ-45 TSN Port 4 x TSN Gigabit Ethernet 1 x PS/2 Keyboard PS/2 KB & Mouse 1 x PS/2 Mouse Power Button 1 x Power On/Off Wire-Control Power 2-Pin Terminal Block On/Off SLP-WHG-TSN Quick Reference Guide...
  • Page 8 Sine Vibration test (Non-operation) 1 Test Acceleration : 2G 2 Test frequency: 5~500 Hz 3 Sweep:1 Oct/ per one minute. (logarithmic) 4 Test Axis: X,Y and Z axis 5 Test time :10 min. each axis 8 SLP-WHG-TSN Quick Reference Guide...
  • Page 9 Software Support OS Information Win10, Linux Software Support Certification CE/FCC Class A Information In-Box Accessory 1. 24V/7.5A AC/DC 180W Adapter Accessory 2. Wall mount kit 3. 2-pin terminal block Note: Specifications are subject to change without notice. SLP-WHG-TSN Quick Reference Guide...
  • Page 10: System Overview

    5 x 2 header, pitch 2.00mm KB&MS PS/2 keyboard & mouse header 4 x 2 header, pitch 2.00mm PWR1 Power connector 2 x 2 wafer, pitch 4.20mm PWR1 DC Input connector 3 x 1 wafer, pitch 5.08mm Power Button connector 10 SLP-WHG-TSN Quick Reference Guide...
  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 SLP-WHG Front & Top view (Unit: mm) SLP-WHG-TSN Quick Reference Guide 11...
  • Page 12: Hardware Configuration

    SLP-WHG-TSN 2. Hardware Configuration Jumper and Connector Setting For advanced information, please refer to: 1- EMX-WHLGP User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 SLP-WHG-TSN Quick Reference Guide...
  • Page 13: Slp-Whg Connector Mapping

    Serial Port 1/2 connector (COM1/2) RS-232 RS-422 RS-485 DCD# TXD422- 485DATA- TXD422+ 485DATA+ RXD422+ DTR# RXD422- DSR# RTS# CTS# 2.1.2 Serial Port 3/4 connector (COM3/4) Signal PIN PIN Signal NRI# NCTS# NRTS# NDSR# NDTR# NTXD NRXD NDCD# SLP-WHG-TSN Quick Reference Guide 13...
  • Page 14: Emx-Whlgp Overviews

    SLP-WHG-TSN 2.2 EMX-WHLGP Overviews 2.2.1 EMX-WHLGP 14 SLP-WHG-TSN Quick Reference Guide...
  • Page 15: Emx-Whlgp Jumper & Connector List

    M.2 3042/2242/2260/2280 Key B Slot JLPC LPC connector 5 x 2 header, pitch 2.00mm DC Power-in connector DCIN1 PWR1 Power connector 2 x 2 wafer, pitch 4.20mm SATA1 is not functioning in SATA1 Serial ATA connector EMX-SKLGP-3855 SKU SLP-WHG-TSN Quick Reference Guide 15...
  • Page 16 4 x 2 header, pitch 2.00mm BAT1 Battery connector 2 x 1 wafer, pitch 1.25mm JHT_LED LED Indicator for Heater 2 x 1 header, pitch 2.54mm JHT1/23/4/5/6 CPU Heatsink Heater Connector 2 x 1 header, pitch 2.00mm Gold Finger 16 SLP-WHG-TSN Quick Reference Guide...
  • Page 17: Emx-Whlgp Setting Jumpers & Connectors

    Quick Reference Guide 2.4 EMX-WHLGP Setting Jumpers & Connectors 2.4.1 Serial port 1/2 pin9 signal select (JCOM1-RI-RS485) Ring* +12V * Default 2.4.2 Serial port 1/2 pin9 signal select (JCOM2-RI-RS485) Ring* +12V * Default SLP-WHG-TSN Quick Reference Guide 17...
  • Page 18: Lvds Back Light Power Selection (Jsbkl1)

    SLP-WHG-TSN 2.4.3 LVDS Back Light power selection (JSBKL1) PWM Mode* DC Mode * Default 2.4.4 AT/ATX Power Mode Select (JSATX1) ATX* * Default 18 SLP-WHG-TSN Quick Reference Guide...
  • Page 19: Clear Cmos (Jcmos1)

    Quick Reference Guide 2.4.5 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 2.4.6 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLT_EN LVDS_BKLTCTL SLP-WHG-TSN Quick Reference Guide 19...
  • Page 20: Serial Port 1 Connector (Com1)

    Serial port 1 connector (COM1) Signal PIN PIN Signal COM_DCD#_1 COM_RXD_1 COM_TXD_1 COM_DTR#_1 COM_DSR#_1 COM_RTS#_1 COM_CTS#_1 COM_R#_1_R 2.4.8 Serial port 2 connector (COM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_R#_2_R 20 SLP-WHG-TSN Quick Reference Guide...
  • Page 21: General Purpose I/O Connector (Dio1)

    Quick Reference Guide 2.4.9 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK_S SMB_DATA_S 2.4.10 SPI connector (JSPI1) Signal Signal +3.3A_SPI SPI0_CS0# SPI_CLK SPI_SO SPI_SI HOLD# SPI_WP# SLP-WHG-TSN Quick Reference Guide 21...
  • Page 22: Serial Port 3-6 Connector (Com3-6)

    PIN PIN Signal COM_R#_6 COM_CTS#_6 COM_RTS#_6 COM_DSR#_6 COM_DTR#_6 COM_TXD_6 COM_RXD_6 COM_DCD#_6 COM_R#_5 COM_CTS#_5 COM_RTS#_5 COM_DSR#_5 COM_DTR#_5 COM_TXD_5 COM_RXD_5 COM_DCD#_5 COM_R#_4 COM_CTS#_4 COM_RTS#_4 COM_DSR#_4 COM_DTR#_4 COM_TXD_4 COM_RXD_4 COM_DCD#_4 COM_R#_3 COM_CTS#_3 COM_RTS#_3 COM_DSR#_3 COM_DTR#_3 COM_TXD_3 COM_RXD_3 COM_DCD#_3 22 SLP-WHG-TSN Quick Reference Guide...
  • Page 23: Sata Power Connector (Spwr1)

    Quick Reference Guide 2.4.12 SATA Power connector (SPWR1) Signal +V5S_SATA1 +V12S_SATA1 2.4.13 CPU Fan connector (JFAN1) Signal +12V_FAN1 CPUFANIN FAN_PWM0 SLP-WHG-TSN Quick Reference Guide 23...
  • Page 24: Usb Connector 1(Usb1)

    SLP-WHG-TSN 2.4.14 USB connector 1(USB1) Signal Signal +V5A_HUB1-4 +V5A_HUB1-4 UHUB_DM1_R UHUB_DM2_R UHUB_DP1_R UHUB_DP2_R 2.4.15 USB connector 2(USB2) Signal Signal +V5A_HUB1-4 +V5A_HUB1-4 UHUB_DM3_R UHUB_DM4_R UHUB_DP3_R UHUB_DP4_R 24 SLP-WHG-TSN Quick Reference Guide...
  • Page 25: Lvds Connector (Lvds1)

    LVDS connector (LVDS1) Signal PIN PIN Signal +5V_LVDS +3.3V_LVDS +5V_LVDS +3.3V_LVDS LVDS_DATA0_P LVDS_DATA1_P LVDS_DATA0_N LVDS_DATA1_N LVDS_DATA2_P LVDS_DATA3_P LVDS_DATA2_N LVDS_DATA3_N LVDS_DATA4_P LVDS_DATA5_P LVDS_DATA4_N LVDS_DATA5_N LVDS_DATA6_P LVDS_DATA7_P LVDS_DATA6_N LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_ CLK1_N LVDS_ CLK2_N +12V +12V SLP-WHG-TSN Quick Reference Guide 25...
  • Page 26: Front Audio Connector (Faud1)

    SLP-WHG-TSN 2.4.17 Front Audio connector (FAUD1) Signal PIN PIN Signal GND_AUD MIC1_JD LINEOUT1_JD MIC1_LIN MIC1_RIN GND_AUD GND_AUD LINEOUT_L LINEOUT_R 2.4.18 EC Debug (JEC_DEBUG) Signal EC_SMCLK EC_SMDAT 26 SLP-WHG-TSN Quick Reference Guide...
  • Page 27: Battery Connector (Bat1)

    Quick Reference Guide 2.4.19 Battery connector (BAT1) Signal +VRTCBAT 2.4.20 PS/2 keyboard & mouse header (KB/MS) Signal PIN PIN Signal KBDAT KBCLK MSDAT MSCLK SLP-WHG-TSN Quick Reference Guide 27...
  • Page 28: Miscellaneous Setting Connector 1 (Fpt1)

    2.4.21 Miscellaneous setting connector 1 (FPT1) Signal PIN PIN Signal -PWR _BTN -Reset +PWR _BTN +Reset -PWR_LED -HD_LED +PWR_LED +HD_LED 2.4.22 Miscellaneous setting connector 2 (FPT2) Signal PIN PIN Signal Speaker+ BLK_VR(10K) BLK_UP BLK_DN Speaker- 28 SLP-WHG-TSN Quick Reference Guide...
  • Page 29: Led Indicator Connector 1 (Led1)

    Quick Reference Guide 2.4.23 LED indicator connector 1 (LED1) Signal LAN1_ACT_P LAN1_ACT_N LAN1_100#_LED LAN1_1000#_LED 2.4.24 LED indicator connector 2 (LED2) Signal LAN2_ACT_P LAN2_ACT_N LAN2_100#_LED LAN2_1000#_LED SLP-WHG-TSN Quick Reference Guide 29...
  • Page 30: Led Indicator Connector 3 (Led3)

    SLP-WHG-TSN 2.4.25 LED indicator connector 3 (LED3) Signal LAN3_ACT_P LAN3_ACT_N LAN3_100#_LED LAN3_1000#_LED 2.4.26 Speaker connector (SPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- 30 SLP-WHG-TSN Quick Reference Guide...
  • Page 31: Ji2C Connector (Ji2C1)

    Quick Reference Guide 2.4.27 JI2C connector (JI2C1) Signal +3.3V INT_I2C0# I2C0_CLK I2C0_DATA 2.4.28 LPC connector (JLPC1) Signal PIN PIN Signal LPC_SERIRQ LPC_CLK LPC_AD3 LPC_FRAME# LPC_AD2 PCH_PLTRST# LPC_AD1 +3.3V LPC_AD0 SLP-WHG-TSN Quick Reference Guide 31...
  • Page 32: Cpu Heatsink Heater Connector (Jht1/2/3/4/5/6)

    SLP-WHG-TSN 2.4.29 CPU Heatsink Heater Connector (JHT1/2/3/4/5/6) JHT2 JHT1 JHT5 JHT6 Signal +12V 2.4.30 LED Indicator for Heater (JHT_LED1) Signal +12V 32 SLP-WHG-TSN Quick Reference Guide...
  • Page 33: Gold Finger (Gf)

    B14 A14 CLK_GF_N5 PCIE_TXN13 B15 A15 B16 A16 PCIE_RXP13 B17 A17 PCIE_RXN13 B18 A18 PCIE_TXP14 B19 A19 PCIE_TXN14 B20 A20 B21 A21 PCIE_RXP14 B22 A22 PCIE_RXN14 PCIE_TXP15 B23 A23 PCIE_TXN15 B24 A24 B25 A25 PCIE_RXP15 SLP-WHG-TSN Quick Reference Guide 33...
  • Page 34 B36 A36 SATA_TXP_1_GF_L B37 A37 SATA_TXN_1_GF_L B38 A38 B39 A39 SATA_RXN_1_GF_L B40 A40 SATA_RXP_1_GF_L PCIE_GF_TXP9 B41 A41 PCIE_GF_TXN9 B42 A42 B43 A43 PCIE_GF_RXP9 B44 A44 PCIE_GF_RXN9 B45 A45 B46 A46 B47 A47 B48 A48 B49 A49 34 SLP-WHG-TSN Quick Reference Guide...
  • Page 35: Power Connector (Pwr1)

    Quick Reference Guide 2.4.32 Power connector (PWR1) Signal Signal +VIN +VIN Note: VIN = 12~24V SLP-WHG-TSN Quick Reference Guide 35...
  • Page 36: Bios Setup

    SLP-WHG-TSN 3.BIOS Setup 36 SLP-WHG-TSN Quick Reference Guide...
  • Page 37: Introduction

    If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP SLP-WHG-TSN Quick Reference Guide 37...
  • Page 38: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 38 SLP-WHG-TSN Quick Reference Guide...
  • Page 39: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. SLP-WHG-TSN Quick Reference Guide 39...
  • Page 40: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 40 SLP-WHG-TSN Quick Reference Guide...
  • Page 41: System Language

    Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. SLP-WHG-TSN Quick Reference Guide 41...
  • Page 42: Cpu Configuration

    When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled, hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores 1/2/3/4 package. 3.6.2.2 Power & Performance 42 SLP-WHG-TSN Quick Reference Guide...
  • Page 43: Cpu - Power Management Control

    Enabling will expose the CPPC v2 interface Technology Enabled to allow for hardware controlled P-states. Disabled[Default], Enable/Disable CPU Power Management. Allows C states Enabled CPU to go to C states when it’s not 100% utilized. 3.6.2.2.1.1 Config TDP Configurations SLP-WHG-TSN Quick Reference Guide 43...
  • Page 44: Gt - Power Management Control

    96/112/128 Custom value for Turbo Activation Ratio. Needs to ConfigTDP Turbo be configured with valid values from LFM to Max Activation Ratio Turbo. 0 means don't use custom value. 3.6.2.2.2 GT - Power Management Control 44 SLP-WHG-TSN Quick Reference Guide...
  • Page 45: Pch-Fw Configuration

    Disabled Mode. When disabled AMT BIOS Features are no longer Disabled, supported and user is no longer able to access AMT BIOS Features Enabled[Default] MEBx Setup. Note: This option does not disable Manageability Features in FW. SLP-WHG-TSN Quick Reference Guide 45...
  • Page 46: Firmware Update Configuration

    3.6.2.4 Trusted Computing Item Options Description Enable or Disable BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI Enable[Default] protocol and INT1A interface will not be available. 46 SLP-WHG-TSN Quick Reference Guide...
  • Page 47: Acpi Settings

    Suspend Disabled, Select the highest ACPI sleep state the system will ACPI Sleep State S3 (Suspend to RAM)[Default] enter when the SUSPEND button is pressed. 3.6.2.6 IT8528 Super IO Configuration SLP-WHG-TSN Quick Reference Guide 47...
  • Page 48: Serial Port 1 Configuration

    Set Parameters of Serial Port 6 (COMF). 3.6.2.6.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 48 SLP-WHG-TSN Quick Reference Guide...
  • Page 49: Serial Port 2 Configuration

    Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.6.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], SLP-WHG-TSN Quick Reference Guide 49...
  • Page 50: Serial Port 4 Configuration

    3.6.2.6.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.6.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 50 SLP-WHG-TSN Quick Reference Guide...
  • Page 51: Serial Port 6 Configuration

    3.6.2.7 EC 8528 HW monitor Item Options Description Disabled[Default], Smart Fan Function Enabled or Disable Smart Fan Enabled Disabled[Default], Turn on heater when CPU temperature below Heat CPU when temp < 0 Enabled 0degree C before system boot up. SLP-WHG-TSN Quick Reference Guide 51...
  • Page 52: S5 Rtc Wake Settings

    Fixed Time specified. Select Dynamic Time, System will wake on the Dynamic Time current time + Increase minute(s) 3.6.2.9 Serial Port Console Redirection Item Option Description Disabled[Default], Console Redirection Console Redirection Enabled or Disable. Enabled 52 SLP-WHG-TSN Quick Reference Guide...
  • Page 53: Legacy Serial Redirection Port

    Redirection is disabled before booting to legacy OS. Always Enable[Default], Redirect After POST When Always Enable is selected, then Legacy Console BootLoader Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. 3.6.2.10 USB Configuration SLP-WHG-TSN Quick Reference Guide 53...
  • Page 54: Nvme Controller And Drive Information

    Forced FDD Optical drives are emulated as ‘CDROM’, drive with 1100 Hard Disk no media will be emulated according to a drive type. CD-ROM 3.6.2.11 NVMe controller and Drive information 54 SLP-WHG-TSN Quick Reference Guide...
  • Page 55: Network Stack Configuration

    Quick Reference Guide 3.6.2.12 Network Stack Configuration 3.6.3 Chipset SLP-WHG-TSN Quick Reference Guide 55...
  • Page 56: System Agent (Sa) Configuration

    3.6.3.1.1 Memory Configuration Item Option Description Dynamic[Default]/ Maximum Value of TOLUD. Dynamic assignment 1GB/1.25GB/1.5GB/ Max TOLUD would adjust TOLUD automatically based on largest 1.75 GB/2 GB/2.25 GB/ MMIO length of installed graphic controller 2.5 GB/2.75 GB/3 GB 56 SLP-WHG-TSN Quick Reference Guide...
  • Page 57: Graphics Configuration

    Auto[Default] Auto: Skip GPIO based Power Enable to dGPU Select PCIE Card Elk Creek 4 Elk Creek 4: DGPU Power Enable = ActiveLow PEG Eval PEG Eval: DGPU Power Enable = ActiveHigh 3.6.3.2 PCH-IO Configuration SLP-WHG-TSN Quick Reference Guide 57...
  • Page 58: Pci Express Configuration

    Option Description Select PCle-9 as Lan3-1210 or GF PCle slot PCIe-9 switch Lan3 or GF Lan3 [Default] Notice:please shutdown and power again manually slot GF slot to synchronize this signal 3.6.3.2.1.1 PCIe Root Port 8(LAN2-I210) 58 SLP-WHG-TSN Quick Reference Guide...
  • Page 59: Pcie Root Port 9(Lan3-I210/Gf Slot)

    Set the ASPM Level: Force L0s - Force all links to ASPM 8 L0s State AUTO - BIOS auto configure DISABLE - L0sL1 Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], SLP-WHG-TSN Quick Reference Guide 59...
  • Page 60: Pcie Root Port 10(M.2 Keya)

    ASPM 9 L0s State AUTO - BIOS auto configure DISABLE - L0sL1 Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 60 SLP-WHG-TSN Quick Reference Guide...
  • Page 61: Pcie Root Port 11(M.2 Keyb/Sata0)

    ASPM 10 L0s State AUTO - BIOS auto configure DISABLE - L0sL1 Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 SLP-WHG-TSN Quick Reference Guide 61...
  • Page 62: Pcie Root Port 13(Gp Pciex4)

    ASPM 12 L0s State AUTO - BIOS auto configure DISABLE - L0sL1 Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 62 SLP-WHG-TSN Quick Reference Guide...
  • Page 63: Sata And Rst Configuration

    GF board SATA[Default] Select SATA to MB or GF board board MB SATA Hard Disk Drive[Default] Identify the SATA port is connected to Solid State SATA Device Type Solid State Drive Drive or Hard Disk Drive. SLP-WHG-TSN Quick Reference Guide 63...
  • Page 64: Hd Audio Configuration

    3.6.3.2.3 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disabled Disabled HD Audio = HDA will be unconditionally disabled Enabled = Enabled[Default], HDA will be unconditionally enabled. 3.6.3.3 Board & Panel Configuration 64 SLP-WHG-TSN Quick Reference Guide...
  • Page 65: Security

    Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], Disabled Enabled/Disabled USB Standby Power during USB Standby Power Enabled[Default], S3/S4/S5 3.6.4 Security  Administrator Password Set Administrator Password  User Password Set User Password SLP-WHG-TSN Quick Reference Guide 65...
  • Page 66: Secure Boot

    The mode change requires platform reset Secure Boot mode options: Standard or Custom. In Standard Custom mode, Secure Boot Policy variables can be Secure Boot Mode Custom[Default], configured by a physically present user without full authentication 3.6.4.1.1 Restore Factory Keys 66 SLP-WHG-TSN Quick Reference Guide...
  • Page 67: Reset To Setup Mode

    Quick Reference Guide 3.6.4.1.2 Reset To Setup Mode 3.6.4.1.3 Key Management Item Option Description Install factory default Secure Boot keys after the Disabled[Default] Factory Key Provision platform reset and while the System is in Setup Enabled mode SLP-WHG-TSN Quick Reference Guide 67...
  • Page 68: Boot

    Select the Keyboard NumLock state Off[Default] Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Sets the system boot order. Boot Option #2 Sets the system boot order. 3.6.6 Save and Exit 68 SLP-WHG-TSN Quick Reference Guide...
  • Page 69: Save Changes And Reset

    Reset system setup without saving any changes. 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. SLP-WHG-TSN Quick Reference Guide 69...
