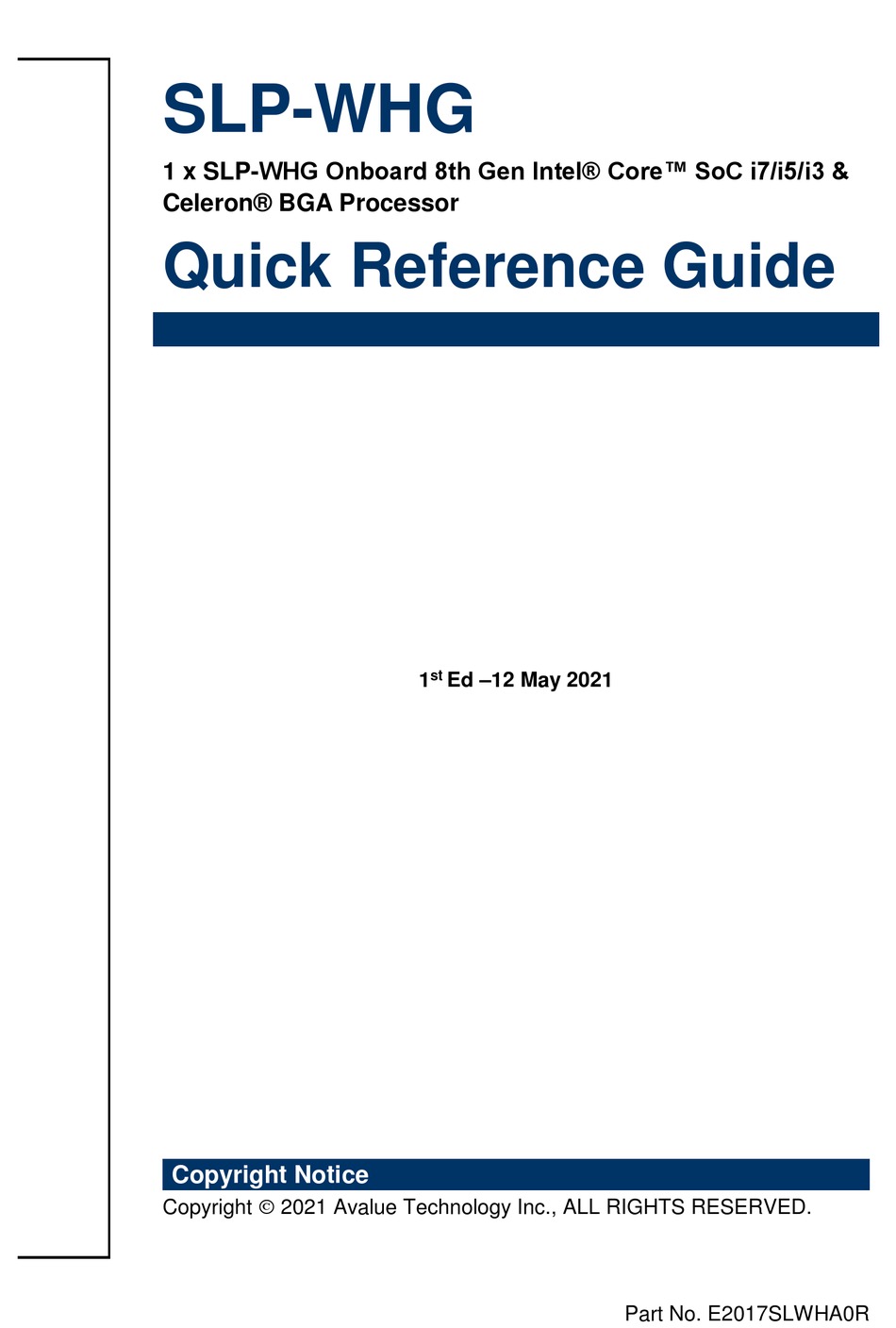

- Page 1 SLP-WHG 1 x SLP-WHG Onboard 8th Gen Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor Quick Reference Guide Ed –12 May 2021 Copyright Notice Copyright 2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017SLWHA0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 SLP-WHG Quick Reference Guide...
-
Page 3: Table Of Contents
System Overview ....................11 1.4.1 SLP-WHG Rear View ........................ 11 System Dimensions ..................... 12 1.5.1 SLP-WHG Front & Top view ..................... 12 Hardware Configuration ................... 13 SLP-WHG connector mapping ................14 2.1.1 Serial Port 1/2 connector (COM1/2) ..................14 2.1.2 Serial Port 3/4 connector (COM3/4) .................. - Page 4 3.6.2.6.1 Serial Port 1 Configuration ..........................52 3.6.2.6.2 Serial Port 2 Configuration ..........................52 3.6.2.6.3 Serial Port 3 Configuration ..........................53 3.6.2.6.4 Serial Port 4 Configuration ..........................54 3.6.2.6.5 Serial Port 5 Configuration ..........................54 4 SLP-WHG Quick Reference Guide...
- Page 5 Launch EFI Shell from filesystem device ......................79 4. Drivers Installation ....................... 80 Install Chipset Driver ................... 81 Install VGA Driver ....................82 Install ME Driver ....................83 Install Audio Driver (For Realtek ALC888S HD Audio) ........84 Install LAN Driver ....................85 SLP-WHG Quick Reference Guide...
- Page 6 SLP-WHG Install RST Driver ....................87 6 SLP-WHG Quick Reference Guide...
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SLP-WHG Onboard 8th Gen Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor Other major components include the following: ... -
Page 8: System Specifications
1 x PCIe*1 Mechanical Power Type AT/ATX Mode (Default: ATX mode) Power Connector Phoenix Connector Type or Mini Din Type DC in Type Dimension 217 (H)/ 115 (W) / 220(D) (mm) Weight 3.4kgs (unpacked) Color Black 8 SLP-WHG Quick Reference Guide... - Page 9 3. Duration Time：11ms Mechanical Shock 4. No. of Shock：Z axis 300 times Test 5. Test Axis: Z axis 6. Operation mode 7. Reference IEC 60068-2-29 Testing procedures Test Eb : Bump Test Drop Test Package drop test SLP-WHG Quick Reference Guide...
- Page 10 In case the condition, there are two solution, 1. Remove WiFi card, then install WinOS and connect WiFi card. 2. Disable WiFi PCIe port in BIOS, then install WinOS and enable PCIe Root Port of WiFi card in BIOS. 10 SLP-WHG Quick Reference Guide...
-
Page 11: System Overview
5 x 2 header, pitch 2.00mm PS/2 keyboard & mouse header 4 x 2 header, pitch 2.00mm KB&MS PWR1 Power connector 2 x 2 wafer, pitch 4.20mm PWR1 DC Input connector 3 x 1 wafer, pitch 5.08mm Power Button connector SLP-WHG Quick Reference Guide 11... -
Page 12: System Dimensions
SLP-WHG 1.5 System Dimensions 1.5.1 SLP-WHG Front & Top view (Unit: mm) 12 SLP-WHG Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Jumper and Connector Setting For advanced information, please refer to: 1- EMX-WHLGP User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw SLP-WHG Quick Reference Guide 13... -
Page 14: Slp-Whg Connector Mapping
Serial Port 1/2 connector (COM1/2) RS-232 RS-422 RS-485 DCD# TXD422- 485DATA- TXD422+ 485DATA+ RXD422+ DTR# RXD422- DSR# RTS# CTS# 2.1.2 Serial Port 3/4 connector (COM3/4) Signal PIN PIN Signal NRI# NCTS# NRTS# NDSR# NDTR# NTXD NRXD NDCD# 14 SLP-WHG Quick Reference Guide... -
Page 15: Emx-Whlgp Overviews
Quick Reference Guide 2.2 EMX-WHLGP Overviews 2.2.1 EMX-WHLGP SLP-WHG Quick Reference Guide 15... -
Page 16: Emx-Whlgp Jumper & Connector List
M.2 3042/2242/2260/2280 Key B Slot JLPC LPC connector 5 x 2 header, pitch 2.00mm DC Power-in connector DCIN1 PWR1 Power connector 2 x 2 wafer, pitch 4.20mm SATA1 is not functioning in SATA1 Serial ATA connector EMX-SKLGP-3855 SKU 16 SLP-WHG Quick Reference Guide... - Page 17 4 x 2 header, pitch 2.00mm BAT1 Battery connector 2 x 1 wafer, pitch 1.25mm JHT_LED LED Indicator for Heater 2 x 1 header, pitch 2.54mm JHT1/23/4/5/6 CPU Heatsink Heater Connector 2 x 1 header, pitch 2.00mm Gold Finger SLP-WHG Quick Reference Guide 17...
-
Page 18: Emx-Whlgp Setting Jumpers & Connectors
SLP-WHG 2.4 EMX-WHLGP Setting Jumpers & Connectors 1.4.1 Serial port 1/2 pin9 signal select (JCOM1-RI-RS485) Ring* +12V * Default 1.4.2 Serial port 1/2 pin9 signal select (JCOM2-RI-RS485) Ring* +12V * Default 18 SLP-WHG Quick Reference Guide... -
Page 19: Lvds Back Light Power Selection (Jsbkl1)
Quick Reference Guide 1.4.3 LVDS Back Light power selection (JSBKL1) PWM Mode* DC Mode * Default 1.4.4 AT/ATX Power Mode Select (JSATX1) ATX* * Default SLP-WHG Quick Reference Guide 19... -
Page 20: Clear Cmos (Jcoms1)
SLP-WHG 1.4.5 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 1.4.6 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLT_EN LVDS_BKLTCTL 20 SLP-WHG Quick Reference Guide... -
Page 21: Serial Port 1 Connector (Com1)
Serial port 1 connector (COM1) Signal PIN PIN Signal COM_DCD#_1 COM_RXD_1 COM_TXD_1 COM_DTR#_1 COM_DSR#_1 COM_RTS#_1 COM_CTS#_1 COM_R#_1_R 1.4.8 Serial port 2 connector (COM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_R#_2_R SLP-WHG Quick Reference Guide 21... -
Page 22: General Purpose I/O Connector (Dio1)
SLP-WHG 1.4.9 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK_S SMB_DATA_S 1.4.10 SPI connector (JSPI1) Signal Signal +3.3A_SPI SPI0_CS0# SPI_CLK SPI_SO SPI_SI HOLD# SPI_WP# 22 SLP-WHG Quick Reference Guide... -
Page 23: Serial Port 3-6 Connector (Com3-6)
PIN PIN Signal COM_R#_6 COM_CTS#_6 COM_RTS#_6 COM_DSR#_6 COM_DTR#_6 COM_TXD_6 COM_RXD_6 COM_DCD#_6 COM_R#_5 COM_CTS#_5 COM_RTS#_5 COM_DSR#_5 COM_DTR#_5 COM_TXD_5 COM_RXD_5 COM_DCD#_5 COM_R#_4 COM_CTS#_4 COM_RTS#_4 COM_DSR#_4 COM_DTR#_4 COM_TXD_4 COM_RXD_4 COM_DCD#_4 COM_R#_3 COM_CTS#_3 COM_RTS#_3 COM_DSR#_3 COM_DTR#_3 COM_TXD_3 COM_RXD_3 COM_DCD#_3 SLP-WHG Quick Reference Guide 23... -
Page 24: Sata Power Connector (Spwr1)
SLP-WHG 1.4.12 SATA Power connector (SPWR1) Signal +V5S_SATA1 +V12S_SATA1 1.4.13 CPU Fan connector (JFAN1) Signal +12V_FAN1 CPUFANIN FAN_PWM0 24 SLP-WHG Quick Reference Guide... -
Page 25: Usb Connector 1(Usb1)
Quick Reference Guide 1.4.14 USB connector 1(USB1) Signal Signal +V5A_HUB1-4 +V5A_HUB1-4 UHUB_DM1_R UHUB_DM2_R UHUB_DP1_R UHUB_DP2_R 1.4.15 USB connector 2(USB2) Signal Signal +V5A_HUB1-4 +V5A_HUB1-4 UHUB_DM3_R UHUB_DM4_R UHUB_DP3_R UHUB_DP4_R SLP-WHG Quick Reference Guide 25... -
Page 26: Lvds Connector (Lvds1)
LVDS connector (LVDS1) Signal PIN PIN Signal +5V_LVDS +3.3V_LVDS +5V_LVDS +3.3V_LVDS LVDS_DATA0_P LVDS_DATA1_P LVDS_DATA0_N LVDS_DATA1_N LVDS_DATA2_P LVDS_DATA3_P LVDS_DATA2_N LVDS_DATA3_N LVDS_DATA4_P LVDS_DATA5_P LVDS_DATA4_N LVDS_DATA5_N LVDS_DATA6_P LVDS_DATA7_P LVDS_DATA6_N LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_ CLK1_N LVDS_ CLK2_N +12V +12V 26 SLP-WHG Quick Reference Guide... -
Page 27: Front Audio Connector (Faud1)
Quick Reference Guide 1.4.17 Front Audio connector (FAUD1) Signal PIN PIN Signal GND_AUD MIC1_JD LINEOUT1_JD MIC1_LIN MIC1_RIN GND_AUD GND_AUD LINEOUT_L LINEOUT_R 1.4.18 EC Debug (JEC_DEBUG) Signal EC_SMCLK EC_SMDAT SLP-WHG Quick Reference Guide 27... -
Page 28: Battery Connector (Bat1)
SLP-WHG 1.4.19 Battery connector (BAT1) Signal +VRTCBAT 1.4.20 PS/2 keyboard & mouse header (KB/MS) Signal PIN PIN Signal KBDAT KBCLK MSDAT MSCLK 28 SLP-WHG Quick Reference Guide... -
Page 29: Miscellaneous Setting Connector 1 (Fpt1)
1.4.21 Miscellaneous setting connector 1 (FPT1) Signal PIN PIN Signal -PWR _BTN -Reset +PWR _BTN +Reset -PWR_LED -HD_LED +PWR_LED +HD_LED 1.4.22 Miscellaneous setting connector 2 (FPT2) Signal PIN PIN Signal Speaker+ BLK_VR(10K) BLK_UP BLK_DN Speaker- SLP-WHG Quick Reference Guide 29... -
Page 30: Led Indicator Connector 1 (Led1)
SLP-WHG 1.4.23 LED indicator connector 1 (LED1) Signal LAN1_ACT_P LAN1_ACT_N LAN1_100#_LED LAN1_1000#_LED 1.4.24 LED indicator connector 2 (LED2) Signal LAN2_ACT_P LAN2_ACT_N LAN2_100#_LED LAN2_1000#_LED 30 SLP-WHG Quick Reference Guide... -
Page 31: Led Indicator Connector 3 (Led3)
Quick Reference Guide 1.4.25 LED indicator connector 3 (LED3) Signal LAN3_ACT_P LAN3_ACT_N LAN3_100#_LED LAN3_1000#_LED 1.4.26 Speaker connector (SPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- SLP-WHG Quick Reference Guide 31... -
Page 32: Ji2C Connector (Ji2C1)
SLP-WHG 1.4.27 JI2C connector (JI2C1) Signal +3.3V INT_I2C0# I2C0_CLK I2C0_DATA 1.4.28 LPC connector (JLPC1) Signal PIN PIN Signal LPC_SERIRQ LPC_CLK LPC_AD3 LPC_FRAME# LPC_AD2 PCH_PLTRST# LPC_AD1 +3.3V LPC_AD0 32 SLP-WHG Quick Reference Guide... -
Page 33: Cpu Heatsink Heater Connector (Jht1/2/3/4/5/6)
Quick Reference Guide 1.4.29 CPU Heatsink Heater Connector (JHT1/2/3/4/5/6) JHT2 JHT1 JHT5 JHT6 Signal +12V 1.4.30 LED Indicator for Heater (JHT_LED1) Signal +12V SLP-WHG Quick Reference Guide 33... -
Page 34: Gold Finger (Gf)
B14 A14 CLK_GF_N5 PCIE_TXN13 B15 A15 B16 A16 PCIE_RXP13 B17 A17 PCIE_RXN13 B18 A18 PCIE_TXP14 B19 A19 PCIE_TXN14 B20 A20 B21 A21 PCIE_RXP14 B22 A22 PCIE_RXN14 PCIE_TXP15 B23 A23 PCIE_TXN15 B24 A24 B25 A25 PCIE_RXP15 34 SLP-WHG Quick Reference Guide... - Page 35 B36 A36 SATA_TXP_1_GF_L B37 A37 SATA_TXN_1_GF_L B38 A38 B39 A39 SATA_RXN_1_GF_L B40 A40 SATA_RXP_1_GF_L PCIE_GF_TXP9 B41 A41 PCIE_GF_TXN9 B42 A42 B43 A43 PCIE_GF_RXP9 B44 A44 PCIE_GF_RXN9 B45 A45 B46 A46 B47 A47 B48 A48 B49 A49 SLP-WHG Quick Reference Guide 35...
-
Page 36: Power Connector (Pwr1)
SLP-WHG 1.4.32 Power connector (PWR1) Signal Signal +VIN +VIN Note: VIN = 12~24V 36 SLP-WHG Quick Reference Guide... -
Page 37: Bios Setup
Quick Reference Guide 3.BIOS Setup SLP-WHG Quick Reference Guide 37... -
Page 38: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 38 SLP-WHG Quick Reference Guide... -
Page 39: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. SLP-WHG Quick Reference Guide 39... -
Page 40: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 40 SLP-WHG Quick Reference Guide... -
Page 41: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. SLP-WHG Quick Reference Guide 41... -
Page 42: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 42 SLP-WHG Quick Reference Guide... -
Page 43: Cpu Configuration
Options Description When enabled, a VMM can utilize the Intel (VMX) Virtualization Disabled, additional hardware capabilities provided by Technology Enabled[Default] Vanderpool Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. SLP-WHG Quick Reference Guide 43... -
Page 44: Power & Performance
Allows more than two frequency ranges to be Intel(R) SpeedStep(tm) Enabled[Default] supported. Enable/Disable Intel(R) Speed Shift Intel(R) Speed Shift Disabled, Technology support. Enabling will expose the CPPC v2 interface to allow for hardware Technology Enabled[Default] controlled P-states. 44 SLP-WHG Quick Reference Guide... -
Page 45: Config Tdp Configurations
This "BlOS only" feature does not Disabled[Default] require EC or driver support. Power Limit 1 in Milli Watts. BIOS will round to the nearest 1/8W when programming. 0 = no Power Limit 1 custom override. For 12.50W, enter 12500. Overclocking SLP-WHG Quick Reference Guide 45... - Page 46 (28 sec). Defines time window which TDP value should be maintained. Custom value for Turbo Activation Ratio. ConfigTDP Turbo Activation Needs to be configured with valid values from Ratio LFM to Max Turbo. 0 means don't use custom value. 46 SLP-WHG Quick Reference Guide...
-
Page 47: Gt - Power Management Control
Check to enable render standby support. Enabled[Default] Default Max Frequency[Default] 100Mhz 150Mhz 200Mhz 250Mhz 300Mhz 350Mhz 400Mhz 450Mhz 500Mhz 550Mhz Maximum GT frequency 600Mhz Auto Updated 650Mhz 700Mhz 750Mhz 800Mhz 850Mhz 900Mhz 950Mhz 1000Mhz 1050Mhz 1100Mhz 1150Mhz 1200Mhz SLP-WHG Quick Reference Guide 47... -
Page 48: Pch-Fw Configuration
Temporarily Disabled Mode. When disabled AMT BIOS Features are no Disabled, longer supported and user is no longer able to AMT BIOS Features Enabled[Default] access MEBx Setup. Note: This option does not disable Manageability Features in FW. 48 SLP-WHG Quick Reference Guide... -
Page 49: Firmware Update Configuration
Quick Reference Guide 3.6.2.3.1 Firmware Update Configuration Item Options Description Disabled[Default], Enable/Disable Me FW lmage Re-Flash Me FW Image Re-Flash Enabled function. 3.6.2.4 Trusted Computing SLP-WHG Quick Reference Guide 49... -
Page 50: Acpi Settings
Enable Hibernation Enabled[Default], may be not effective with some operating systems. Suspend Disabled, Select the highest ACPI sleep state the ACPI Sleep State S3 (Suspend to system will enter when the SUSPEND button RAM)[Default] is pressed. 50 SLP-WHG Quick Reference Guide... -
Page 51: It8528 Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). SLP-WHG Quick Reference Guide 51... -
Page 52: Serial Port 1 Configuration
3.6.2.6.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.6.2 Serial Port 2 Configuration 52 SLP-WHG Quick Reference Guide... -
Page 53: Serial Port 3 Configuration
Enabled[Default], UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.6.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], SLP-WHG Quick Reference Guide 53... -
Page 54: Serial Port 4 Configuration
3.6.2.6.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.6.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 54 SLP-WHG Quick Reference Guide... -
Page 55: Serial Port 6 Configuration
Quick Reference Guide 3.6.2.6.6 Serial Port 6 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.7 EC 8528 HW monitor SLP-WHG Quick Reference Guide 55... -
Page 56: Ec 8528 Hw Monitor-Note
Smart Fan Function Enabled or Disable Smart Fan Enabled For finished product package with heatsink and heater attached, item Heat Heat CPU when temp < 0 CPU when temp < 0 would be enabled as default. 56 SLP-WHG Quick Reference Guide... -
Page 57: S5 Rtc Wake Settings
Select Fixed Time, system will wake on Wake system from S5 Fixed Time the hr::min::sec specified. Select Dynamic Dynamic Time Time, System will wake on the current time + Increase minute(s) 3.6.2.9 Serial Port Console Redirection SLP-WHG Quick Reference Guide 57... -
Page 58: Legacy Serial Redirection Port
Console Redirection is disabled before booting to legacy OS. When Always Enable Always Enable[Default], Redirect After POST is selected, then Legacy Console BootLoader Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. 58 SLP-WHG Quick Reference Guide... -
Page 59: Usb Configuration
Auto[Default] Floppy enumerates devices according to their media JetFlashTranscend 8GB 1100 Forced FDD format. Optical drives are emulated as ‘CDROM’, drive with no media will be Hard Disk CD-ROM emulated according to a drive type. SLP-WHG Quick Reference Guide 59... -
Page 60: Nvme Controller And Drive Information
SLP-WHG 3.6.2.11 NVMe controller and Drive information 3.6.2.12 Network Stack Configuration 60 SLP-WHG Quick Reference Guide... -
Page 61: Chipset
Quick Reference Guide 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] SLP-WHG Quick Reference Guide 61... -
Page 62: Memory Configuration
1.25GB Maximum Value of TOLUD. Dynamic 1.5GB assignment would adjust TOLUD Max TOLUD 1.75 GB automatically based on largest MMIO length 2 GB of installed graphic controller 2.25 GB 2.5 GB 2.75 GB 3 GB 62 SLP-WHG Quick Reference Guide... -
Page 63: Graphics Configuration
Select the card used on the platform Auto : Auto[Default] Skip GPIO based Power Enable to dGPU Elk Select PCIE Card Elk Creek 4 Creek 4: DGPU Power Enable = ActiveLow PEG Eval PEG Eval : DGPU Power Enable = ActiveHigh SLP-WHG Quick Reference Guide 63... -
Page 64: Pch-Io Configuration
3.6.3.2 PCH-IO Configuration Item Option Description Enabled[Default] PCH LAN(I219) Controller Enable/Disable onboard NIC. Disabled 3.6.3.2.1 PCI Express Configuration Item Option Description PCIe-9 switch Lan3 or GF slot Lan3 [Default] Select PCle-9 as Lan3-1210 or GF PCle 64 SLP-WHG Quick Reference Guide... -
Page 65: Pcie Root Port 8(Lan2-I210)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 SLP-WHG Quick Reference Guide 65... -
Page 66: Pcie Root Port 9(Lan3-I210/Gf Slot)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 66 SLP-WHG Quick Reference Guide... -
Page 67: Pcie Root Port 10(M.2 Keya)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 SLP-WHG Quick Reference Guide 67... -
Page 68: Pcie Root Port 11(M.2 Keyb/Sata0)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 68 SLP-WHG Quick Reference Guide... -
Page 69: Pcie Root Port 13(Gp Pciex4)
L0s State AUTO - BIOS auto L0sL1 configure DISABLE - Disables ASPM. Auto, Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Configure PCIe speed. Gen2 Gen3 SLP-WHG Quick Reference Guide 69... -
Page 70: Sata And Rst Configuration
Slect SATA to MB or GF board Slect SATA to MB or GF board MB SATA Hard Disk Drive[Default] Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. 70 SLP-WHG Quick Reference Guide... -
Page 71: Hd Audio Configuration
3.6.3.2.3 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disabled Disabled = HDA will be unconditionally HD Audio Enabled[Default], disabled Enabled = HDA will be unconditionally enabled. 3.6.3.3 Board & Panel Configuration SLP-WHG Quick Reference Guide 71... - Page 72 Frequency Disabled[Default], ErP Function ErP Function (Deep S5). Enabled Off[Default], PWR-On After PWR-Fail AC Ioss resume. Last State Disabled[Default], 30 sec 40 sec Watch Dog 50 sec Select WatchDog 1 min 2 min 10 min 72 SLP-WHG Quick Reference Guide...
-
Page 73: Security
Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], Disabled Enabled/Disabled USB Standby Power USB Standby Power Enabled[Default], during S3/S4/S5 3.6.4 Security Administrator Password Set Administrator Password User Password Set User Password SLP-WHG Quick Reference Guide 73... -
Page 74: Secure Boot
System is in User mode. The mode change requires platform reset Secure Boot mode options: Standard or Standard Custom. In Custom mode, Secure Boot Policy Secure Boot Mode Custom[Default], variables can be configured by a physically present user without full authentication 74 SLP-WHG Quick Reference Guide... -
Page 75: Restore Factory Keys
Quick Reference Guide 4.6.4.1.1 Restore Factory Keys 4.6.4.1.2 Reset To Setup Mode SLP-WHG Quick Reference Guide 75... -
Page 76: Key Management
PE image into Authorized Signature Database (db) Device Guard ready system must not list 'Microsoft UEFI CA' Remove 'UEFI CA' from DB Certificate in Authorized Signature database (db) Restore DB defaults Restore DB variable to factory defaults 76 SLP-WHG Quick Reference Guide... -
Page 77: Boot
Bootup NumLock State Select the Keyboard NumLock state Off[Default] Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Sets the system boot order. Boot Option #2 Sets the system boot order. SLP-WHG Quick Reference Guide 77... -
Page 78: Save And Exit
SLP-WHG 3.6.6 Save and Exit 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Reset system setup without saving any changes. 78 SLP-WHG Quick Reference Guide... -
Page 79: Restore Defaults
Quick Reference Guide 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices. SLP-WHG Quick Reference Guide 79... -
Page 80: Drivers Installation
SLP-WHG 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 80 SLP-WHG Quick Reference Guide... -
Page 81: Install Chipset Driver
Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. SLP-WHG Quick Reference Guide 81... -
Page 82: Install Vga Driver
Windows 10 operation system. Step 3. Click Install. Step 1. Click Next to continue installation. Step 4. Click Next Step 2. Step 5. Click Finish to complete setup. Click Yes to accept license agreement. 82 SLP-WHG Quick Reference Guide... -
Page 83: Install Me Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 4. Click Finish to complete setup. Step 1. Click Next to continue setup. Step 2. Click Next. SLP-WHG Quick Reference Guide 83... -
Page 84: Install Audio Driver (For Realtek Alc888S Hd Audio)
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step1. Click Next to Install. Step 2. Click Finish to complete setup. 84 SLP-WHG Quick Reference Guide... -
Page 85: Install Lan Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Step 4. Click Next. Click Install Drivers and Software. Step 2. Click Next. Step 5. Click Install. SLP-WHG Quick Reference Guide 85... - Page 86 SLP-WHG Step 6. Click Finish to complete setup. 86 SLP-WHG Quick Reference Guide...
- Page 87 Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Next. SLP-WHG Quick Reference Guide 87...
- Page 88 SLP-WHG Step 6. Click Finish to complete setup. 88 SLP-WHG Quick Reference Guide...
