Summary of Contents for Avalue Technology EMS-SKLU

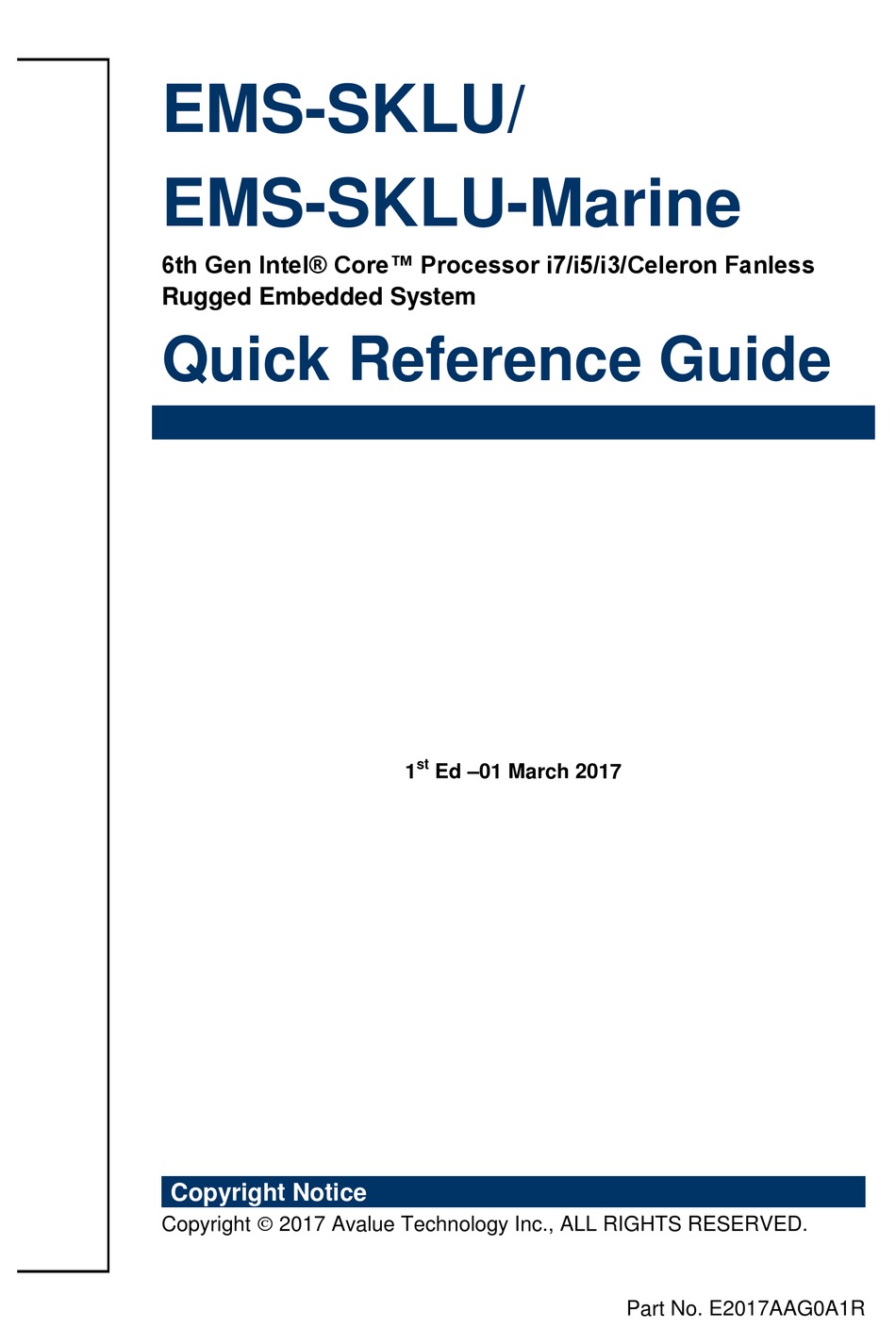

- Page 1 EMS-SKLU/ EMS-SKLU-Marine 6th Gen Intel® Core™ Processor i7/i5/i3/Celeron Fanless Rugged Embedded System Quick Reference Guide Ed –01 March 2017 Copyright Notice Copyright 2017 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017AAG0A1R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
-
Page 3: Table Of Contents
1.4.1 Front View ..........................11 1.4.2 Rear View ........................... 12 System Dimensions ..................... 13 1.5.1 EMS-SKLU Front & Top view ....................13 1.5.2 EMS-SKLU-Marine Front & Top view ..................14 Hardware Configuration ....................15 EMS-SKLU connector mapping ................16 2.1.1 Serial port connector 1 (COM1) .................... - Page 4 2.13.1 DC Input connector (DC-IN1) ....................47 2.13.2 DC Output connector (DC-OUT1) ..................47 2.14 Installing Hard Disk & Memory, PCI devices (EMS-SKLU) ........48 2.15 Installing Mounting Brackets (EMS-SKLU) ............49 3.BIOS Setup ........................50 Introduction ......................51 Starting Setup ...................... 51...
- Page 5 3.6.3.2.1.3 PCI Express Root Port5 (IET)....................73 3.6.3.2.1.4 PCI Express Root Port6 (IET)....................74 3.6.3.2.1.5 PCI Express Root Port7 (IET)....................75 3.6.3.2.1.6 PCI Express Root Port8 (IET)....................76 3.6.3.2.1.7 PCI Express Root Port12 (M.2) ....................77 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
- Page 6 Launch EFI Shell from filesystem device ..................84 4. Drivers Installation ......................85 Install Chipset Driver ................... 86 Install ME Driver ....................87 Install VGA Driver ....................88 Install Audio Driver (For Realtek ALC892) ............89 Install Ethernet Driver ..................90 6 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EMS-SKLU/EMS-SKLU-Marine 6th Gen Intel® Core™ Processor i7/i5/i3/Celeron Fanless Rugged Embedded System 1 x DVD-ROM contains the followings: ... -
Page 8: System Specifications
1 x Power LED (Green) 1 x Storage LED (Green) 1 x 3-Pin Terminal Block for DC-Input Rear Side External 2 x USB 3.0 I/O Connector 2 x USB 2.0 (EMS-SKLU-Marine) 8 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... - Page 9 1 x Intel I211AT GbE controller Chipset 1 x Intel I219LM Gigabit Ethernet PHY 10/100/1000 Base-Tx GbE compatible Ethernet Interface Audio Chipset Realtek ALC892 HD codec Audio Interface Mic-In, Line-In and Line-Out EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
- Page 10 Operating Temperature 0°C ~ 40°C (w/HDD) ambient w/ air flow Operating Humidity 5% ~ 90% relative humidity, non-condensing Storage -40°C ~ 85°C Temperature Note: Specifications are subject to change without notice. 10 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
-
Page 11: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Front View EMS-SKLU EMS-SKLU-Marine EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 11... -
Page 12: Rear View
DP connector RJ-45 Ethernet 1/2 LAN1/2 COM1 Serial port connector 1 Multi-Function Port combined COM2, Multi-function port 2 PS/2, Audio, GPIO and SMBus COM3/4/5/6 Serial port connector 3/4/5/6 (EMS-SKLU-Marine) support Isolation DC-IN DC power-in connector 12 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 13: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.5.1 EMS-SKLU Front & Top view (Unit: mm) EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 13... -
Page 14: Ems-Sklu-Marine Front & Top View
EMS-SKLU/EMS-SKLU-Marine 1.5.2 EMS-SKLU-Marine Front & Top view (Unit: mm) 14 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 15: Hardware Configuration
For advanced information, please refer to: 1- EBM-SKLUS, AUX-M01, AUX-M02, AUX-M03, AUX-M04, AUX-M07, EBM-BYTS DB-A, EBM-CDVS DB-A and EBM-CDVS DB-B included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 15... -
Page 16: Ems-Sklu Connector Mapping
EMS-SKLU/EMS-SKLU-Marine 2.1 EMS-SKLU connector mapping 2.1.1 Serial port connector 1 (COM1) RS-232 RS-485 RS-422 TXD-/RXD- TXD- TXD+/RXD+ TXD+ RXD+ RXD- 2.1.2 Serial port connector 3/4/5/6 (COM3/4/5/6) RS-232 RS-485 RS-422 TXD-/RXD- TXD- TXD+/RXD+ TXD+ RXD+ RXD- 16 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 17: Multi-Function Port Combined Com2, 2 Ps/2, Audio, Gpio And Smbus (Multi-Function Port)
Multi-Function Port combined COM2, 2 PS/2, Audio, GPIO and SMBus (Multi-function port) Signal Signal Signal LINE1_JD 16 FRONT_JD LINE1_RIN MIC1_JD LINEOUT_R MIC_RIN LINE1_LIN LINEOUT_L MIC_LIN SMB_CLK MSCK SMB_DATA NRIB# NRTSB# MSDA NCTSB# COM2_GND KBDA NDSRB# NTXDB_485RXP VCC_PS2 NDTRB#_485RXN 44 NDCDB#_485TXN KBCK NRXDB_485TXP EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 17... -
Page 18: Gpio+Smbus
EMS-SKLU/EMS-SKLU-Marine 2.1.3.1 GPIO+SMBUS Signal PIN PIN Signal SMBUS_DATA SMBUS_CLK GPI-D5 GPI-D4 GPO-D5 GPI-D3 GPO-D4 GPI-D2 GPO-D3 GPI-D1 GPO-D2 GPI-D0 GPO-D1 GPO-D0 2.1.3.2 COM2 Pin RS-232 RS-485 RS-422 TXD-/RXD- TXD- TXD+/RXD+ TXD+ RXD+ RXD- 18 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 19: Ebm-Sklus, Aux-M01, Aux-M02, Aux-M03, Aux-M04, Aux-M07, Ebm-Byts
Quick Reference Guide 2.2 EBM-SKLUS, AUX-M01, AUX-M02, AUX-M03, AUX-M04, AUX-M07, EBM-BYTS DB-A and EBM-CDVS DB-A Overviews 2.2.1 EBM-SKLUS EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 19... -
Page 20: Aux-M01
EMS-SKLU/EMS-SKLU-Marine 2.2.2 AUX-M01 2.2.3 AUX-M02 20 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 21: Aux-M03
Quick Reference Guide 2.2.4 AUX-M03 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 21... -
Page 22: Aux-M04
EMS-SKLU/EMS-SKLU-Marine 2.2.5 AUX-M04 2.2.6 AUX-M07 22 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 23: Ebm-Byts Db-A
Quick Reference Guide 2.2.7 EBM-BYTS DB-A 2.2.8 EBM-CDVS DB-A EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 23... -
Page 24: Ebm-Cdvs Db-B
EMS-SKLU/EMS-SKLU-Marine 2.2.9 EBM-CDVS DB-B 24 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 25: Ebm-Sklus Jumper & Connector List
SODDIM1 DDR4 SODIMM connector IET_CB1 IET Expansion slot LPC port connector 5 x 2 header, pitch 2.00 mm JLPC1 JSPI1 SPI connector 4 x 2 header, pitch 2.00 mm SATA1 Serial ATA connector DP connector EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 25... - Page 26 M.2 KEY-B 2242/3042 connector DCOUT1 DC Output connector 6 x 1 wafer, pitch 2.50 mm 1 x 3 terminal block, pitch 5.08 JVIN1 DC-Input connector JEC_ROM1 EC Debug connector 5 x 2 header, pitch 2.00 mm 26 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
-
Page 27: Ebm-Sklus Jumpers & Connectors Settings
2.4 EBM-SKLUS Jumpers & Connectors settings 2.4.1 Multi-function select (SW1) In Serial Port 1 mode RS-232 RS-422 RS-485 In Serial Port 2 mode RS-232 RS-422 RS-485 Power mode DDI1 mode DisplayPort HDMI DDI2 mode DisplayPort HDMI Cable select EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 27... -
Page 28: Com 1/2 Pin 9 Signal Select (Jri1/2)
EMS-SKLU/EMS-SKLU-Marine 2.4.2 COM 1/2 pin 9 signal select (JRI1/2) JRI1 Ring* JRI2 +12V * Default 2.4.3 Serial port 1/2 RS-232/422/485 mode select (JCOM_SEL1/2) RS-232* JCOM_SEL1 JCOM_SEL2 RS-422/ 485 *Default 28 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 29: Clear Cmos (Jcmos1)
Quick Reference Guide 2.4.4 Clear CMOS (JCMOS1) Normal* Clear CMOS *Default 2.4.5 LPC port connector (JLPC1) Signal PIN PIN Signal LPC_SERIRQ CLK_24M_PORT80 LPC_AD3 LPC_LFRAME# LPC_AD2 RST_PORT80# LPC_AD1 +3.3V LPC_AD0 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 29... -
Page 30: Spi Connector (Jspi1)
EMS-SKLU/EMS-SKLU-Marine 2.4.6 SPI connector (JSPI1) Signal Signal HOLD# SPI_SI SPI_SO SPI_CLK SPI0_CS0# +3.3VSB 2.4.7 Front Panel Connector (CN5) Signal PWRBTN_TO_EC# PM_SYSRST# +5VSB PWR_LED- 30 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 31: Dc Output Connector (Dcout1)
Quick Reference Guide 2.4.8 DC Output connector (DCOUT1) Signal +VIN +VIN +VIN 2.4.9 DC Input connector (JVIN1) Signal +DC_IN CHASSIS_GND EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 31... -
Page 32: Ec Debug Connector (Jec_Rom1)
EMS-SKLU/EMS-SKLU-Marine 2.4.10 EC Debug connector (JEC_ROM1) Signal Signal EC_SMDAT_DE EC_SMCLK_DE EC_HOLD# EC_FMOSI EC_FMISO EC_FSCK EC_FSCE# +VSPI_EC 2.4.11 On-board header for USB2.0 (USB2) Signal USB_z_PP2 USB_z_PN2 +5VSB 32 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 33: Power On/Off Connector (Pwrbtn1)
Quick Reference Guide 2.4.12 Power ON/OFF connector (PWRBTN1) Signal PWRBTN#_R EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 33... -
Page 34: Aux-M01, Aux-M02, Aux-M03, Aux-M04, Aux-M07, Ebm-Byts Db-A , Ebm-Cdvs Db-A And Ebm-Cdvs Db-B Jumper & Connector List
WUSB_REAR USB connector Serial port connector 3 & 7 COM3_7 Serial port connector 4 & 8 COM4_8 COM5_9 Serial port connector 5 & 9 COM6_10 Serial port connector 6 & 10 WMIOE_IO IET Expansion slot 34 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... - Page 35 HDMI1 HDMI connector 3 x 2 header, pitch 2.00mm Serial port 1/ 2 – RS485 mode select OJP485 6 x 2 header, pitch 2.00mm 2.5.7 EBM-CDVS DB-A Connectors Label Function Note USB1~2 USB connector 1~2 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 35...
- Page 36 5 x 1 wafer, pitch 2.00 mm DVI connector DVI1 2.5.8 EBM-CDVS DB-B Connectors Label Function Note DC-IN1 DC Input connector 6 x 1 wafer, pitch 2.50 mm DC-OUT1 DC Output connector 6 x 1 wafer, pitch 2.50 mm 36 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide...
-
Page 37: Aux-M01 Jumpers & Connectors Settings
Quick Reference Guide 2.6 AUX-M01 Jumpers & Connectors settings 2.6.1 COM 3/4/5/6 pin 9 signal select (JRI3/4/5/6) Ring* JRI6 JRI5 +12V JRI4 JRI3 * Default 2.6.2 USB connector (USB3) Signal PUSBP3 PUSBN3 PV5A_USB3 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 37... -
Page 38: Usb Connector (Jusb3)
EMS-SKLU/EMS-SKLU-Marine 2.6.3 USB connector (JUSB3) Signal PUSBP3 PUSBN3 PV5A_USB3 2.6.4 SMBUS of TCA9555 address setting (PJP1) Signal PIN PIN Signal MC_9555A0 MC_9555A1 MC_9555A2 38 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 39: Aux-M02 Connectors Settings
Z_LAN_LED_100#_3 Z_LAN_LED_100#_1 Z_LAN_LED_ACT_3 Z_LAN_LED_ACT_1 +3.3VSB +3.3VSB Z_LAN_LED_1000#_4 Z_LAN_LED_1000#_2 Z_LAN_LED_100#_4 Z_LAN_LED_100#_2 Z_LAN_LED_ACT_4 Z_LAN_LED_ACT_2 +3.3VSB +3.3VSB 2.7.2 Normal/Bypass mode LED (JLANMODE) Signal PIN PIN Signal Z_RC5_LAN23-STA Z_RC7_LAN45-STA Z_+VLED Z_+VLED Z_RA4_LAN23-BYP Z_RA1_LAN45-BYP Z_+VLED Z_+VLED Z_RC6_LAN23-NOR Z_RC4_LAN45-NOR Z_+VLED Z_+VLED EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 39... -
Page 40: Aux-M03 Connectors Settings
EMS-SKLU/EMS-SKLU-Marine 2.8 AUX-M03 Connectors settings 2.8.1 System reset (WCN1) Signal WSYSRST# 2.8.2 LPT Port (WJPRT1) Signal Signal LPT_SLCT LPT_[E LPT_BUSY LPT_ACK# LPT_SLIN# LPT_INIT# LPT_ERR# LPT_AFD# STB- 40 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 41: Aux-M04 Jumpers & Connectors Settings
Quick Reference Guide 2.9 AUX-M04 Jumpers & Connectors settings 2.9.1 Operating Modes select (ZJP1) Normal Auto* Reset * Default 2.9.2 Power connector (ZPWR1) Signal +V12-28V +V12-28V +V12-28V EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 41... -
Page 42: Lan Act/Lnk/Spd Led (Z_Jlanled)
EMS-SKLU/EMS-SKLU-Marine 2.9.3 LAN ACT/LNK/SPD LED (Z_JLANLED) Signal PIN PIN Signal Z_LAN_LED_1000#_3 15 16 Z_LAN_LED_1000#_1 Z_LAN_LED_100#_3 Z_LAN_LED_100#_1 Z_LAN_LED_ACT_3 Z_LAN_LED_ACT_1 +3.3VSB +3.3VSB Z_LAN_LED_1000#_4 Z_LAN_LED_1000#_2 Z_LAN_LED_100#_4 Z_LAN_LED_100#_2 Z_LAN_LED_ACT_4 Z_LAN_LED_ACT_2 +3.3VSB +3.3VSB 42 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 43: Aux-M07 Connector Settings
Quick Reference Guide 2.10 AUX-M07 Connector settings 2.10.1 SMBUS of TCA9555 address setting (SJP2) Signal PIN PIN Signal SMC_9555A0 SMC_9555A1 SMC_9555A2 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 43... -
Page 44: Ebm-Byts Db-A Jumpers & Connectors Settings
Auto Direction RTS# Control* 485TXP external OPEN* biasing resistor 485TXN external OPEN* biasing resistor In Serial Port 2 mode Auto Direction RTS# Control* 485TXP external 9-10 OPEN* biasing resistor 485TXN external 11-12 OPEN* biasing resistor 44 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 45: Smbus Of Tca9555 Address Setting (Ojp1)
Quick Reference Guide 2.11.3 SMBUS of TCA9555 address setting (OJP1) Signal PIN PIN Signal MC_9555A0 MC_9555A1 MC_9555A2 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 45... -
Page 46: Ebm-Cdvs Db-A Connector Settings
EMS-SKLU/EMS-SKLU-Marine 2.12 EBM-CDVS DB-A Connector settings 2.12.1 Front Panel Connector 1 (CN1) Signal SYSRST# SATA_LED# PWRSB_LED- 46 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 47: Ebm-Cdvs Db-B Connector Settings
Quick Reference Guide 2.13 EBM-CDVS DB-B Connector settings 2.13.1 DC Input connector (DC-IN1) Signal +PWRIN +PWRIN +PWRIN 2.13.2 DC Output connector (DC-OUT1) Signal +PWROUT +PWROUT +PWROUT EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 47... -
Page 48: Installing Hard Disk & Memory, Pci Devices (Ems-Sklu)
EMS-SKLU/EMS-SKLU-Marine 2.14 Installing Hard Disk & Memory, PCI devices (EMS-SKLU) Step 1. Remove 4 screws from the bottom of your system and take it off. Step 2. Slide the DDR4 SODIMM into the memory socket and press it down until properly seated. -
Page 49: Installing Mounting Brackets (Ems-Sklu)
Quick Reference Guide 2.15 Installing Mounting Brackets (EMS-SKLU) Step 1. Position brackets on both sides, matching the holes on the system. Step 2. Insert and fasten screw on each side of the system to secure Mounting brackets. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 49... -
Page 50: Bios Setup
EMS-SKLU/EMS-SKLU-Marine 3.BIOS Setup 50 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 51: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 51... -
Page 52: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 52 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 53: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 53... -
Page 54: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 54 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 55: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 55... -
Page 56: Trusted Computing
Enable or Disable Storage Hierarchy. Enabled[Default], Disabled Enable or Disable Endorsement Endorsement Hierarchy Enabled[Default], Hierarchy. Select the TCG2 Spec Version Support. 1.0[Default], 1.0: the Compatible mode for TPM2.0 UEFI Spec Version Win8/Win10, 1.x: For TCG2 newer spec for Win10. 56 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 57: Acpi Settings
ErP Function ErP Function (Deep S5). Enabled Off[Default] PWR-On After PWR-Fail AC loss resume. Last state Disabled[Default], 30 sec 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 57... -
Page 58: Amt Configuration
Extension. Note: iAMT H/W is always enabled. This option Intel AMT Enabled[Default], just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device. Disabled[Default] Un-Configure ME OEMFlag Bit 15: Un-Configure ME without password. Enabled, 58 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 59: Pch-Fw Configuration
GPDMA Work-Around[Default], Select the desired fTPM solution to be fTPM Switch Selection MSFT QFE Solution used. 3.6.2.4.1 Firmware Update Configuration Item Option Description Disabled [Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 59... -
Page 60: It8528 Super Io Configuration
Please refer to 3.6.2.5.1~ 3.6.2.5.2 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). 3.6.2.5.1 Serial Port 1 Configuration 60 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 61: Serial Port 2 Configuration
Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.5.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.6 EC 8528 H/W Monitor EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 61... -
Page 62: S5 Rtc Wake Settings
Fixed Time, system will wake on the hr::min::sec Wake system from S5 Fixed Time specified. Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). 3.6.2.8 Serial Port Console Redirection 62 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 63: Legacy Console Redirection Settings
Console Redirection Console Redirection Enable or Disable. Enabled 3.6.2.8.1 Legacy Console Redirection Settings Item Option Description Select a COM port to display redirection of Legacy Serial Redirection Port COM1[Default], Legacy OS and Legacy OPROM Messages. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 63... -
Page 64: Cpu Configuration
EMS-SKLU/EMS-SKLU-Marine 3.6.2.9 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 3.6.2.10 Intel TXT Information 64 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 65: Sata Configuration
Disabled state. Enabled[Default] Port 1/2 Enable or Disable SATA Port. Disabled, Hard Disk Drive [Default] Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 65... -
Page 66: Network Stack Configuration
EMS-SKLU/EMS-SKLU-Marine 3.6.2.12 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default], 3.6.2.13 CSM Configuration Item Options Description Enabled CSM Support Enable/Disable CSM Support. Disabled[Default] 66 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 67: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. Auto[Default] ‘Auto’ uses default value: for a Root port it is Device power-up delay Manual 100ms, for a Hub port the delay is taken form Hub descriptor. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 67... -
Page 68: Chipset
Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to d drive type. 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled 68 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 69: Graphics Configuration
Quick Reference Guide 3.6.3.1.1 Graphics Configuration 3.6.3.1.2 Memory Configuration Item Option Description Dynamic[Default] Maximum Value of TOLUD. Dynamic 1GB/1.25GB/1.5GB/1.75GB assignment would adjust TOLUD Max TOLUD /2GB/2.25GB/2.5GB/2.75GB automatically based on largest MMIO length /3GB/3.25GB of installed graphic controller. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 69... -
Page 70: Pch-Io Configuration
3.6.3.2 PCH-IO Configuration Item Option Description Disabled PCH LAN Controller Enable or disable onboard NIC. Enabled[Default] Disabled[Default] Enable/Disable LAN Phy driving LAN_WAKE# LAN PHY Drives LAN_WAKE# Enabled else platform drives LAN_WAKE#. 3.6.3.2.1 PCI Express Configuration 70 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 71: Pci Express Root Port2 (Mpcie)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 71... -
Page 72: Pci Express Root Port3 (I210/211)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 72 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 73: Pci Express Root Port5 (Iet)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 73... -
Page 74: Pci Express Root Port6 (Iet)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 74 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 75: Pci Express Root Port7 (Iet)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 75... -
Page 76: Pci Express Root Port8 (Iet)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 76 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 77: Pci Express Root Port12 (M.2)
L0s State AUTO – BIOS auto ASPM Support configure DISABLE – Disables ASPM. L0sL1 Auto Disabled L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2[Default], Auto[Default] Gen1 PCIe Speed Select PCI Express port speed. Gen2 Gen3 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 77... -
Page 78: Usb Configuration
Option to disable Compliance Mode. Default FALSE[Default], XHCI Disable Compliance Mode is FALSE to not disable Compliance Mode. TRUE Set TRUE to disable Compliance Mode. Disabled[Default] USB SS Physical Connector #2(M.2) Enable/Disable USB port. Enabled 78 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 79: Hd Audio Configuration
Control Detection of the HD-Audio device. Disable = HDA will Disabled be unconditionally disabled Enabled = HDA will be HD Audio Enabled unconditionally enabled Auto = HDA will be enabled if Auto[Default], present, disabled otherwise. 3.6.4 Security EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 79... -
Page 80: Secure Boot Menu
User mode with enrolled Platform Key(PK) Enabled 2.CSM function is disabled. Secure Boot mode selector. ‘Custom’ Mode Standard Secure Boot Mode enables users to change Image Execution policy Custom[Default] and manage Secure Boot Keys. 80 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 81: Key Management
Quick Reference Guide 3.6.4.1.1 Key Management Item Option Description Enabled, Install factory default Secure Boot Keys Provision Factory Default keys Disabled[Default] when System is in Setup Mode. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 81... -
Page 82: Boot
Enables or disables boot with initialization of a Disabled[Default] minimal set of devices required to launch Fast Boot Enabled active boot option. Has no effect for BBS boot options. Boot Option #1/2 Set the system boot order. 82 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 83: Save And Exit
Quick Reference Guide 3.6.6 Save and exit 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 83... -
Page 84: Discard Changes And Reset
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. 84 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 85: Drivers Installation
Quick Reference Guide 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 85... -
Page 86: Install Chipset Driver
If the warning message appears while the installation Step 3. Click Install. process, click Continue to go on. Step1. Click Next. Step 4. Click Restart Now/Restart Later to complete setup. Step 2. Click Accept. 86 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 87: Install Me Driver
Continue to go on. Step 3. Click Next to proceed setup. Step1. Click Next to start installation. Step 4. Click Finish to complete setup. Step 2. Click Next. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 87... -
Page 88: Install Vga Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Step 5. Click Finish to complete setup. Click Yes to accept license agreement. 88 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... -
Page 89: Install Audio Driver (For Realtek Alc892)
\Driver_Audio\Realtek\ALC892\EMS-SKLU_Audio. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 1. Click Next to continue setup. Step 2. Click Finish to complete the setup. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 89... -
Page 90: Install Ethernet Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software. Step 4. Click Next. Step 5. Click Install. Step 2. Click Next. 90 EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide... - Page 91 Quick Reference Guide Step 6. Click Finish to complete the setup. EMS-SKLU/EMS-SKLU-Marine Quick Reference Guide 91...
