Unmanaged Gigabit Ethernet Switch
ValueLine
IE-SW-VL08-GT series
(from product Rev. 1.5.0)
Hardware Installation Guide
Seventh Edition, June 2023
1243390000/06/07.23
Copyright Notice
Copyright  2023 Weidmüller Interface GmbH & Co. KG
All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ValueLine IE-SW-VL08-GT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Weidmüller ValueLine IE-SW-VL08-GT Series

Summary of Contents for Weidmüller ValueLine IE-SW-VL08-GT Series

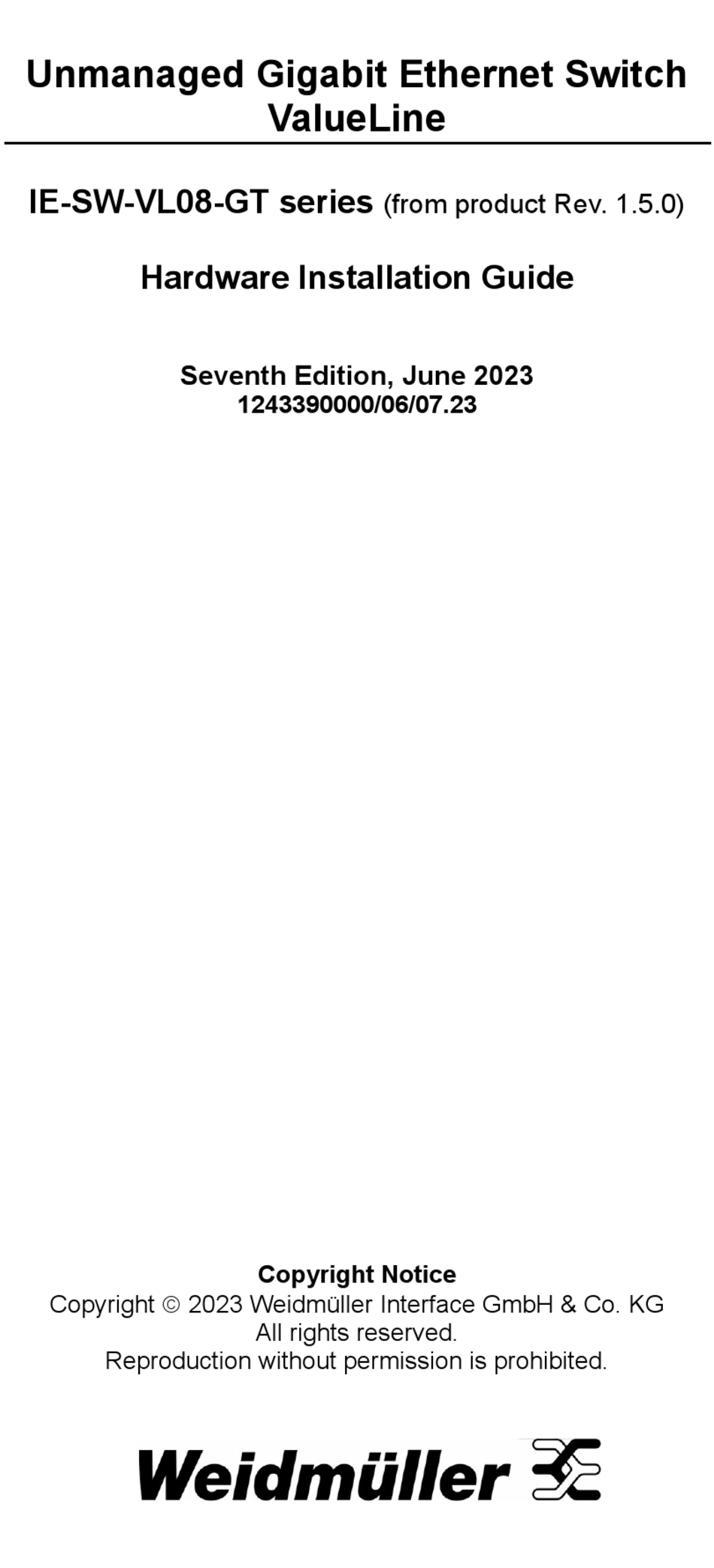

  • Page 1 Unmanaged Gigabit Ethernet Switch ValueLine IE-SW-VL08-GT series (from product Rev. 1.5.0) Hardware Installation Guide Seventh Edition, June 2023 1243390000/06/07.23 Copyright Notice Copyright  2023 Weidmüller Interface GmbH & Co. KG All rights reserved. Reproduction without permission is prohibited.

  • Page 2: Package Checklist

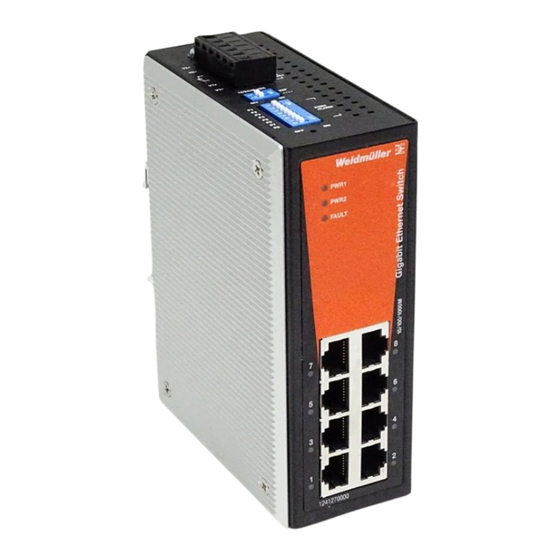

    Overview The IE-SW-VL08-GT series is equipped with 8 Gigabit Ethernet ports and up to 2 fiber optic ports, making it ideal for applications that demand high bandwidth. These Switch models provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts maintainers when power failures or port breaks occur.
  • Page 3 Panel Layout of IE-SW-VL08-GT Series 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. Power input PWR1 LED 4. Power input PWR2 LED 5. Fault LED 6. TP port’s 10/10/1000 Mbps LED 7. Port number 8.
  • Page 4 - 4 -...

  • Page 5: Din-Rail Mounting

    DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the Ethernet Switch when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below.

  • Page 6: Hazardous Location Information

    Hazardous Location Information Logo Model/Rating Model name Rated Supply Voltage and Current IE-SW-VL08-8GT 12-48 VDC, Class 2, Maximum 0.8 A IE-SW-VL08T-8GT IE-SW-VL08-6GT-2GS 12-48 VDC, Class 2, Maximum 0.9 A IE-SW-VL08T-6GT-2GS Relay Output: 24 VDC, 1 A, resistive load ATEX information II 3 G DEMKO 11 ATEX 150194X Ex ec nC IIC T4 Gc...

  • Page 7: Wiring Requirements

    Wiring Requirements WARNING Safety First! Turn the power off before disconnecting modules or wires. The proper power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. Do NOT use a voltage greater than what is specified on the product label.

  • Page 8: Wiring The Alarm Contact

    Wiring the Alarm Contact The Alarm Contact consists of the two middle contacts of the terminal block on the Ethernet Switch’s top panel. You may refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.

  • Page 9: Communication Connections

    ATTENTION Before connecting the Ethernet Switch to the DC power inputs, make sure the DC power source voltage is stable. We suggest using a copper conductor with the cable type - AWG 18-24 and the corresponding pin type cable terminals. In addition, the wire must be able to withstand at least 105°C.
  • Page 10 RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100/1000BaseSFP (mini-GBIC) Fiber Port The Fiber optic ports on the IE-SW-VL08-GT series are SFP type slots, which require 100M or 1G mini-GBIC fiber transceivers to work properly.

  • Page 11: Redundant Power Inputs

    LC-Port Pinouts LC-Port to LC-Port Cable Wiring ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Redundant Power Inputs Both power inputs can be connected simultaneously to live DC power sources.

  • Page 12: Led Indicators

    DIP Switch Setting Description Enables broadcast storm protection Disables broadcast storm protection Enables jumbo frame function Jumbo Frame Disables jumbo frame function Enables the energy-efficient Ethernet function 802.3az Disables the energy-efficient Ethernet function Enables the corresponding PORT Alarm. If the port’s link fails, the relay will form an open circuit and the fault LED will light up.

  • Page 13: Auto Mdi/Mdi-X Connection

    100/1000M SFP port’s 100 Mbps link is active. (SFP port) AMBER Blinking Data is being transmitted at 100 Mbps. SFP port’s 100 Mbps link is inactive. SFP port’s 1000 Mbps link is active. GREEN Blinking Data is being transmitted at 1000 Mbps. SFP port’s 1000 Mbps link is inactive.

  • Page 14: Specifications

    Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.3ab for 1000BaseT, IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet Flow Control IEEE 802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed Fiber Ports 100Base FX or 1000BaseX (SFP slot)

  • Page 15: Disposal Information

    Disposal Information Observe the notes for proper disposal of the product. You can find the notes here: www.weidmueller.com/disposal. Weidmüller gives a 5-year warranty on this product in accordance with the warranty terms as described in the general conditions of sale of the Weidmüller company which has sold the products to you.
