Gigabit Ethernet Switch – Basic Line
Hardware Installation Guide
Important note:
This document and additional product information can
be downloaded using following link:
http://www.weidmueller.com
► Select Product Catalogue
Select „Industrial Ethernet active"
Select „BasicLine unmanaged Switches "
Select the relevant product model
Click and expand section „Downloads"
Copyright 2016 Weidmüller Interface GmbH & Co. KG
Reproduction without permission is prohibited.
IE-SW-BL05-4GT-1GS
IE-SW-BL05T-4GT-1GS
First Edition, May 2016
2467470000/00/05.16
Download needed documentation
Copyright Notice
All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weidmüller IE-SW-BL05-4GT-1GS
Summary of Contents for Weidmüller IE-SW-BL05-4GT-1GS
- Page 1 Gigabit Ethernet Switch – Basic Line IE-SW-BL05-4GT-1GS IE-SW-BL05T-4GT-1GS Hardware Installation Guide First Edition, May 2016 2467470000/00/05.16 Important note: This document and additional product information can be downloaded using following link: http://www.weidmueller.com ► Select Product Catalogue Select „Industrial Ethernet active“...
-
Page 2: Package Checklist

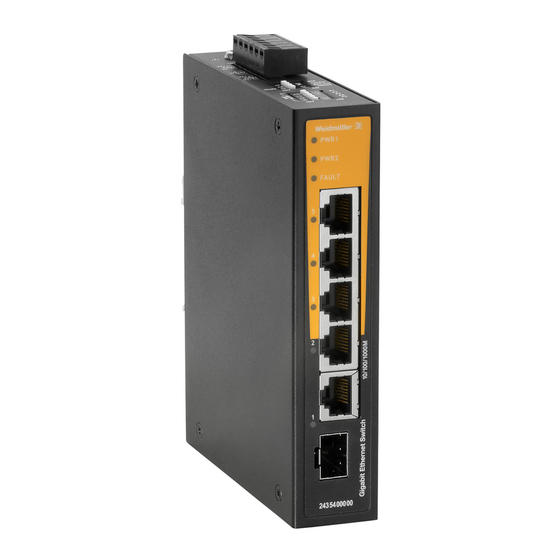

Overview The BasicLine Gigabit Ethernet Switches are equipped with 5 Gigabit Ethernet ports (4x 10/100/1000BaseT(X) ports and 1x combo 10/100/1000BaseT(X) or 100/1000BaseSFP port), making them ideal, economical solutions for demanding, high bandwidth Gigabit Ethernet applications. In addition, the built-in relay warning function alerts system administrators when power failures or port breaks occur, and the add-on 4-pin DIP switches can be used to configure broadcast storm protection, jumbo frame rate, IEEE 802.3az energy saving, and 100/1000 SFP... - Page 3 Panel Layout of IE-SW-BL05-4GT-1GS Terminal block for power input (PWR1, PWR2) and relay output PWR1: LED for power input 1 PWR2: LED for power input 2 FAULT: LED indicator 10/100/1000BaseT(X) LED indicator (Amber: 10/100M; Green: 1000M) Port number Ports 2 to 5: 10/100/1000...
-
Page 4: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) - 4 -... -
Page 5: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the Ethernet Switch when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 6: Wiring Requirements
STEP 3: Once the screws are fixed in the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the switch downwards, as indicated. Tighten the four screws for added stability. ATEX Information 1. -
Page 7: Wiring The Alarm Contact
WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. You should also pay attention to the following items: ... -
Page 8: Wiring The Redundant Power Inputs
FAULT: The two middle contacts of the 6-contact terminal block connector are used to detect both power faults and port faults. The two wires attached to the Fault contacts form an open circuit when: 1. Ethernet Switch has lost power from one of the DC power inputs. -
Page 9: Communication Connections
Communication Connections IE-SW-BL05(T)-4GT-1GS switches have 2 types of communication port: • 4 x 10/100/1000BaseT(X) Ethernet ports • 1 x Combo-port, usable as 10/100/1000T(X) or 100/1000BaseSFP port 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on switch’s front panel are used to connect to Ethernet-enabled devices. - Page 10 RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100/1000BaseSFP (mini-GBIC) Fiber Port One of the Gigabit Ethernet ports on the IE-SW-BL05(T)-4GT-1GS is a SFP slot, which requires 100M or 1G mini-GBIC fiber transceivers to work properly.
-
Page 11: Redundant Power Inputs
ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the laser beam. Redundant Power Inputs Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies all of the switch´s power needs. -
Page 12: Led Indicators
DIP Switch Setting Description Enables broadcast storm protection Disables broadcast storm protection Enables jumbo frame function Jumbo Frame Disables jumbo frame function Enables the energy-efficient Ethernet function 802.3az Disables the energy-efficient Ethernet function Supports 100M SFP module 100/1000BaseSFP Supports 1000M SFP module Enables the corresponding PORT Alarm. -
Page 13: Auto Mdi/Mdi-X Connection
Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect the Ethernet Switch 10/100/1000BaseT(X) ports to any kind of Ethernet device, without paying attention to the type of Ethernet cable being used for the connection. This means that you can use either a straight-through cable or cross-over cable to connect the Ethernet Switch to Ethernet devices. -
Page 14: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.3az for Energy-Efficient Ethernet Interface RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed, half/full duplex mode, and auto MDI/MDI-X connection Fiber Ports Optional 1000BaseSX/LX/LHX/ZX (LC... - Page 15 MTBF (meantime between failures) Time 2,823,446 hrs Database Telcordia (Bellcore), GB 25°C Warranty Time Period 5 years Weidmüller gives a 5 year warranty on this product in accordance with the warranty terms as described in the general conditions of sale of the Weidmüller company which has sold the products to you.
