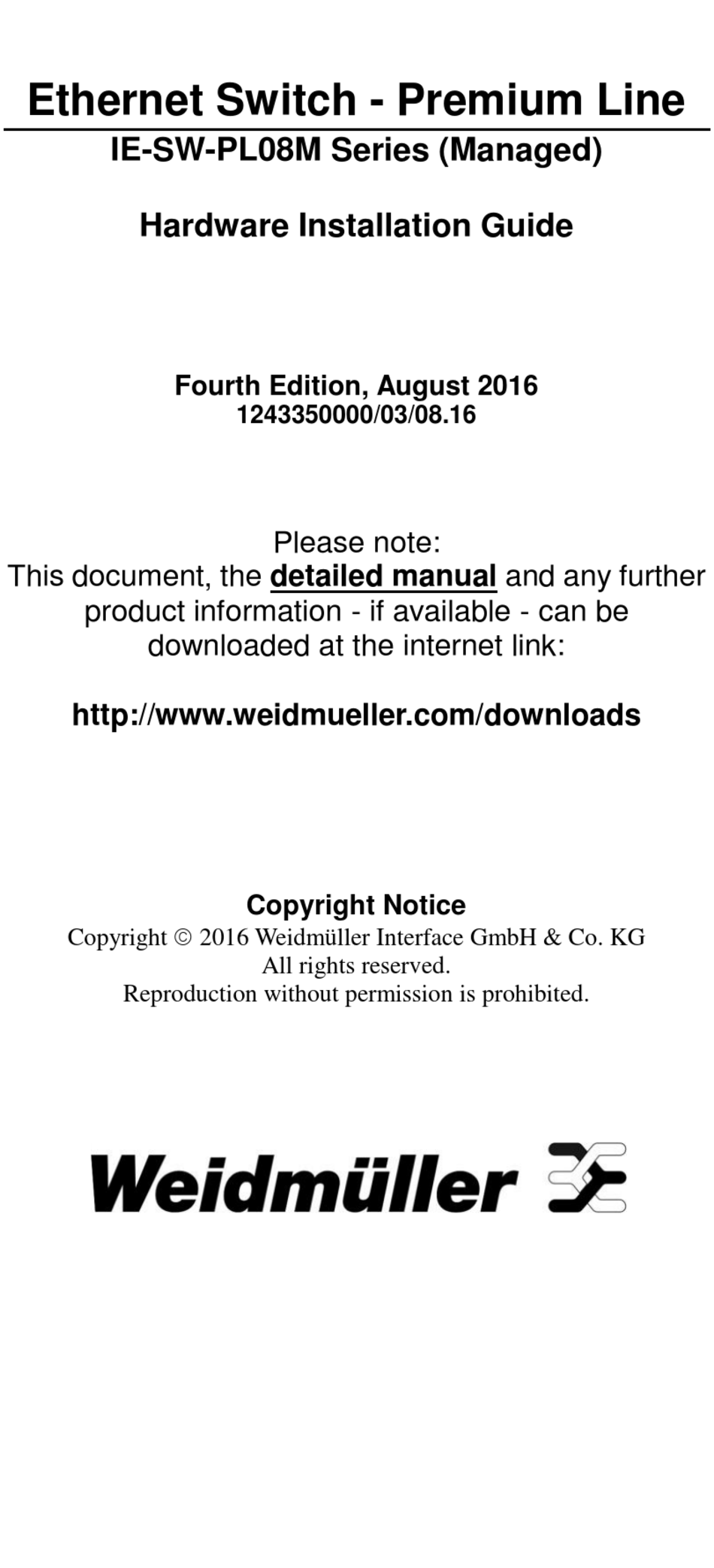

Ethernet Switch - Premium Line
IE-SW-PL08M Series (Managed)
Hardware Installation Guide
Fourth Edition, August 2016
1243350000/03/08.16
Please note:
This document, the detailed manual and any further
product information - if available - can be
downloaded at the internet link:
http://www.weidmueller.com/downloads
Copyright Notice
Copyright 2016 Weidmüller Interface GmbH & Co. KG
All rights reserved.
Reproduction without permission is prohibited.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weidmüller Premium Line IE-SW-PL08M Series
Summary of Contents for Weidmüller Premium Line IE-SW-PL08M Series
- Page 1 Ethernet Switch - Premium Line IE-SW-PL08M Series (Managed) Hardware Installation Guide Fourth Edition, August 2016 1243350000/03/08.16 Please note: This document, the detailed manual and any further product information - if available - can be downloaded at the internet link: http://www.weidmueller.com/downloads Copyright Notice Copyright ...
-
Page 2: Package Checklist
Package Checklist Your Ethernet switch is shipped with the following items. If any of these items is missing or damaged, please contact your Weidmüller customer service for assistance. 1 Ethernet Switch IE-SW-PL08M-Series Hardware Installation Guide CD-ROM with User’s Manual and Windows Utility (option) ... - Page 3 Panel Layout of IE-SW-PL08M-8TX Grounding screw IE-SW-PL08M-8TX Front Panel View Terminal block for power input PWR1/PWR2 and relay output Heat dissipation orifices Console port DIP switches Power input PWR1 LED Power input PWR2 LED Fault LED MSTR/HEAD: LED indicator CPLR/TAIL: LED indicator Label TP port’s 100 Mbps LED TP port’s 10 Mbps LED...

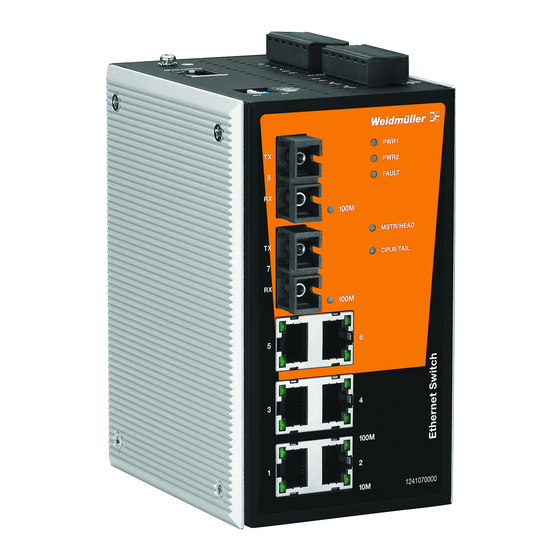

- Page 4 Panel Layouts of IE-SW-PL08M-6TX-2SC/2SCS and IE-SW-PL08M-6TX-2ST NOTE: IE-SW-PL08M-6TX-2SC Front Panel View The appearance of models IE-SW-PL08M-6TX-2SC, IE-SW-PL08M-6TX-2SCS and IE-SW-PL08M-6TX-2ST are - apart from the optical connectors - identical. Grounding screw Terminal block for power input PWR1/PWR2 and relay output Heat dissipation orifices Console port DIP switches Power input PWR1 LED...
-
Page 5: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the IE-SW-PL08M Series when you take it out of the box. STEP 1: STEP 2: Insert the top of the DIN-Rail into the The DIN-Rail attachment unit will slot just below the stiff metal spring. -
Page 6: Atex Information
ATEX Information 1. Certificate number DEMKO 11 ATEX 150189X 2. Ambient range (-40°C ≤ Tamb ≤ 75°C) 3. Certification string (Ex nA nC IIC T4 Gc) 4. Standards covered (EN 60079-0:2012+A11:2013, EN 60079-15:2010) 5. The conditions of safe usage: These products must be mounted in an IP54 enclosure. ... -
Page 7: Grounding The Ethernet Switch
Grounding the Ethernet Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. -
Page 8: Wiring The Digital Inputs
ATTENTION Before connecting the Ethernet Switch to the DC power inputs, make sure the DC power source voltage is stable. Wiring the Digital Inputs The IE-SW-PL08M unit has two sets of digital inputs, DI 1 and DI 2. Each DI consists of two contacts of the 6-pin terminal block connector on the Ethernet Switch top panel. - Page 9 NOTE The pin numbers for male DB9 and DB25 connectors, and hole numbers for female DB9 and DB25 connectors are labeled on the connector. However, the numbers are typically quite small, so you may need to use a magnifying glass to see the numbers clearly.
-
Page 10: 10/100Baset(X) Ethernet Port Connection
10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on Ethernet Switch’s front panel are used to connect to Ethernet-enabled devices. Next, we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables. -
Page 11: 100Basefx Ethernet Port Connection
100BaseFX Ethernet Port Connection Remember to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. ATTENTION ST-Port Pinouts SC-Port Pinouts This is a Class 1 Laser/LED... -
Page 12: Led Indicators
OFF: This OFF: Do not use OFF: DIP Ethernet Switch this Ethernet switches 1, 2, 3 will not be the Switch as the ring will be disabled. Ring Master. coupler. “Turbo Ring V2” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables the... - Page 13 When the switch is set as the Master of the Turbo Ring, or as the Head of the Turbo Chain. The switch has become the Ring Master of the Turbo Ring, or the Head of the Blinking MSTR/HEAD GREEN Turbo Chain, after the Turbo Ring or the Turbo Chain is down.
-
Page 14: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.3x for Flow Control, IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP Protocols... - Page 15 a. using [50/125 μm, 800 MHz*km] cable b. using [62.5/125 μm, 500 MHz*km] cable c. using [9/125 μm, 3.5 PS/(nm*km)] cable Power Input Voltage 12 to 45 VDC, redundant inputs Input Current (@24V) IE-SW-PL08M-8TX: Max. 0.26A IE-SW-PL08M-6TX-2SC/ST/SCS: Max. 0.36A Connection Two removable 6-pin terminal blocks Overload Current Present...
- Page 16 Weidmüller gives a 5 year warranty on this product in accordance with the warranty terms as described in the general conditions of sale of the Weidmüller company which has sold the products to you. Weidmüller warrants to you that such products the defects of which have already existed at the time when the risk passed will be repaired by Weidmüller free of charge or that Weidmüller will provide a new, functionally equivalent product to replace the defective one.
