- Page 1 PSEN cs2.1n PSEN sensor technology Operating Manual-1003294-EN-06...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
..................Teaching in the actuator ....................... Installation ..........................Adjustment ..........................Operation ..........................Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Supplementary data ......................Radio approval.......................... Order reference ........................System ............................Accessories ..........................Operating Manual PSEN cs2.1n 1003294-EN-06... - Page 4 Contents EC declaration of conformity ....................UKCA-Declaration of Conformity ..................Operating Manual PSEN cs2.1n 1003294-EN-06...
-
Page 5: Introduction
PSEN cs2.1n Introduction Validity of documentation This documentation is valid for the product PSEN cs2.1n. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 6: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN cs2.1n 1003294-EN-06... -
Page 7: Safety Regulations
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN cs2.1n 1003294-EN-06... -
Page 8: For Your Safety

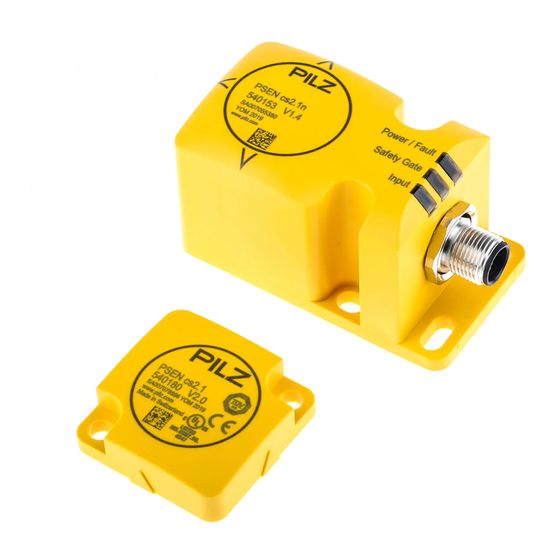

Do not remove the connector's protective cap until you are just about to connect the unit. This will prevent potential contamination. Unit features Transponder technology for presence detection Pilz coding type: fully coded Dual-channel operation 2 safety outputs LED display for: –... -
Page 9: Function Description
High High Block diagram A1 A2 Receiver Actuator Power 12 22 Operating distances Legend: Assured operating distance: 15 mm Typical operating distance: 21 mm Typical release distance: 32 mm Assured release distance: 40 mm Operating Manual PSEN cs2.1n 1003294-EN-06... -
Page 10: Lateral And Vertical Offset
The outputs of the safety switch must have a protective separation to voltages over 60 V The supply voltage to the safety switch must be protected with a 2 A to 4 A quick-acting fuse. Ensure the wiring and EMC requirements of EN 60204-1 are met. Operating Manual PSEN cs2.1n | 10 1003294-EN-06... -
Page 11: Pin Assignment, Connector And Cable
Black Do not connect Grey The wire colour also applies for the cable available from Pilz as an accessory. Connection to evaluation devices Make sure that the selected evaluation device has the following property: OSSD signals are evaluated through 2 channels with plausibility monitoring... - Page 12 PSEN cs2.1n Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring PNOZsigma for safety gate monitoring PNOZ X for safety gate monitoring PNOZmulti for safety gate monitoring Configure the switch in the PNOZmulti Configurator with switch type 3.
-
Page 13: Teaching In The Actuator
Make sure that the safety switch and actuator cannot be used as an end stop. Please note the installation measures in accordance with EN ISO 14119 for a safety switch design 4 and with level of coding High. Operating Manual PSEN cs2.1n | 13 1003294-EN-06... - Page 14 Make sure that the actuator with the printed side points towards the marking on the sensor. 5. Do not fully tighten the second screw on the actuator. 6. Align the safety switch and tighten the screws. 7. Align the actuator and tighten the screws. Operating Manual PSEN cs2.1n | 14 1003294-EN-06...
-
Page 15: Adjustment
"POWER/Fault" LED lights up green: The unit is ready for operation "Safety Gate" LED lights up yellow: Actuator is within the response range Fault indicator: "POWER/Fault" LED lights up red: Error message. Remedy: Rectify fault and interrupt power supply. Operating Manual PSEN cs2.1n | 15 1003294-EN-06... -
Page 16: Dimensions In Mm
15 mW Electrical data Supply voltage Voltage 24 V Kind Voltage tolerance -20 %/+20 % Output of external power supply (DC) Max. inrush current at UB 0,12 A Max. switching frequency 3 Hz Operating Manual PSEN cs2.1n | 16 1003294-EN-06... - Page 17 In accordance with the standard EN 60068-2-78 Humidity 93 % r. h. at 40 °C EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 Frequency 10 - 55 Hz Amplitude 1 mm Operating Manual PSEN cs2.1n | 17 1003294-EN-06...
- Page 18 Height 11 mm Width 40 mm Depth 40 mm Weight of safety switch 130 g Weight of actuator 20 g Weight 150 g Where standards are undated, the 2016-10 latest editions shall apply. Operating Manual PSEN cs2.1n | 18 1003294-EN-06...
-
Page 19: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSEN cs2.1n | 19 1003294-EN-06... -
Page 20: Supplementary Data
2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 21: Accessories
20 m 630298 30 m 630297 PSEN cable M12-5af Angled, M12, 5-pin, socket Open cable 630347 630348 10 m 630349 30 m 630350 PDP67 F 8DI ION Decentralised input module IP67 for PNOZmulti 773600 Operating Manual PSEN cs2.1n | 21 1003294-EN-06... - Page 22 European Parliament and of the Council. 2006/42/EC on machines 2014/53/EC on radio equipment The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany...
- Page 23 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
