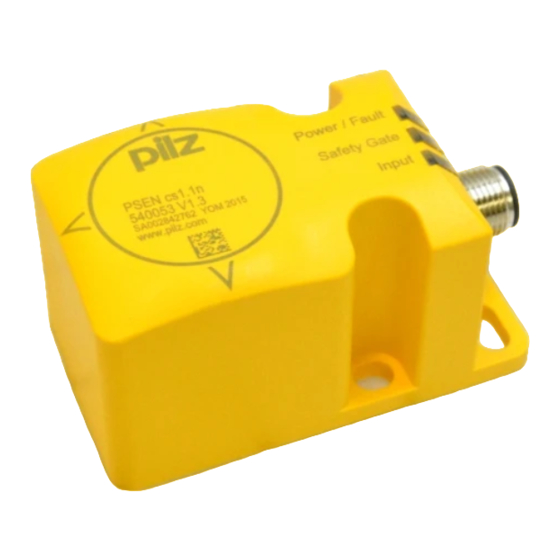

PSEN cs1.1n
PSEN sensor technology
}
Operating Manual-22178-EN-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSEN cs1.1n and is the answer not in the manual?

Questions and answers

Summary of Contents for Pilz PSEN cs1.1n

  • Page 1 PSEN cs1.1n PSEN sensor technology Operating Manual-22178-EN-05...
  • Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
  • Page 3: Table Of Contents

    Connection to evaluation devices Teaching in the actuator Installation Adjustment Operation Error display through flashing codes Dimensions in mm Technical details Safety characteristic data Supplementary data Radio approval Order reference System Accessories EC declaration of conformity Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 4: Introduction

    PSEN cs1.1n Introduction Validity of documentation This documentation is valid for the product PSEN cs1.1n. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
  • Page 5: Safety

    Safety regulations Safety assessment Before using a unit it is necessary to perform a safety assessment in accordance with the Machinery Directive. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 6: Use Of Qualified Personnel

    In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 7: For Your Safety

    The safety outputs may have a high or low signal, depending on the position of the actu- ator. In a safe condition there is a low signal at the safety outputs. State of the outputs: Actuator in the response range Safety output 12 Safety output 22 High High Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 8: Block Diagram

    PSEN cs1.1n Block diagram A1 A2 Receiver Actuator Power 12 22 Operating distances Legend: Assured operating distance: 15 mm Typical operating distance: 21 mm Typical release distance: 32 mm Assured release distance: 40 mm Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 9: Lateral And Vertical Offset

    The power supply must meet the regulations for extra low voltages with protective sep- aration (SELV, PELV). The inputs and outputs of the safety switch must have a protective separation to voltages over 60 VDC. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 10: Pin Assignment, Connector And Cable

    Black Do not connect Grey The wire colour also applies for the cable available from Pilz as an accessory. Connection to evaluation devices Make sure that the selected evaluation device has the following property: OSSD signals are evaluated through 2 channels with feasibility monitoring...
  • Page 11 PSEN cs1.1n Connection diagram, single connection Actuator Receiver Evaluation device Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring PNOZsigma for safety gate monitoring PNOZ X for safety gate monitoring PNOZmulti for safety gate monitoring Configure the switch in the PNOZmulti Configurator with switch type 3.
  • Page 12: Teaching In The Actuator

    Legend: Input OSSD Input OSSD Teaching in the actuator Any Pilz actuator PSEN cs1.1) is detected as soon as it is brought into the response range. Installation CAUTION! The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material.
  • Page 13 Fig.: Sensing faces on the sensor 1. Drill holes (for M5 screws) in the mounting surface to secure the actuator and sensor (see Dimensions in mm [ 16]). 2. Use a screw to fix the sensor to the mounting surface. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 14: Adjustment

    Remedy: Rectify fault and interrupt power supply. Error display through flashing codes The "Safety Gate" and "Input" LEDs send flash signals; an error code can be established from the number and sequence. The "Power/Fault" LED illuminates red. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 15 3x short – 14x long – 3x Wiring error Rectify wiring error short 3x short – 15x long – 3x Wiring error Rectify wiring error short Other flashing codes signal an internal error. Remedy: Change device. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 16: Dimensions In Mm

    Max. transmitter output 7 dBm Electrical data Supply voltage Voltage 24 V Kind -20 %/+20 % Voltage tolerance Output of external power supply (DC) Max. inrush current at UB 0,12 A 3 Hz Max. switching frequency Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 17 93 % r. h. at 40 °C EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 10 - 55 Hz Frequency Amplitude 1 mm Shock stress EN 60947-5-2 In accordance with the standard Acceleration 11 ms Duration Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 18 Actuator dimensions Height 11 mm Width 40 mm Depth 40 mm 130 g Weight of safety switch Weight of actuator 20 g Weight 150 g Where standards are undated, the 2016-10 latest editions shall apply. Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 19: Safety Characteristic Data

    2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 20: Order Reference

    380 213 10 m 380 214 30 m 380 215 PSEN cable M12-5sf Straight, M12, 5-pin, socket Open cable 630 310 630 311 10 m 630 312 20 m 630 298 30 m 630 297 Operating Manual PSEN cs1.1n 22178-EN-05...
  • Page 21: Ec Declaration Of Conformity

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN cs1.1n...
  • Page 22 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
