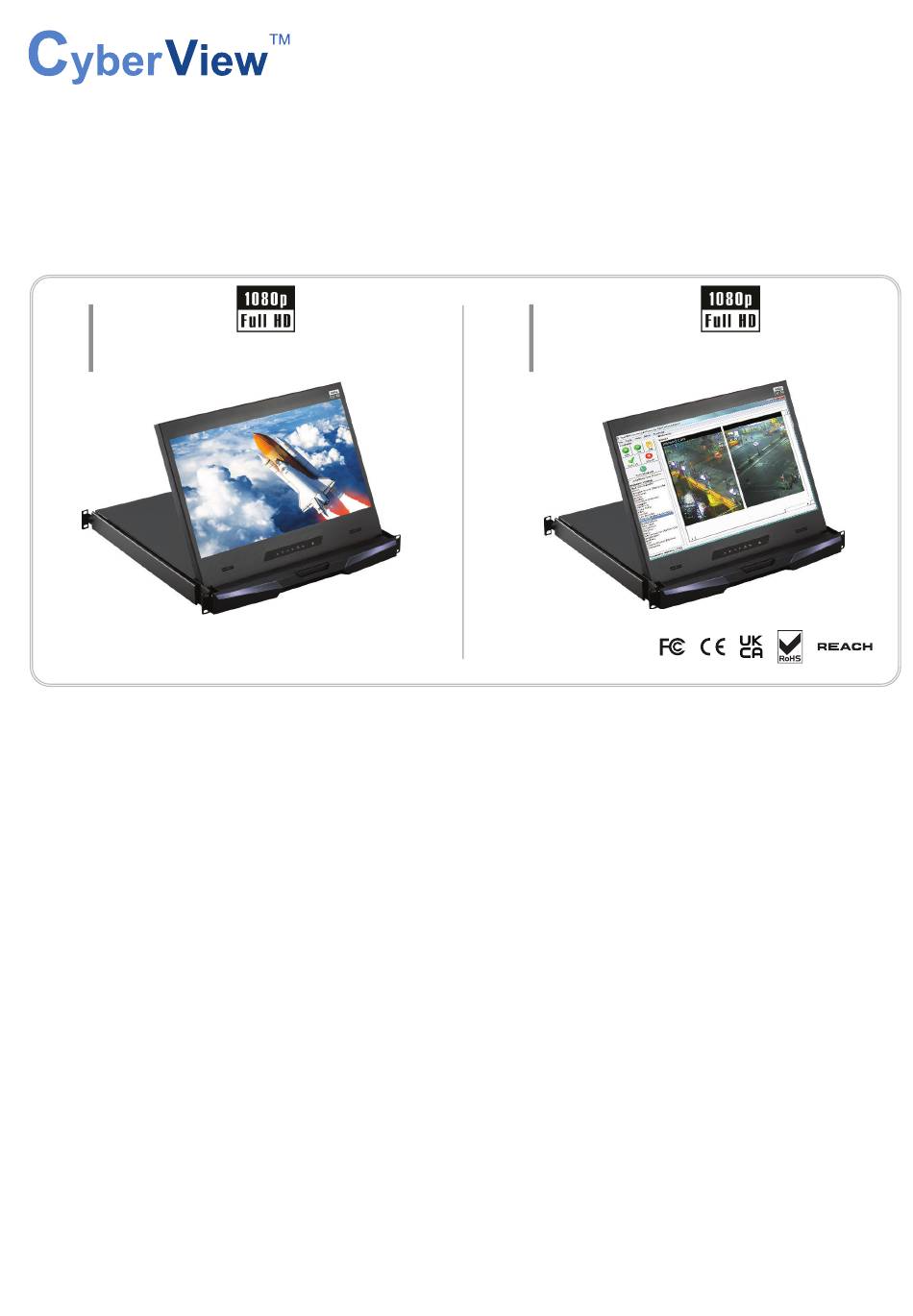

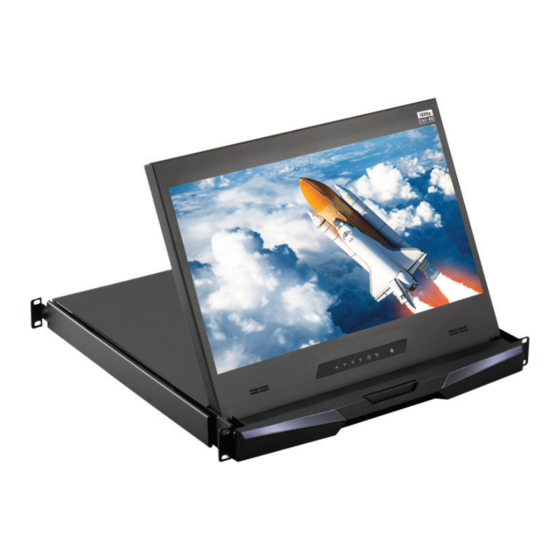

- Page 1 KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD RP-F117 RP-F1417 1920 x 1080 native resolution 1920 x 1080 native resolution Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-RP-F117-Q323V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-F117 / RP-F1417 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cation On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.12 Speaker, Display port, DVI-D, BNC P.13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Rp-F117 / Rp-F1417
< Part 1 > RP-F117 / RP-F1417 < 1.1 > Package Content RP-F117 unit X 1 RP-F1417 unit X 1 - 6ft VGA cable X 1 - 6ft VGA cable X 1 - Power cord X 1 - 2.5A Power adapter & Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - RP-F117 Front View Rear View Power HDMI UNIT : mm Side View 1mm = 0.03937 inch Top View RP-F117 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm...
- Page 7 < 1.2 > Dimension - RP-F1417 Front View Rear View HDMI Power VGA UNIT : mm Side View 1mm = 0.03937 inch Top View RP-F1417 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm 588 x 758 x 120 mm...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 Intentionally Left Blank UM-CV-751-RP-F117-Q323V1 www.austin-hughes.com...
-
Page 10: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit... - Page 11 RP-F117 RP-F1417 Physical Specifi cation Product ( W x D x H ) 441.6 x 480 x 44 mm 442 x 400 x 44 mm 17.4 x 18.9 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H ) 588 x 758 x 120 mm 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch...
- Page 12 Intentionally Left Blank UM-CV-751-RP-F117-Q323V1 www.austin-hughes.com...
-
Page 13: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 14 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
- Page 15 < 2.2 > On-screen Display Operation ( OSD ) OSD Set Language : Select the language in which the OSD menu is displayed - English OSD H-Position : Align the screen image left or right OSD V-Position : Align the screen image up or down OSD time out : Adjust the screen timeout OSD transparency : Adjust the screen transparency...
- Page 16 < Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 17 < 3.2 > Options : Speaker, DP, DVI-D, BNC Speaker Option speaker RP-F117 RP-F1417 speaker speaker speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 ) - Speaker RP-F117 AC Input 100~240V RP-F1417 +12 VDC UM-CV-751-RP-F117-Q323V1 P.13 www.austin-hughes.com...
- Page 18 < 3.3 > Display port, HDMI, BNC, Audio DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output *RP-F117 only - Speaker RP-F117 Audio Audio AC Input 100~240V RP-F1417 +12 VDC BNC Option - BNC ( Composite, BNC ) - Audio IN - Speaker...
- Page 19 < 3.4 > Options : Touchscreen & driver Projected Capacitive 10-pt Touch screen Specifi cation RP-F117 / RP-F1417 Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 20 < 3.3 > Options : Touchscreen & driver USB Touchscreen RP-F117 AC Input 100~240V USB Touchscreen RP-F1417 +12 VDC TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 21 < 3.5 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
- Page 22 < 3.6 > RP-F1417 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 23 Intentionally Left Blank UM-CV-751-RP-F117-Q323V1 www.austin-hughes.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-F117-Q323V1 P.20...
