dedicated KVM switch and rackmount screen technology
User Manual

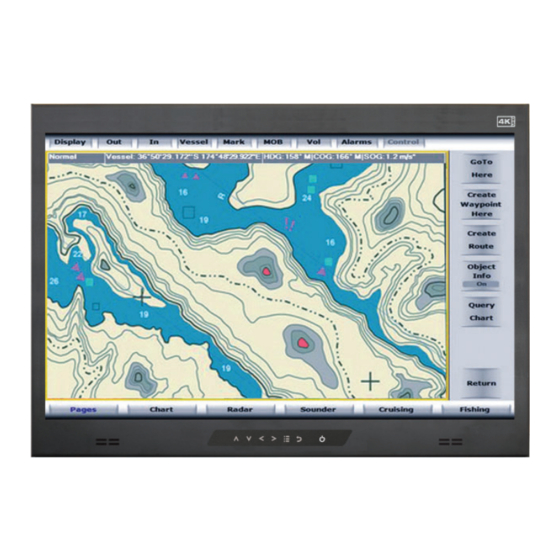

23" 4K 3840 x 2160@60Hz LCD
RP-K923
9U Rackmount Display Panel
Options :
- SDI / MCS
- Touchscreen / DC power
- MIL-type or lockable connector
751
Designed and manufactured by Austin Hughes
UM-CV-751-RP-K923-Q123V1
www.austin-hughes.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Austin Hughes CyberView RP-K923
Summary of Contents for Austin Hughes CyberView RP-K923
- Page 1 KVM switch and rackmount screen technology User Manual 23” 4K 3840 x 2160@60Hz LCD RP-K923 9U Rackmount Display Panel Options : - SDI / MCS - Touchscreen / DC power - MIL-type or lockable connector Designed and manufactured by Austin Hughes UM-CV-751-RP-K923-Q123V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-RP-K923-Q123V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, January 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > RP-K923 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.11 < Part. 3 > Option 12G / 4K60 / SD-SDI Broadcast-grade input P.13... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Rp-K923
< Part 1 > < 1.1 > Package Content RP-K923 unit X 1 - 6ft DP cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 7 < 1.2 > Dimension RP-K923 Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 551 x 65 x 385 mm 645 x 155 x 530 mm 8.8 kg 11.2 kg...
-
Page 8: Installation
< 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-K923-Q123V1 www.austin-hughes.com... - Page 9 < 1.3 > Rear Mounting Bracket Installation RP-K923 RP-K923 Step ■ Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RP-K923 display panel into the rear bracket.
-
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Native Resolution 3840 x 2160@60Hz Panel Panel Size ( diagonal ) 23.8-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) Dot pitch ( mm ) - Page 11 RP-K923 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 480 x 48 x 266 mm Specifi...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 13 Intentionally Left Blank UM-CV-751-RP-K923-Q123V1 www.austin-hughes.com...
- Page 14 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 15 < 2.2 > On-screen Display Operation ( OSD ) RP-K923 Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 16: Osd
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 17 RP-K923 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
- Page 18 < 3.1 > Options : 12G / 4K60 / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 19 < 3.2 > Options : 3G / HD / SD-SDI input RP-K923 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 20 ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 21 < 3.4 > Options : Touchscreen & driver RP-K923 K23" USB Touchscreen Specifi cation Model K23TPC-10 Multi-touch e-Resistive Technology Projected Capacitive 5-Wire Resistive 10 point touch standard Touch Point Single ( special requirement available ) Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096...
- Page 22 < 3.4 > Options : Touchscreen & driver K23TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 23 < 3.5 > Options : DC Power RP-K923 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
-
Page 24: Mil-Type Or Lockable Connector
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. P.19 UM-CV-751-RP-K923-Q123V1...
