User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HW719-Q221V1
All manuals and user guides at all-guides.com
dedicated KVM switch and rackmount screen technology

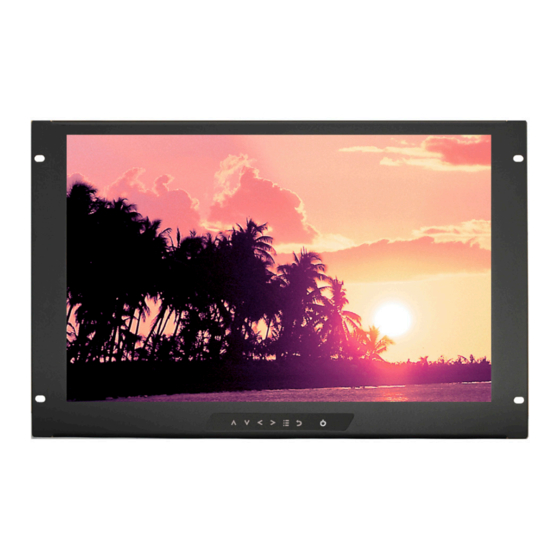

19" Widescreen High Brightness LCD 1000 cd/m²
RP-HW719
7U Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Austin Hughes CyberView RP-HW719
Summary of Contents for Austin Hughes CyberView RP-HW719
- Page 1 19” Widescreen High Brightness LCD 1000 cd/m² RP-HW719 7U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector Designed and manufactured by Austin Hughes UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 2 All manuals and user guides at all-guides.com Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Contents < Part. 1 > RP-HW719 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... - Page 4 All manuals and user guides at all-guides.com Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
-
Page 5: Part. 1 > Rp-Hw719
All manuals and user guides at all-guides.com < Part 1 > < 1.1 > Package Content RP-HW719 RP-HW719 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 All manuals and user guides at all-guides.com < 1.2 > Dimension Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 480 x 58 x 310 mm 529 x 124 x 495 mm...
-
Page 7: Installation
All manuals and user guides at all-guides.com < 1.3 > Installation RP-HW719 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■... -
Page 8: Product Specifications
All manuals and user guides at all-guides.com < Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) 1000 Contrast Ratio ( typ. - Page 9 All manuals and user guides at all-guides.com RP-HW719 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical...
-
Page 10: On-Screen Display Operation ( Osd )
All manuals and user guides at all-guides.com < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 11 All manuals and user guides at all-guides.com < 2.2 > On-screen Display Operation ( OSD ) RP-HW719 OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio:...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 13 ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the...
- Page 14 All manuals and user guides at all-guides.com < 3.3 > AV2.2D Upgrade Options : - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in &...
- Page 15 All manuals and user guides at all-guides.com < 3.5 > AV3.0 Upgrade Options : RP-HW719 - HDMI ( HDMI 1.3, CEA-861-D - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in &...
- Page 16 All manuals and user guides at all-guides.com < 3.6 > Options : Touchscreen & driver W19" USB Touchscreen Specification Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤...
- Page 17 All manuals and user guides at all-guides.com < 3.7 > Options : DC Power RP-HW719 Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 35 mA...
- Page 18 All manuals and user guides at all-guides.com < 3.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most...
- Page 19 All manuals and user guides at all-guides.com Intentionally Left Blank UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
