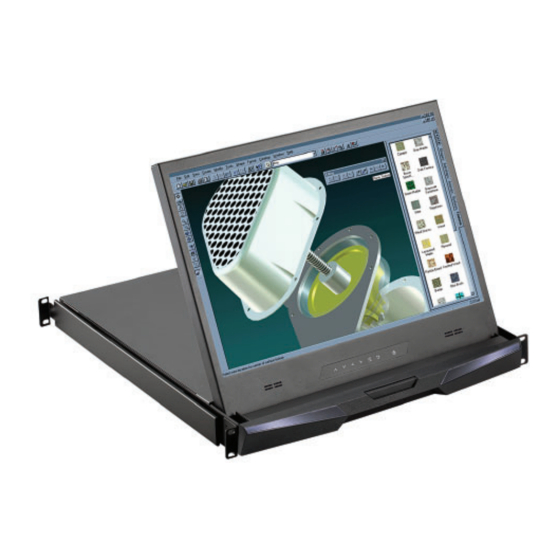

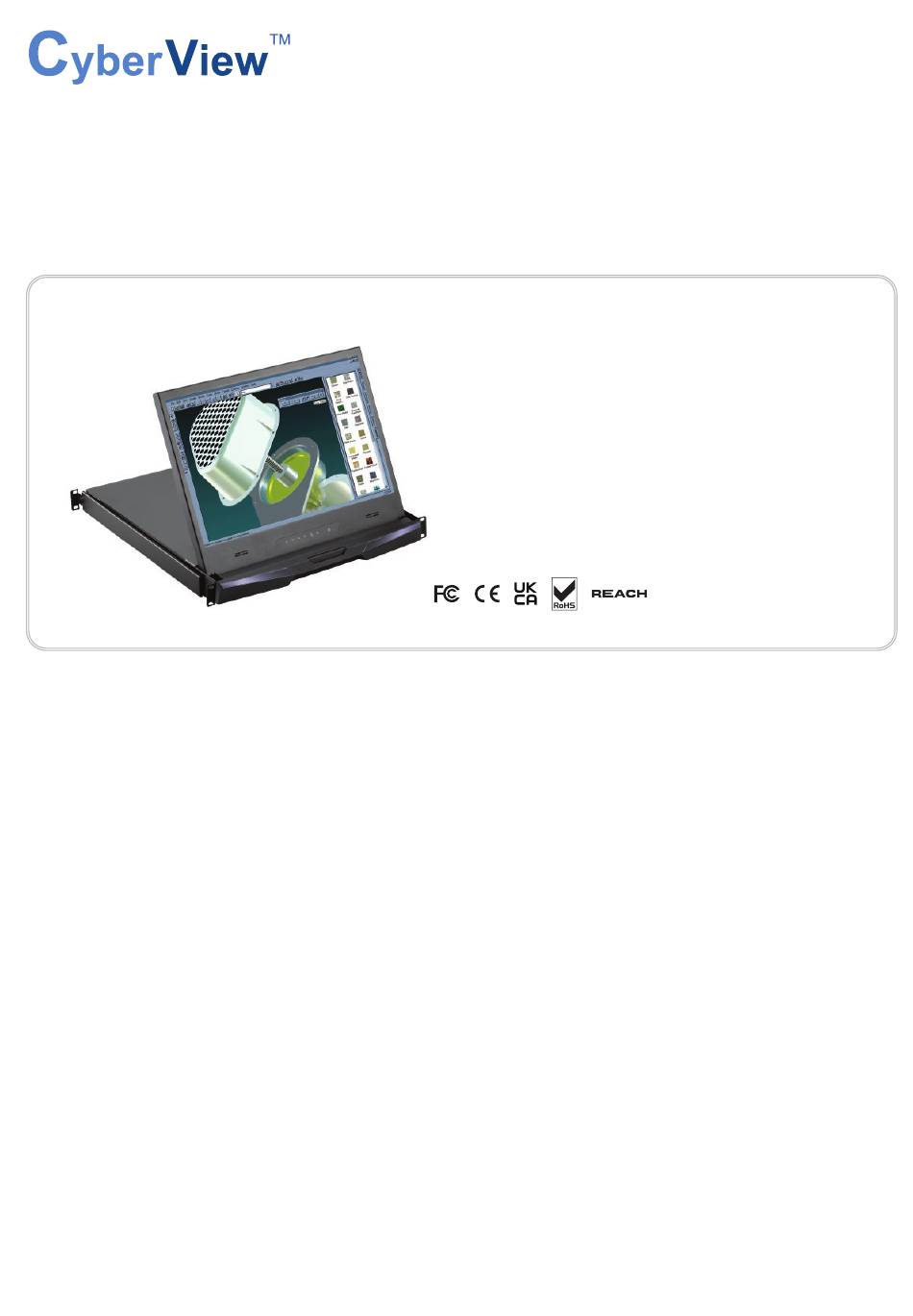

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 RP-W119 1U LCD Drawer Options : - SDI - AV / HDMI / Audio - BNC - Touchscreen / DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-W119-Q322V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-W119 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input AV4.4, HDMI, S-Video + BNC, Audio Touchscreen : Resistive ( 1-point touch ) P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Rp-W119
< Part 1 > RP-W119 < 1.1 > Package Content RP-W119 RP-W119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). It varies with options such as SDI, HDMI, AV, audio &... - Page 6 < 1.2 > Dimension Front View Rear View DVI-D Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 460 x 44 mm 588 x 758 x 120 mm 13 kg...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides RP-W119 Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 8: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 9 RP-W119 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm Specifi...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-W119 Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
-
Page 12: Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 13: Av4.4, Hdmi, S-Video + Bnc, Audio
< 3.2 > AV4.4, HDMI, S-Video + BNC, Audio RP-W119 AV4.4 Option - HDMI ( HDMI 1.4, HDCP 1.4 ) - Audio ( Audio input & output ) BNC Option - BNC ( S-Video + Composite, BNC ) - Audio ( Audio input &... - Page 14 < 3.3 > Touchscreen & driver Resistive 1-pt Touch screen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 15 < 3.4 > Options : DC Power RP-W119 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. P.12 UM-CV-751-RP-W119-Q322V1...
