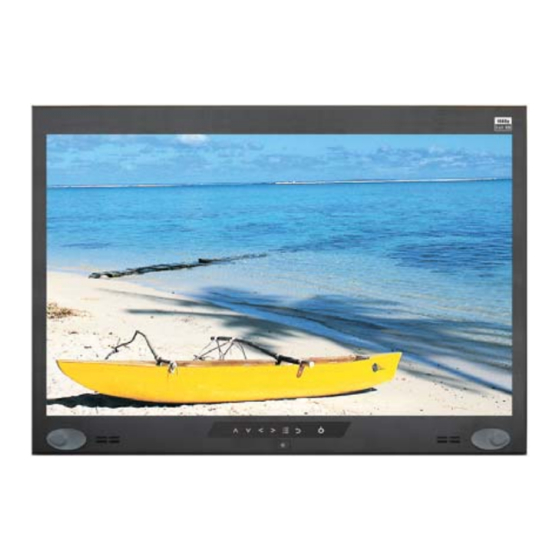

Austin Hughes Cyber View RP-F821TV User Manual

21.5” fhd 1920 x 1080 lcd 8u rackmount display panel w/ digital tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated KVM switch and rackmount screen technology

User Manual

21.5" FHD 1920 x 1080 LCD
RP-F821TV
8U Rackmount Display Panel
w/ Digital TV
751
Designed and manufactured by Austin Hughes
UM-CV-751-RP-F821TV-Q215V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyber View RP-F821TV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes Cyber View RP-F821TV

Summary of Contents for Austin Hughes Cyber View RP-F821TV

  • Page 1: User Manual

    KVM switch and rackmount screen technology User Manual 21.5” FHD 1920 x 1080 LCD RP-F821TV 8U Rackmount Display Panel w/ Digital TV Designed and manufactured by Austin Hughes UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 3 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 4: Table Of Contents

    Contents < Part. 1 > RP-F821TV Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 LCD Specifi cations / OSD < Part. 2 > Product Specifi cations P.5 - 6 On-screen Display Operation ( OSD ) <...

  • Page 5: Before Installation

    fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 6: Part. 1 > Rp-F821Tv

    < Part 1 > < 1.1 > Package Content RP-F821TV unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram...
  • Page 7 < 1.2 > Dimension RP-F821TV Front View Side View UNIT : mm 1mm = 0.03937 inch Rear View Bottom View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 501.9 x 64 x 353 mm 555 x 124 x 537 mm 10.3 kg...

  • Page 8: Installation

    < 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 9 Push the lower part of the RP-F821 display panel into the rear bracket. Step ■ Fix the RP-F821TV display panel into the rear bracket with two fasteners ( Left & right side ). Fastener screw ■ Lock the RP-F821TV display panel by the latch ( on the bottom left &...

  • Page 10: Product Specifi Cations

    Auto-sensing 100 to 240VAC, Power 50 / 60Hz Power Consumption Screen display ON 32W or less Power saving mode 4W or less Power button OFF 1W or less Safety FCC & CE certifi ed Regulatory Environmental RoHS2 & REACH compliant UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 11 RP-F821TV Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) 501.9 x 64 x 353 mm Physical Specifi...

  • Page 12: On-Screen Display Operation ( Osd )

    fl ash continuously when there is no signal input. All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 13: Remote Controller

    < Part 3 > Digital TV - ATSC < 3.1 > Remote Controller RP-F821TV UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 14 Show the EPG when watching channel FREEZE key to hold the picture PAUSE [ Reserved for future use ] SUBPAGE [ Reserved for future use ] SIZE [ Reserved for future use ] REVEAL [ Reserved for future use ] SUBTITLE UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 15: On-Screen Display Operation ( Osd )

    < 3.2 > On-screen Display Operation ( OSD ) RP-F821TV Press MENU key to display menu or close the current menu and open the previous menu. And press LEFT / RIGHT to select sub menu. Press ENTER key to sub menu.
  • Page 16 ■ Press UP / DOWN keys to choose the channel which you want to select. ■ Press ENTER key to select the channel if in the channel list. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.11 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 17: Picture Menu

    RP-F821TV < 3.2.2 > Picture Menu Enter Picture Menu, you can select Picture Mode, Color Mode, Zoom Mode, 3DNR, Backlight, DLC and Color Range items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.
  • Page 18 < 3.2.2.3 > Zoom Mode Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.13 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 19 RP-F821TV < 3.2.2.4 > Backlight Menu ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 20 ■ Press ENTER key for a moment to restore the window. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. Power off both the computer and the TV set before making any connection. P.15 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 21: Audio Menu

    RP-F821TV < 3.2.3 > Audio Menu Enter Audio menu, you can select Equalizer Standard, MTS, Audio Language, SPDIF Type, Surround Sound, Audio Only and AVC items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.
  • Page 22 < 3.2.3.3 > Audio Language Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.17 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 23 RP-F821TV < 3.2.4 > Timer Menu Enter Time menu, you can select Sleep Timer, Time Zone, DST, Time Format, Auto Sync, Clock, Wake Up, 3D Type 2D, 3D Detect and 3D_LR items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.

  • Page 24: Time Menu

    ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.19 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 25 RP-F821TV < 3.2.4.4 > Wake Up Menu ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.

  • Page 26: Setup Menu

    < 3.2.5.1 > Menu Language Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.21 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 27 RP-F821TV < 3.2.5.2 > Transparent Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 28 ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.23 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 29 RP-F821TV < 3.2.5.5 > Restore Default Menu ■ Press ENTER key to enter the restore menu. ■ Press LEFT / RIGHT keys to select yes or no. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 30 ■ Press LEFT / RIGHT keys to change the value. ■ Press ENTER key to enter the sub-menu or set the select. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.25 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...

  • Page 31: Lock Menu

    RP-F821TV < 3.2.6 > Lock Menu Followed by the Lock Menu, Enter Password, Change Password, System Lock, Input Block, US, Canada, RRT Setting and Reset RRT are the items, which can be selected by pressing UP / DOWN keys. RRT Setting and Reset RRT are only available in DTV when the program has RRT.
  • Page 32 < 3.2.6.3 > US Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to enter the sub-menu. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.27 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 33 RP-F821TV < 3.2.6.3.1 > TV Rating Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set the select. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 34 ■ Press UP / DOWN and LEFT / RIGHT keys to select different setting. ■ Press ENTER key to set the select. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.29 UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
  • Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com...
