User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-X924-Q218V1
dedicated KVM switch and rackmount screen technology

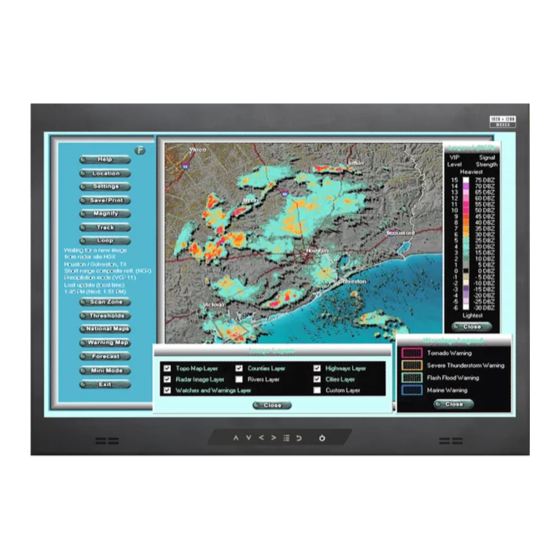

24" WUXGA 1920 x 1200 LCD
RP-X924
9U Rackmount Display Panel
Options :
- SDI / MCS
- Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Table of Contents
Related Manuals for Austin Hughes CyberView RP-X924
Summary of Contents for Austin Hughes CyberView RP-X924
-
Page 1: User Manual
KVM switch and rackmount screen technology User Manual 24” WUXGA 1920 x 1200 LCD RP-X924 9U Rackmount Display Panel Options : - SDI / MCS - Audio - Touchscreen / DC power - MIL-type or lockable connector Designed and manufactured by Austin Hughes UM-CV-751-RP-X924-Q218V1 www.austin-hughes.com... -
Page 2: Legal Information
Legal Information First English printing, January 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > RP-X924 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.9 - 10... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Rp-X924
< Part 1 > < 1.1 > Package Content RP-X924 RP-X924 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 < 1.2 > Dimension Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 553 x 70 x 385 mm 583 x 124 x 529 mm 11.4 kg 12.7 kg...
-
Page 7: Installation
< 1.3 > VESA mount Installation RP-X924 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-X924-Q218V1 www.austin-hughes.com... - Page 8 < 1.3 > Rear Mounting Bracket Installation Step ■ Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RP-X924 display panel into the rear bracket.
-
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RP-X924 Panel Size ( diagonal ) 24.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 10 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 553 x 70 x 385 mm Specifi...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-X924 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / RP-X924 Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 14 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
- Page 15 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input RP-X924 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 16: Part. 3 > Options
( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi... -
Page 17: Audio
< 3.3 > Options : Audio RP-X924 - Audio ( Built-in Dual Stereo Speakers, 10W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio DVI-D Power HDMI out - in - in Video PC P.13 UM-CV-751-RP-X924-Q218V1 www.austin-hughes.com... - Page 18 < 3.4 > Options : Touchscreen & driver X24" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 19 < 3.4 > Options : Touchscreen & driver RP-X924 TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/rackmount-display Step 2. Double click the Setup.exe Step 3.
-
Page 20: Mil-Type Or Lockable Connector
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. P.16 UM-CV-751-RP-X924-Q218V1...
