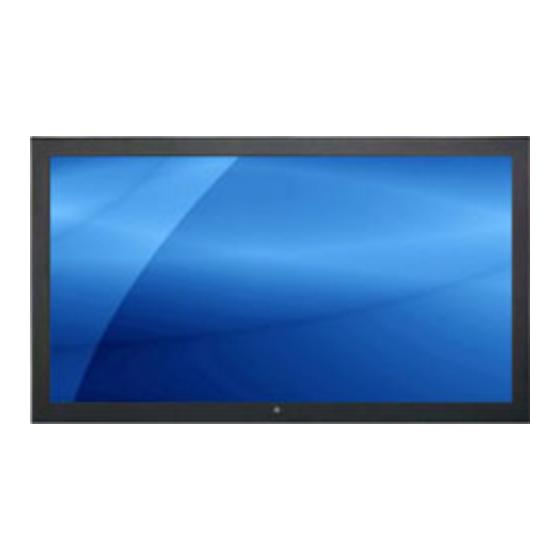

23" 4k lcd panel aluminum front bezel panel / vesa mount ready
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
APW4023
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA91710
© Copyright 2019 Acnodes Corp.
23" 4K LCD Panel
Aluminum Front Bezel
Panel / VESA Mount Ready
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APW4023 and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes APW4023

Summary of Contents for Austin Hughes APW4023

  • Page 1 APW4023 23" 4K LCD Panel Aluminum Front Bezel Panel / VESA Mount Ready User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588...
  • Page 2 Legal Information First English printing, March 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > APW4023 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > Specifications / OSD P.5 - 6 Product Specifications P.7 - 9 On-screen Display Operation ( OSD ) P.10 -11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Apw4023

    23” 4K LCD Display < Part 1 > APW4023 < 1.1 > Package Content APW4023 23” 4K LCD Display x 1 6ft DP cable x 1 Power adapter x 1 Power cord x 1 Mounting hardware x 1 pack Basic I/O Power HDMI 1.4...

  • Page 6: Structure Diagram & Dimension

    < 1.2 > Structure Diagram 23” 4K LCD Display Side View Front View APW4023 Bottom View Rear case Rear View LCD panel 6mm aluminum front bezel Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H)
  • Page 7 < 1.2 > Dimension 23” 4K LCD Display Front View Side View APW4023 Rear View UNIT : mm 1mm = 0.03937 inch...
  • Page 8 < 1.3 > VESA Installation 23” 4K LCD Display ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#2 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...

  • Page 9: Product Specifications

    < Part 2 > 23” 4K LCD Display < 2.1 > Product Specifications Mechanical Design Protection 6mm front bezel or NEMA 4 / IP65 Front Panel Black, RAL 9005 Black, RAL 9005 Rear Casing 100 x 100 mm VESA mount Universal mount Option Desktop stand...
  • Page 10 < 2.1 > Product Specifications 23” 4K LCD Display Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical SpecifIcation...

  • Page 11: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) 23” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 12 < 2.2 > On-screen Display Operation ( OSD ) 23” 4K LCD Display Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position...
  • Page 13 < 2.2 > On-screen Display Operation ( OSD ) 23” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 14: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 2.3 > How to Use Picture In Picture ( PIP ) 23” 4K LCD Display < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 15 < 2.3 > How to Use Picture By Picture ( PBP ) 23” 4K LCD Display < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Sub screen Main screen Size...

  • Page 16: Options

    < Part 3 > Options 23” 4K LCD Display < 3.1 > Option Table Options Remote controller MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power P.12...

  • Page 17: Remote Controller ( Rc-2 )

    < 3.2 > Remote Controller ( RC-2 ) 23” 4K LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.

  • Page 18: Hd / Sd-Sdi Input

    < 3.3 > Options : 3G / HD / SD-SDI Input 23” 4K LCD Display SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Ultra View displays, input module support 1080p @60Hz...
  • Page 19 < 3.4 > Options : MCS 23” 4K LCD Display More control is always good. Especially when it is Multi-display Control (MCS) necessary and easy. Acnodes provides MCS solution to control the OSD of various Ultra View LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various...

  • Page 20: Touchscreen & Driver

    < 3.5 > Options : Touchscreen & Driver 23” 4K LCD Display 23" USB Touchscreen Specification IR-06 Infrared Model TPC-10 Multi-touch e-Resistive Technology Infrared Projected Capacitive 5-Wire Resistive Touch Point 10 point touch standard Single Input Type Pen or Finger or gloved hand Finger or Capacitive Stylus Finger or Stylus Resolution...
  • Page 21 < 3.5 > Options : Touchscreen & Driver 23” 4K LCD Display TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
  • Page 22 < 3.6 > Options : DC Power 23” 4K LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 23: Mil-Type Or Lockable Connector

    < 3.7 > Options : MIL-type or Lockable Connector 23” 4K LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design f exibility possible.
