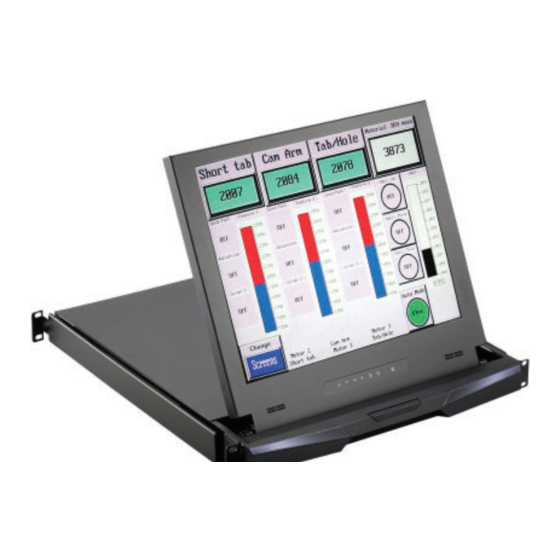

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RP-117 / RP-119 1U LCD Drawer Options : - AV / DVI-D / Audio - Touchscreen - SDI - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-117-Q323V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-117 / RP-119 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input Speaker, DVI-D, BNC Touchscreen : Projected Capacitive ( 10-point touch ) Resistive / Capacitive ( 1-point touch ) - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: < 1.1 > Package Content
< Part 1 > RP-117 / RP-119 < 1.1 > Package Content RP-117 / 119 RP-117 or RP-119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and HDMI only ). - Page 6 < 1.3 > Dimension Front View Rear View Power HDMI UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 500 x 44 mm 588 x 758 x 120 mm 10.5 kg...
-
Page 7: Installation
RP-117 / 119 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. -
Page 8: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations RP-117 RP-119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 9 RP-117 / 119 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical RP-117 RP-119...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-117 / 119 Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position...
-
Page 12: Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... -
Page 13: Speaker, Dvi-D, Bnc
< 3.2 > Options : Speaker, DVI-D, BNC RP-117 / 119 Speaker Option speaker speaker DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output - Speaker DVI-D HDMI DVI-D Power Audio Audio Chassis extension in depth to 570mm ( 22.4” ) BNC Option - BNC ( S-Video + Composite, BNC ) - Page 14 < 3.3 > Options : Touchscreen & driver Projected Capacitive 10-pt Touch screen Specifi cation RP-117 Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 15 < 3.3 > Options : Touchscreen & driver RP-117 / 119 USB Touchscreen HDMI Power Chassis extension in depth to 570mm ( 22.4” ) TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations.
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. P.12 UM-CV-751-RP-117-Q323V1...
