- Page 1 OnCell G4302-LTE4 Series Quick Installation Guide Moxa OnCell Series Version 1.0, May 2023 Technical Support Contact Information www.moxa.com/support 2023 Moxa Inc. All rights reserved. P/N: 1802043020010 *1802043020010*...
-
Page 2: Package Checklist

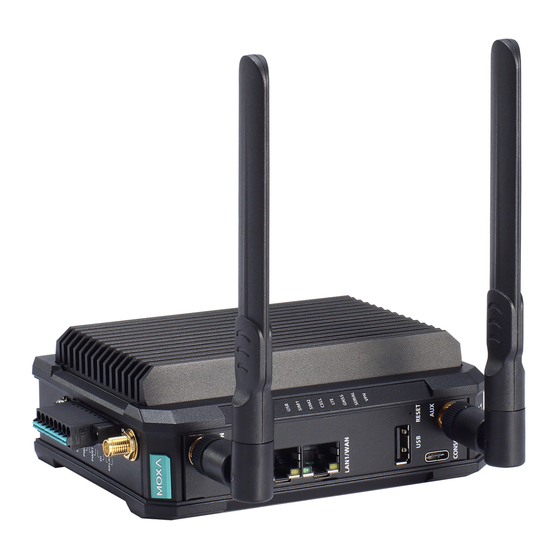

Overview The OnCell G4302-LTE4 is a reliable, secure, LTE router with a state- of-the-art LTE module. This 4G cellular router provides a highly reliable connection to your Ethernet and serial network for cellular applications. The OnCell G4302-LTE4 is ideal for remote-access applications where power consumption needs to be well managed. - Page 3 subnet mask is 255.255.255.0, you should set the IP address of the computer to 192.168.127.xxx and the subnet mask to 255.255.255.0. STEP 4: Use the web-based manager to configure the OnCell G4302-LTE4 Open your computer’s web browser and type http://192.168.127.254 in the address field to access the homepage of the web-based management system.
- Page 4 1. Cellular antenna port (Main) 2. Cellular antenna port (AUX) 3. GNSS antenna port 4. 100/1000 Base-T(X) Ethernet LAN port 2 (RJ45) 5. 100/1000 Base-T(X) Ethernet LAN port 1/WAN port (RJ45) 6. USB port 7. Reset button 8. Console port (reserved for engineering use) 9.
-
Page 5: Device Dimensions
Device Dimensions DIN-rail Mounting The OnCell G4302-LTE4 Series comes with a DIN-rail kit attached to the back panel. Mount the OnCell G4302-LTE4 Series on corrosion-free mounting rails that meet the EN 60715 standard. - 5 -... -
Page 6: Installation
STEP 3: Lift up the device to remove it from the DIN rail. Wall Mounting (optional) NOTE Mounting the OnCell G4302-LTE4 Series onto a wall requires the WK-41-01 wall-mounting kit, which is sold separately. For some applications, it may be more convenient to mount the OnCell... - Page 7 Installation STEP 1: Attach the wall-mounting kit to the OnCell device by inserting the upper lip of the DIN-rail kit into the hook of the wall mounting kit. STEP 2: Press the OnCell device towards the wall mounting kit until it snaps into place.
-
Page 8: Wiring Requirements
Removal STEP 1: Pull down the latch on the mounting kit with a screwdriver. STEP 2: Slightly pull the device forward. STEP 3: Lift up the device to detach it from the wall. WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room, where access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the fact that the... - Page 9 • You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring with similar electrical characteristics can be bundled together. • Keep input wiring and output wiring separate. •...
-
Page 10: Installing A Sim Card
Installing a SIM Card STEP 1: Open the rubber cover. STEP 2: Push the 2-slot SIM card tray to release the tray. STEP 3: Remove the tray and place the SIM cards into the tray. STEP 4: Insert the tray with the SIM cards back into the SIM socket. You will hear a click indicating the tray is locked into place. -
Page 11: Wiring The Power Input
Connecting the Power Input STEP 1: Use a small flat-blade screwdriver to press the wire locker. STEP 2: Insert a positive/negative DC wire into the V+/V- terminals respectively. STEP 3: Release the wire locker and confirm the wire is fixed in place. Wiring the Power Input Top and front views of the terminal block connector are shown below: ATTENTION... -
Page 12: Led Indicators
– – – Console Port The OnCell G4302-LTE4 Series features a Type-C console port that you can connect to a PC COM port using a Type-C-to-DB9 cable. You can use this port for debugging or firmware upgrades. Description A5, B5... - Page 13 Color Behavior Function PWR2 Amber Power is being supplied to power input PWR2. Power is not being supplied to the power PWR2. STATE Green The system passed the self- diagnosis test during boot-up and is ready to run. Blinking (1 sec The system is in Power Saving off, 5 sec on) mode.
-
Page 14: Specifications
Color Behavior Function LAN/WAN Green The port is active, and a link is established at 1000 Mbps. Blinking Data is being transmitted at 1000 Mbps. Amber The port is active, and a link is established at 10/100 Mbps. Blinking Data is being transmitted at 10/100 Mbps. - Page 15 ATTENTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
