2

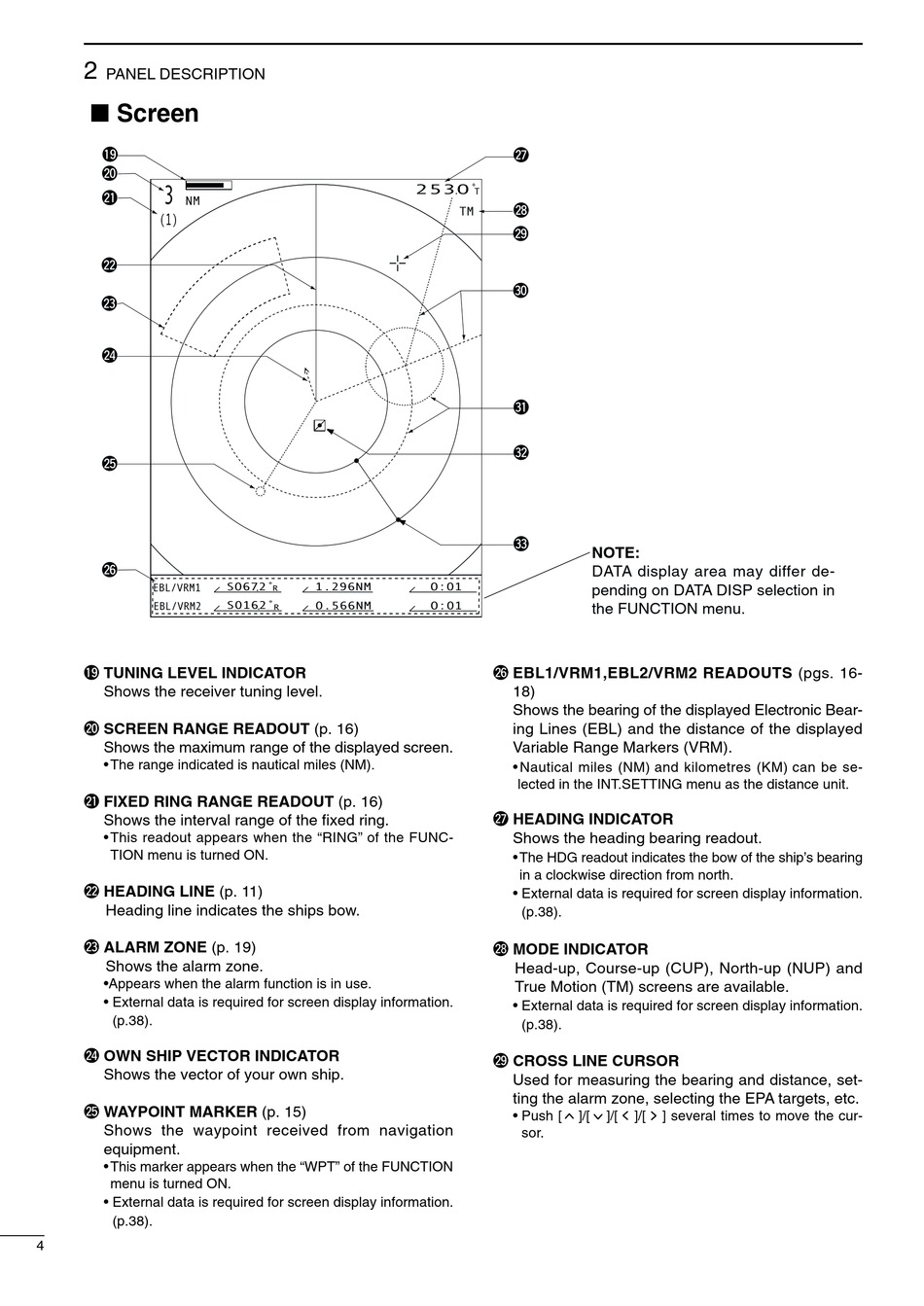

PANEL DESCRIPTION
I Screen
!9
@0
3
@1
NM
(1)
@2
@3
@4
@5
@6
EBL/VRM1
EBL/VRM2
!9 TUNING LEVEL INDICATOR
Shows the receiver tuning level.
@0 SCREEN RANGE READOUT (p. 16)
Shows the maximum range of the displayed screen.
• The range indicated is nautical miles (NM).
@1 FIXED RING RANGE READOUT (p. 16)
Shows the interval range of the fixed ring.
• This readout appears when the "RING" of the FUNC-
TION menu is turned ON.
@2 HEADING LINE (p. 11)
Heading line indicates the ships bow.
@3 ALARM ZONE (p. 19)
Shows the alarm zone.
•Appears when the alarm function is in use.
• External data is required for screen display information.
(p.38).
@4 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
@5 WAYPOINT MARKER (p. 15)
Shows the waypoint received from navigation
equipment.
• This marker appears when the "WPT" of the FUNCTION
menu is turned ON.
• External data is required for screen display information.
(p.38).
4
S0672˚ 1.296NM
R
S0162˚ 0.566NM
R
@7
2530˚
T
@8
TM
@9
#0
#1
#2
#3
O:01
O:01
@6 EBL1/VRM1,EBL2/VRM2 READOUTS (pgs. 16-
18)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL) and the distance of the displayed
Variable Range Markers (VRM).
• Nautical miles (NM) and kilometres (KM) can be se-
lected in the INT.SETTING menu as the distance unit.
@7 HEADING INDICATOR
Shows the heading bearing readout.
• The HDG readout indicates the bow of the ship's bearing
in a clockwise direction from north.
• External data is required for screen display information.
(p.38).
@8 8 MODE INDICATOR
Head-up, Course-up (CUP), North-up (NUP) and
True Motion (TM) screens are available.
• External data is required for screen display information.
(p.38).
@9 CROSS LINE CURSOR
Used for measuring the bearing and distance, set-
ting the alarm zone, selecting the EPA targets, etc.
• Push [ ]/[
sor.
NOTE:
DATA display area may differ de-
pending on DATA DISP selection in
the FUNCTION menu.
]/[ ]/[ ] several times to move the cur-
