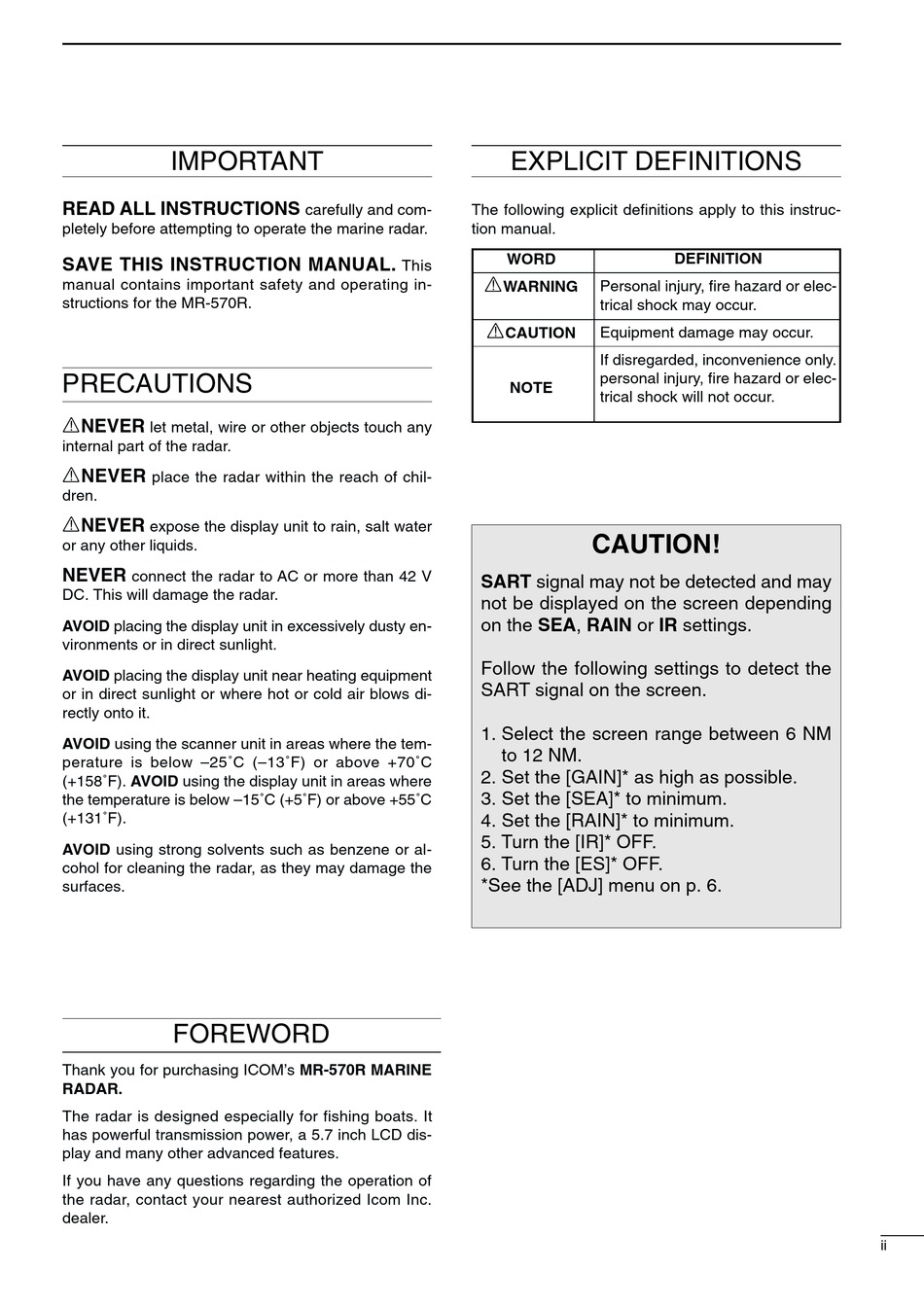

Icom MR-570R Instruction Manual page 3

IMPORTANT
READ ALL INSTRUCTIONS
pletely before attempting to operate the marine radar.
SAVE THIS INSTRUCTION MANUAL.
manual contains important safety and operating in-
structions for the MR-570R.
PRECAUTIONS
RNEVER
let metal, wire or other objects touch any
internal part of the radar.
RNEVER
place the radar within the reach of chil-
dren.
RNEVER
expose the display unit to rain, salt water
or any other liquids.
NEVER
connect the radar to AC or more than 42 V
DC. This will damage the radar.
AVOID placing the display unit in excessively dusty en-
vironments or in direct sunlight.
AVOID placing the display unit near heating equipment
or in direct sunlight or where hot or cold air blows di-
rectly onto it.
AVOID using the scanner unit in areas where the tem-
perature is below –25˚C (–13˚F) or above +70˚C
(+158˚F). AVOID using the display unit in areas where
the temperature is below –15˚C (+5˚F) or above +55˚C
(+131˚F).
AVOID using strong solvents such as benzene or al-
cohol for cleaning the radar, as they may damage the
surfaces.
FOREWORD
Thank you for purchasing ICOM's MR-570R MARINE
RADAR.
The radar is designed especially for fishing boats. It
has powerful transmission power, a 5.7 inch LCD dis-
play and many other advanced features.
If you have any questions regarding the operation of
the radar, contact your nearest authorized Icom Inc.
dealer.
carefully and com- The following explicit definitions apply to this instruc-
tion manual.
This
EXPLICIT DEFINITIONS
WORD
R
Personal injury, fire hazard or elec-
WARNING
trical shock may occur.
R
Equipment damage may occur.
CAUTION
If disregarded, inconvenience only.
personal injury, fire hazard or elec-
NOTE
trical shock will not occur.
CAUTION!
SART signal may not be detected and may
not be displayed on the screen depending
on the SEA, RAIN or IR settings.
Follow the following settings to detect the
SART signal on the screen.
1. Select the screen range between 6 NM
to 12 NM.
2. Set the [GAIN]* as high as possible.
3. Set the [SEA]* to minimum.
4. Set the [RAIN]* to minimum.
5. Turn the [IR]* OFF.
6. Turn the [ES]* OFF.
*See the [ADJ] menu on p. 6.
DEFINITION
ii
