Single Housing End Attached to the Anchorage

The housing end connector may be installed to a suitable anchorage.
30
O
To attach the housing to an anchorage, follow these steps:
1. Don the harness in accordance with the harness manufacturer's
instructions.
2. Insert the nose end of an ANSI compatible double-locking carabiner
through the SRD housing swivel eye.
3. Attach the carabiner to the anchor point. Visually ensure the carabiner is
fully closed and locked.
4. Connect the leg end connector to the dorsal D-ring of the FBH. Visually
ensure the connector is fully closed and locked.
The SRD will pay out and retract smoothly to maintain a taut line during normal
movement. Work as directly under the anchor as possible. If necessary, the leg
end connector may be attached to a lower level anchorage, up to 5' below the
user's harness D-ring. Be aware that a lower anchorage increases the risk of injury
due to swing fall. Additional fall clearance is required.
DO NOT attach the SRD leg end to the FBH with a rebar hook or any large-
throat snap hook or large carabiner. A side load could cause an unintentional
disengagement. Use small snap hooks only.
DO NOT attach the housing to the FBH with a rebar hook or any large-throat snap
hook or large carabiner. A side load could cause unintentional disengagement.
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.

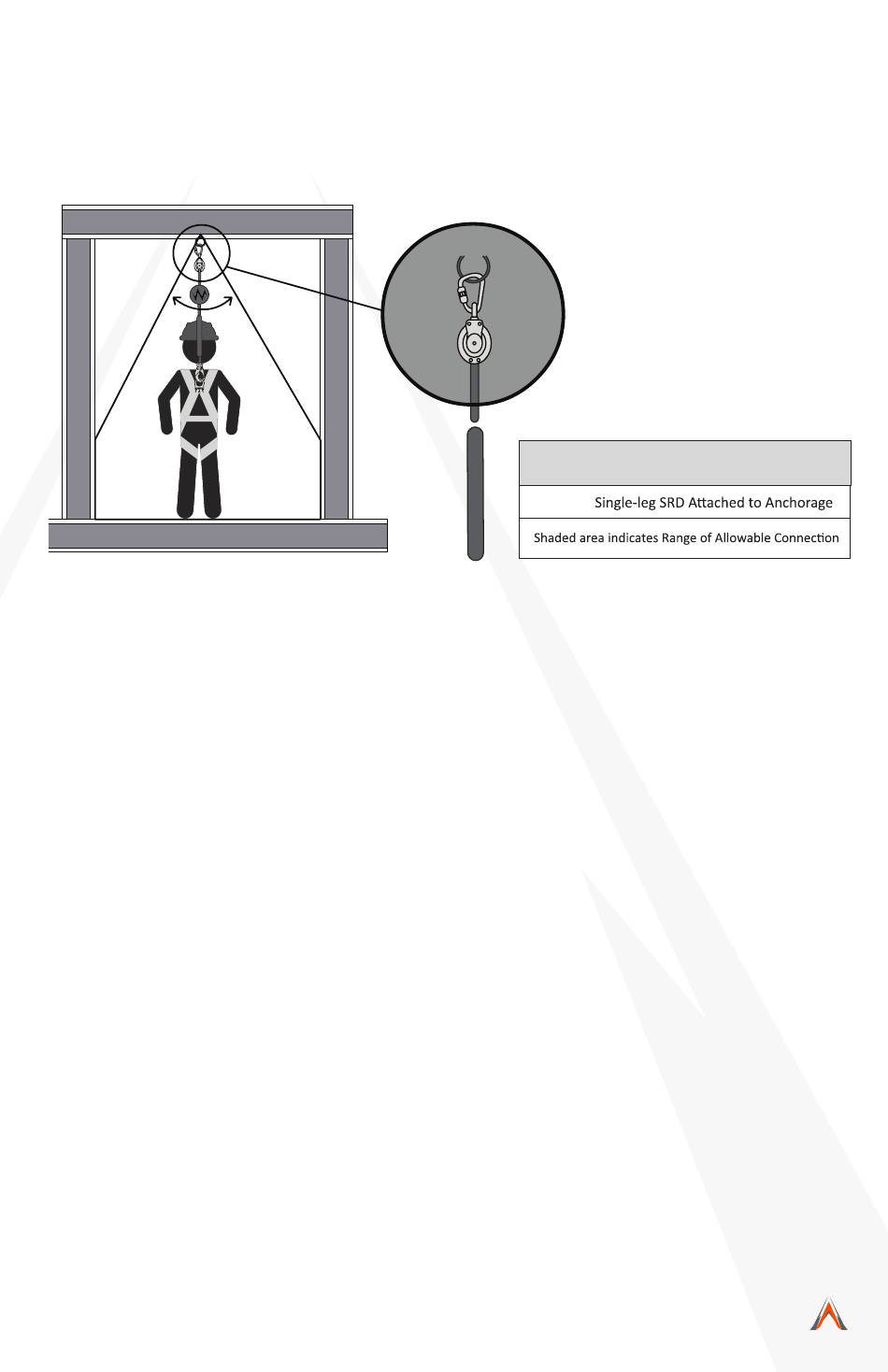

Figure 3B: Pygmy Hog SRD Orientation
and Acceptable Anchorage Range
6' & 10'
