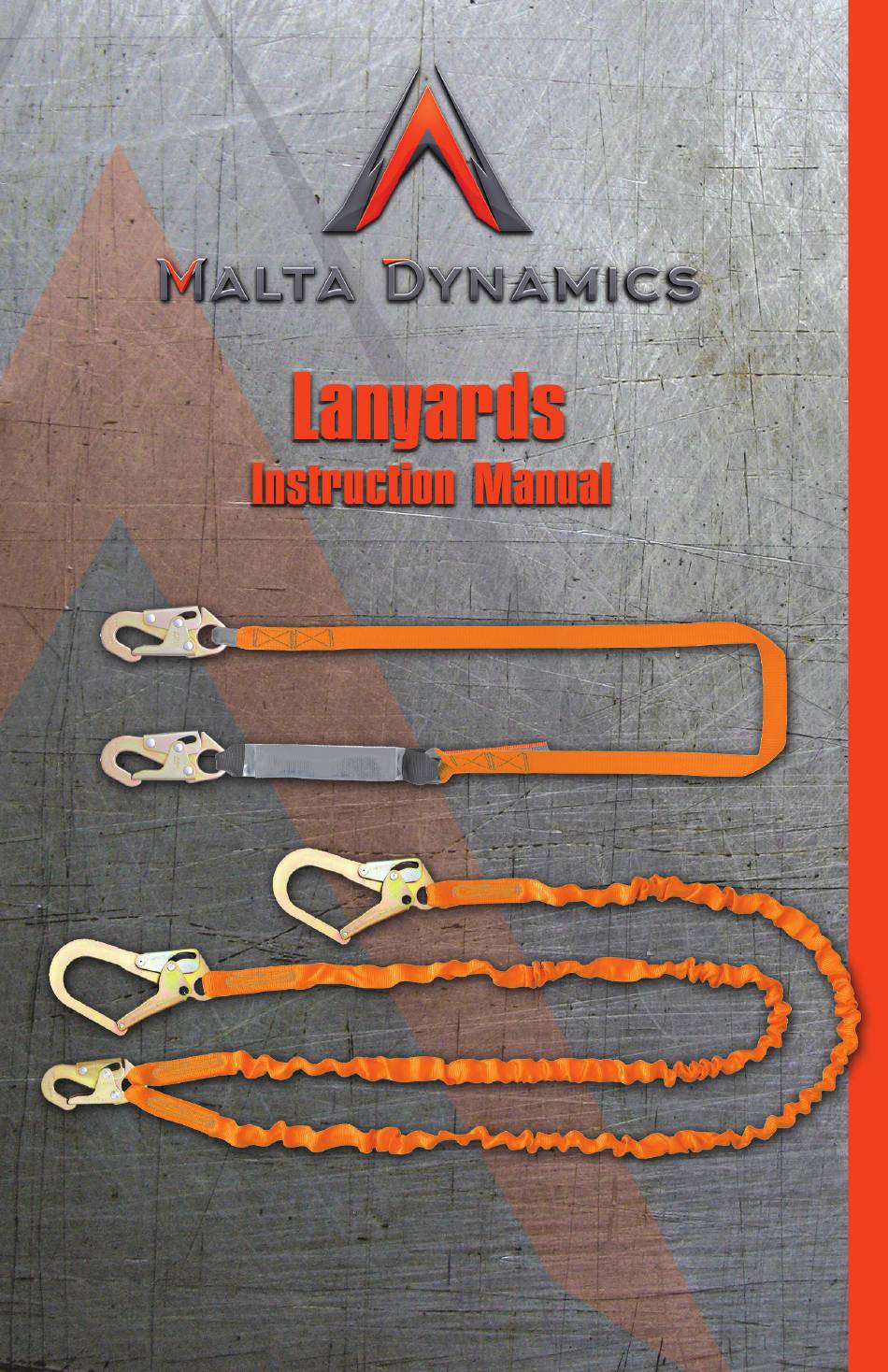

- Page 1 Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture.
- Page 2 A copy of this manual must be available to users at all times. Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture. ANSI ANSI ANSI OSHA OSHA COMPLIANT Z359.13-2013 Z359.13-2013 Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805...
-
Page 3: Table Of Contents
Inspection -------------------------------------------------------------- 17 Cleaning and Storage -------------------------------------------------- 18 Frequency -------------------------------------------------------------- 19 Product Markings ------------------------------------------------------ 20 Inspection Log --------------------------------------------------------- 22 Warranty ---------------------------------------------------------------- 23 Visit www.MaltaDynamics.com for the latest user Lanyards Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture. -
Page 4: Under Penalty Of Law
Malta Dynamics at 1-800-494-1840. PURPOSE Malta Dynamics Lanyards are designed to be used as a part of a personal fall arrest system to help limit the forces associated with fall arrest in the event of a fall. - Page 5 • This equipment must be removed from service immediately if a fall is incurred. • Do not wrap the shock absorbing lanyards around any structure and connect the lanyard back. • Striking objects horizontally due to the pendulum effect of a swing fall may cause serious injury or death.
- Page 6 Equipment that fails inspection in any way must immediately be removed from use or repaired by an entity approved by Malta Dynamics. Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805...
-
Page 7: Limitations For Use
Visit www.MaltaDynamics.com for the latest user Lanyards Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture. -
Page 8: Connector Compatibility Limitations
Free Fall” are designed for up to 6-foot free fall applications with a maximum capacity up to 310 lb. (141 kg) including clothing, tools, etc. • Shock Absorbing Lanyards must be used with a full body harness. • Shock Absorbing Lanyards are designed for a single user. - Page 9 • Illustration 3 depicts examples of a few of these inappropriate connections: Illustration 3: Inappropriate Connections Visit www.MaltaDynamics.com for the latest user Lanyards Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture.
-
Page 10: Component Limitations
• CAPACITY: This equipment is for use by one person with a combined weight (person, clothing, tools, etc.) of 130 lbs. to 310 lbs. • FREE FALL: Lanyards used for work positioning applications must be rigged to minimize any potential vertical free fall. In no case should potential free fall be greater than two feet. -
Page 11: Performance
PERFORMANCE Each Malta Dynamics Lanyard has been tested in accordance with the requirements of the ANSI Z359.13-2013 standard. Part Material Length Standard Number Elongation C5000 Single Leg Polyester External Shock Absorbing Lanyard with 2 Steel 6 feet 48 inches ANSI Snap Hooks Z359.13-... - Page 12 ≤ 1575 lbs. F ≤ 1350 lbs. F Maximum Elongation 60 inches 60 inches 60 inches 60 inches Deployments VS Free Fall (Internal Shock Absorbing Lanyards: C5000, C5001, C5002, C5003, C5011, C5013) Weight 1ft. 2ft. 3ft. 4ft. 5ft. 6ft. 130 lbs.
- Page 13 • Keep lanyards as short as possible to minimize free fall distance. • Free fall distance must not exceed 6 ft. at any time.
- Page 14 • 100% Tie Off Considerations: Energy absorbing Y-type, twin leg or double lanyards can be used to provide continuous fall protection while moving. The worker can move to a new location while one lanyard leg is attached. Attach the free (unused) lanyard leg, then disconnect the attached leg.
- Page 15 Special applications exist where it may be permissible. Contact Malta Dynamics if considering connecting an energy absorbing lanyard to a self-retracting lifeline. Knots: Knots of any kind are not approved in lanyards. Strength is drastically reduced by tie-offs using knots, tying around sharp edges, etc. Tie-offs using a knot in a rope lanyard (at any location) reduces the lanyard strength by 50 percent or more.
- Page 16 3 ft. Safety 3 ft. Safety Factor Factor Sharp Edges: Avoid working where your lanyard or other system components will be in contact with, or abrade against, unprotected sharp edges. Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805...
-
Page 17: Hardware
• Follow manufacturer’s instructions for each component of the system. HARDWARE Snap hooks and carabiners used on Malta Dynamics Shock Absorbing Lanyards marked with the ANSI Z359.1-07 and ANSI Z359.12-09 standard are self-locking with a minimal tensile break strength of 5,000 lb. and a 3,600 lb. gate rating. -
Page 18: Cleaning And Storage
Store in dry, clean environment away from direct sunlight, excessive heat, their vapors, moisture, oil, chemicals, or other degrading elements. Avoid storage in areas where chemical vapors may exist. Thoroughly inspect lanyard after extended storage. Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805... -
Page 19: Frequency
Intact Load Indicators: External Shock Absorber Internal Shock Absorber Deployed Load Indicators: External Shock Absorber Internal Shock Absorber Visit www.MaltaDynamics.com for the latest user Lanyards Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture. -
Page 20: Product Markings
PRODUCT MARKINGS The following labelling is affixed to product and must not be removed: Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805... - Page 21 5 or 13 2 or 9 6 or 11 or 15 7 or 14 4 or 10 8 or 12 or 16 Visit www.MaltaDynamics.com for the latest user Lanyards Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture.
-
Page 22: Inspection Log
INSPECTION LOG Date of Manufacture: _________________________________ Model Name/#:_______________________________________ Serial: _______________________________________________ Date of First Use: ____________________________________ Inspection Date Items Noted Corrective Action Approved By Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805... -
Page 23: Warranty
LIMITED REMEDY: Upon notice in writing, Malta Dynamics will repair or replace all defective items at Malta Dynamics’s sole discretion. Malta Dynamics reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action. - Page 24 800-494-1840 MaltaDynamics.com 210 13th Street Malta, OH 43758 USA Lanyards Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-LUIM160805...
