- Page 1 Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture.

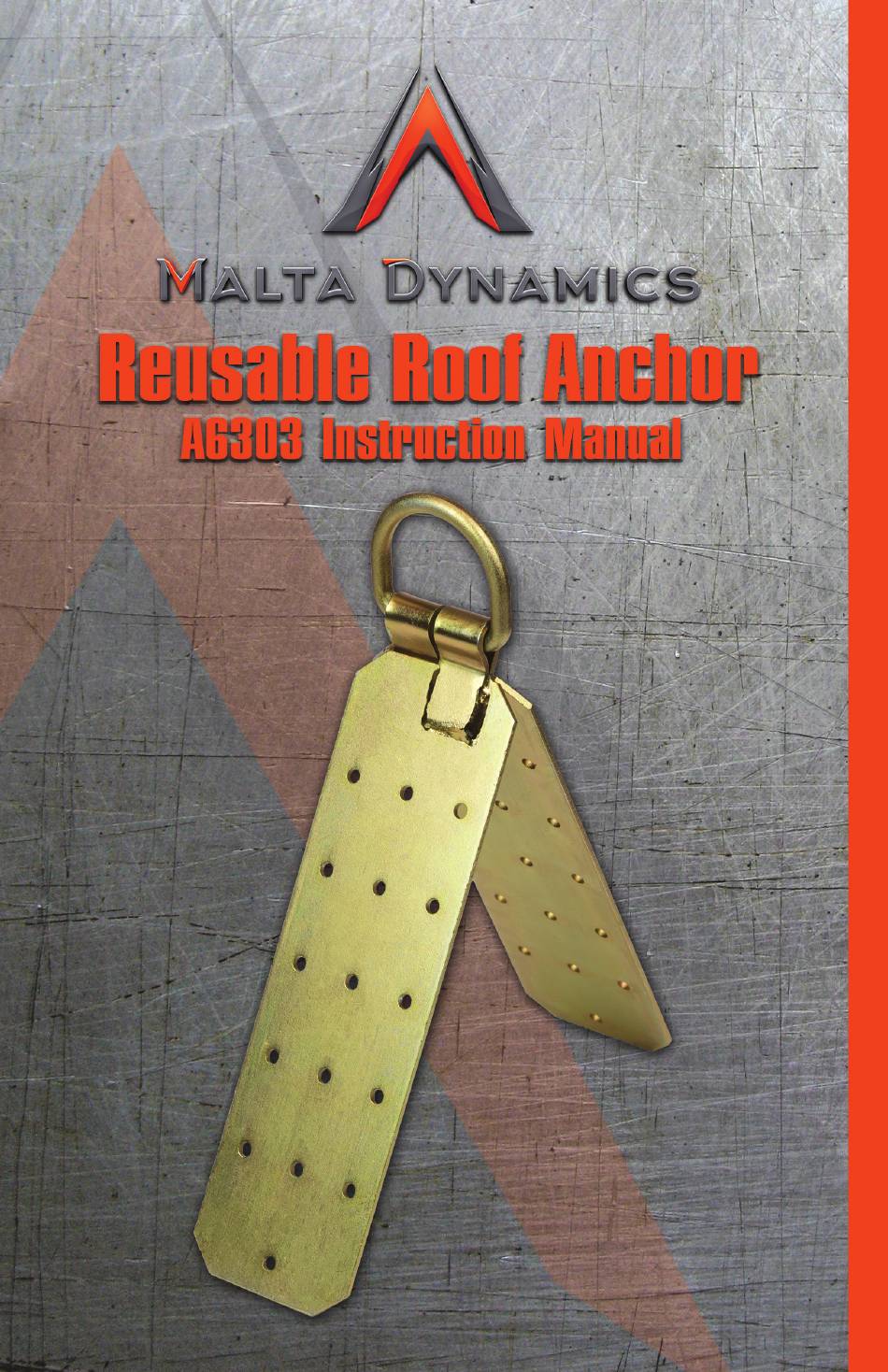

- Page 2 Reusable Roof Anchor A6303 INSTRUCTION MANUAL These instructions apply to the following model(s): A6303 Reusable Roof Anchor Manual Revision Code: MD-RRAUIM170126 A copy of this manual must be available to users at all times. Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Under Penalty of Law ------------------------------------------------- Purpose ----------------------------------------------------------------- 4 Instructions for Use ---------------------------------------------------- 5 Limitations for Use ----------------------------------------------------- 5 Connector Compatibility Limitations --------------------------------- 6 Performance ----------------------------------------------------------- Training ----------------------------------------------------------------- 11 Inspection -------------------------------------------------------------- 11 Frequency -------------------------------------------------------------- 12 Cleaning and Maintenance --------------------------------------------- 12 Product Labels ------------------------------------------------------ Inspection Log --------------------------------------------------------- 14 Warranty ---------------------------------------------------------------- 15... -
Page 4: Under Penalty Of Law
Malta Dynamics at 1-800-494-1840. PURPOSE A6303 Malta Dynamics Reusable Roof Anchor is designed for use as a temporarily installed (not for permanent installation) anchorage connector, and use as part of a personal fall arrest or restraint system. Not to be used for attachment of a lifeline between two or more roof anchors (e.g. -
Page 5: Instructions For Use
WARNING INSTRUCTIONS FOR USE WARNING WARNING Do not alter or intentionally misuse this equipment. • Reusable Roof Anchors which meet ANSI Z359.1-2007 are intended to be used with other components of a Personal Fall Arrest system that limit maximum arrest forces to 900 lbs. (4kN) or less. •... -
Page 6: Connector Compatibility Limitations
Fahrenheit to +130 degrees Fahrenheit (-40 degrees Celsius to +53 degrees Celsius). • A6303 Reusable Roof Anchor is designed for use by one person only, with maximum weight of 310 lbs. if used in combination with equipment explicitly certified for such use (including clothing, tools, etc.). - Page 7 Avoid the following types of connections: • Connection of two (or more) snap hooks/rebar hooks or carabiners to one D-ring. • Connection of a snap hook/rebar hook back to its integral lanyard. • Direct connection of a snap hook/rebar hook to horizontal lifeline. •...
-
Page 8: Performance
PERFORMANCE A6303 Reusable Roof Anchor has a minimum tensile breaking strength of 5,000 lbs. (22.2 kN) when statically tested in accordance with the requirements of the ANSI Z359.1-2007 standard. Model/ Approx. Standard Material Length Width Connection Part # Weight Regulation 1/8 in. - Page 9 All fasteners must be installed without splitting the timber or protruding through side members. Edge distance, end distances and spacing must be sufficient to prevent splitting of the wood, and must conform to design requirements under the current edition of Section 11.1.5 National Design Standard (NDS), Chapter 23 of The International Building Code (IBC) and all other applicable codes.
- Page 10 On Ridge On Field On Ridge On Field outlined below. Malta Dynamics Hinged Reusable Roof Anchor Figure 2: Typical Roof Site Plan for Roof Anchors No more than 8’ of spacing between roof anchors Roof Ridge installed on Roof Ridges...
-
Page 11: Training
anchors are installed onto a roof structure, each of the two anchor location must be independently capable of supporting 5,000 lbs.(22.2 kN) or 3,600 lbs. (16.0 kN) with certification.) Anchorages used for attachment of a personal fall arrest system shall be independent of any anchorage being used to support or suspend platforms, and must support at least 5,000 lbs. -
Page 12: Frequency
Step 4: Ensure Reusable Roof Anchor remains securely attached. If Roof Anchor is loose, do not use. Step 5: Inspect each system component or subsystem per associated manufacturer’s instructions. Step 6: Record the inspection date and results in your Hog Tracker account or inspection log. -
Page 13: Product Labels
PRODUCT LABELS The following labeling is affixed to product and must not be removed: Visit www.MaltaDynamics.com for the latest user Connecting Hardware Instruction Manual MaltaDynamics.com | 800-494-1840 instruction manual based upon date of manufacture. -
Page 14: Inspection Log
INSPECTION LOG Date of Manufacture: _________________________________ Model Name/#:_______________________________________ Serial: _______________________________________________ Date of First Use: ____________________________________ Inspection Date Items Noted Corrective Action Approved By Reusable Roof Anchor Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-RRAUIM170126... -
Page 15: Warranty
LIMITED REMEDY: Upon notice in writing, Malta Dynamics will repair or replace all defective items at Malta Dynamics’s sole discretion. Malta Dynamics reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action. - Page 16 800-494-1840 MaltaDynamics.com 210 13th Street Malta, OH 43758 USA Reusable Roof Anchor Instruction Manual Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-RRAUIM170126...
