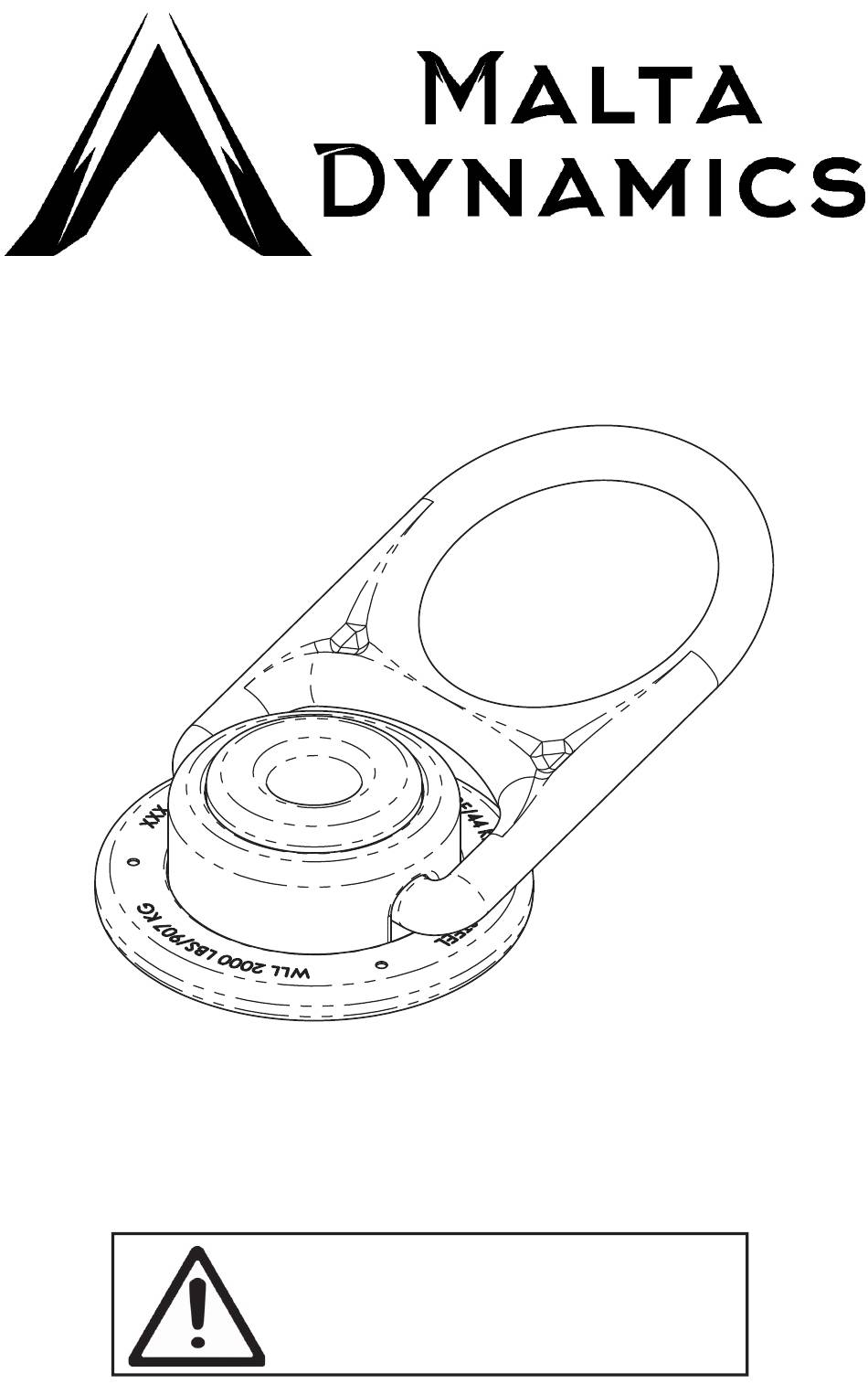

OPERATION AND INSTRUCTION MANUAL
Swivel Anchor
Model: A7400
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
V3.9
Advertisement
Table of Contents
Related Manuals for Malta Dynamics A7400
Summary of Contents for Malta Dynamics A7400
- Page 1 OPERATION AND INSTRUCTION MANUAL Swivel Anchor Model: A7400 WARNING: ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
-
Page 2: Use Instructions
PURPOSE The A7400 is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”... - Page 3 LABEL LOCATIONS 180° 2.25”ø 8”ø (57.15mm) (203.2mm) 5.5” (139.7mm) 360° 3” 1” (76.2mm) (25.4mm) Tensile Strength (UTS): 10,000-lbf (44kN) Working Load: 2,000-lbs (907kg) Weight: 1.2-lbs (544.3g) Materials: Zinc Plated Steel Regulatory Compliance: Meets or exceeds ANSI Z359.1(07), ANSI Z359.7(11) OSHA 1926.502, EN 795:1996 Class A LOADING CONDITIONS DIAGRAM LOAD LOAD...
-
Page 4: Concrete Mounting
STEEL MOUNTING 5/8”-11 Torque Range: Lock Nut 75 to 90 ft-lbs * Use tapered washer with I-beams (100-120Nm) that have tapered flanges. 5/8” Lock Washer drill 5/8” (16mm)Ø 5/8”-11x4” Hex Bolt * .75” (6mm) * For steel applications at grade-5, an 8 (or equivalent) bolt no shorter than 4”... - Page 5 WELD ON MOUNTING Grade - 5 or 8 bolt 5/8”-11 x 1-3/4” Internal Tooth Lock Washer Torque Range: 75 to 90 ft-lbs (100-120Nm) * Weld 3/8” min (9.5mm) * Welding procedure must be approved by an engineer or other qualified person to be compatible with any and all structural & operational characteristics of the selected installation location.
- Page 6 *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8 kN (1800-lbf ). (ANCHOR POINT) WORK SURFACE *The structure the anchorage is attached to must be able to support 10,000-lbf (44kN) and installed...
-
Page 7: Kit Contents
KIT CONTENTS PART NUMBER Call for more info (Steel Mounting Hardware Kit) A7400 (Swivel with Steel Mounting kit) Call for more info (Concrete Hardware Kit) A7400C (Swivel with Concrete Mounting Kit) Call for more info (Weld-on Mounting Kit) Call for more info... -
Page 8: Maintenance, Cleaning And Storage
LIMITED REMEDY: Upon notice in writing, Malta Dynamics will repair or replace all defective items at Malta Dynamics’s sole discretion. Malta Dynamics reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course action.
