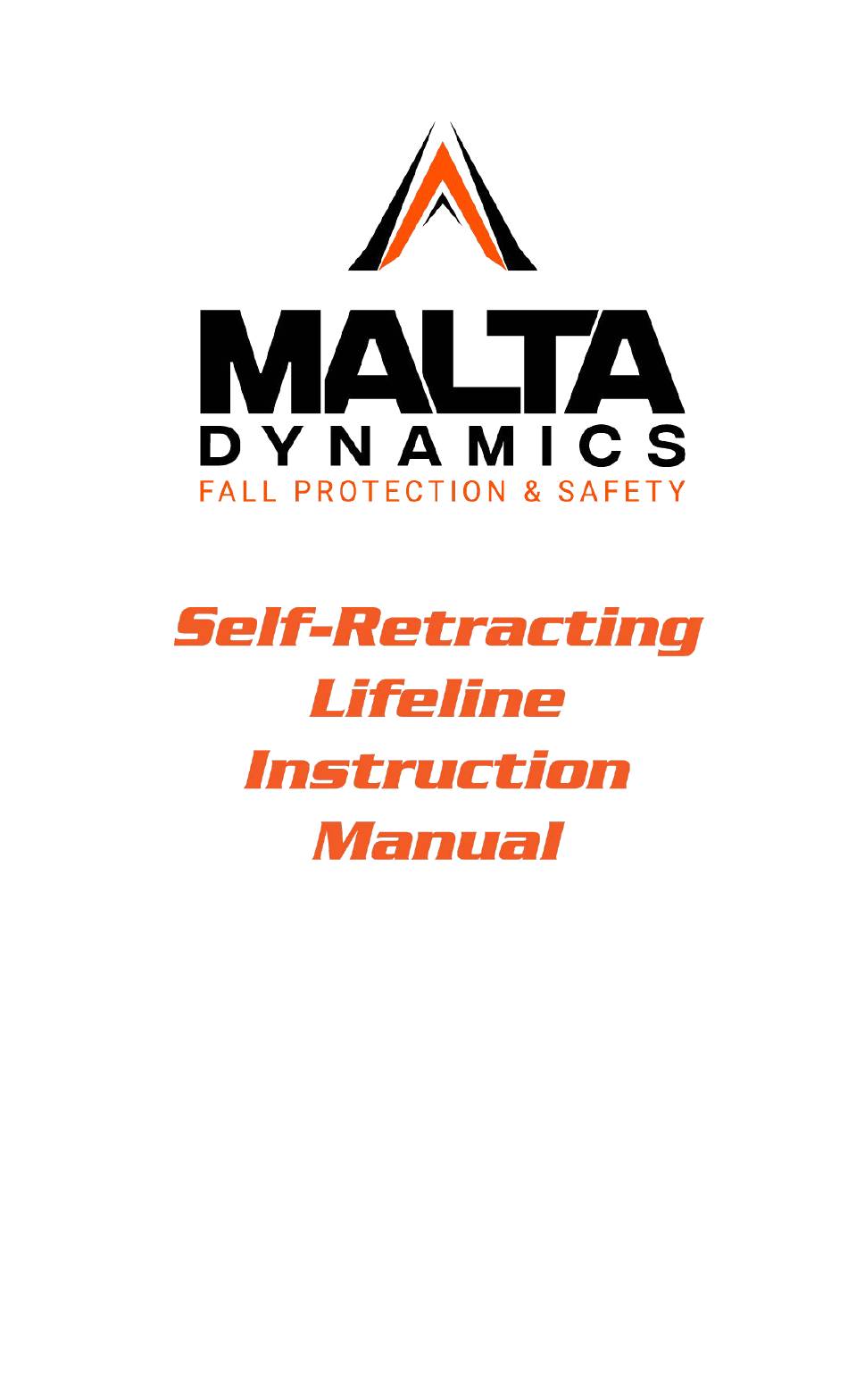

Malta Dynamics C7002-G2 Instruction Manual

Self-retracting lifeline
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C7002-G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Malta Dynamics C7002-G2

Summary of Contents for Malta Dynamics C7002-G2

  • Page 2 MANUAL These instructions apply to the following model(s): C7002-G2 - 50' Warthog SRL With Snap Hook Class 1 C7102-G2 - 6' Pygmy hog SRL With Snap Hook Class 1 C7104-G2 - 6' Pygmy hog SRL With Rebar Hook Class 1...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Under Penalty of Law ------------------------------------------------- Materials and Construction ------------------------------------------- 5 Purpose ----------------------------------------------------------------- 6 Instructions for Use ---------------------------------------------------- 6 Limitations for Use ----------------------------------------------------- 8 Connector Compatibility Limitations --------------------------------- 10 Connecting Component Limitations --------------------------------- Performance ----------------------------------------------------------- Training ----------------------------------------------------------------- 14 Inspection -------------------------------------------------------------- 14 Cleaning and Maintenance ------------------------------------------- Fall Clearance and Swing Falls --------------------------------------- 17...
  • Page 4 Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-PHRSRLUIM 11-23-18...

  • Page 5: Under Penalty Of Law

    Misuse or failure to follow warnings, instructions and limitations on the use of this equipment may result in serious personal injury or death. For further instructions about proper use, refer to supervisor or contact Malta Dynamics at 1-800-494-1840 MATERIALS AND CONSTRUCTION Webbing Materials •...

  • Page 6: Purpose

    PURPOSE Malta Dynamics Self-Retracting Lifelines are devices used to safely expand the working area where a harness with a six-foot lanyard is not adequate. A Self- Retracting Device (SRD) such as a self-retracting lifeline, is designed to reduce the shock load to the body of a worker by limiting the distance of a fall. The SRD allows complete freedom of movement.
  • Page 7 Arrest System is appropriate for your needs and facility. Calculate fall clearance and swing fall clearance. The amount of clearance required is dependent on the type of connecting subsystem, the anchorage location, and other factors. When calculating distance, be sure to consider: •...

  • Page 8: Limitations For Use

    • Do not allow the line constituent to retract into the unit in an uncontrolled manner. • Malta Dynamics self-retracting lanyards must be used with a full body harness and shall only be used as a personal fall arrest system that limits the maximum free fall distance to 2 feet unless unless using a Class 2 device in which free fall should be limited to 6ft or less.
  • Page 9 • User must not use or install equipment before receiving proper training from a Competent Person, as defined by OSHA 29 CFR 1926.32(f). • Only Malta Dynamics shall make repairs or alterations to the equipment. • All synthetic material must be protected from slag, hot sparks, open flames, or other heat sources.

  • Page 10: Connector Compatibility Limitations

    Use of a non-locking snap hook can result in rollout (a process by which a snap hook or carabiner unintentionally disengages from another connector or object to which it is coupled. Malta Dynamics connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions.

  • Page 11: Connecting Component Limitations

    • Connection of a snap hook to a D-ring, rebar, or other connection point of improper dimensions in relation to the snap hook dimensions or configurations that could cause the snap hook keeper to be depressed by a turning motion of the snap hook, or such that snap hook or carabiner will not fully close and lock, or that roll-out could occur.

  • Page 12: Performance

    PERFORMANCE Table 1 - CLASS 1 SRL Item # ANSI Standard Cable Average Max Arresting Classification Length Arresting Force Arresting Force Distance C7002-G2 50’ 1,600 lbf 1,100 lbf 24” C7003-G2 90’ 1,800 lbf 900 lbf 42” C7102-G2 6’ 1,600 lbf 1,100 lbf 28”...
  • Page 13 Capacity: Malta Dynamics Self-Retracting Lifelines are designed for use by an individual person with a combined weight (worker, clothing, tools, etc.) of 130 lbs. minimum to no more than 310 lbs. maximum for ANSI rated capacity. No more than one person may be connected at one time.

  • Page 14: Training

    TRAINING Employers are responsible for providing training to any employee who may be exposed to fall hazards in order to enable the employee to recognize and reduce fall hazards. Training must be conducted by a Competent or Qualified Person. Trainer and trainees must not be exposed to fall hazards during the training course.
  • Page 15 • Markings are legible • Components are free from corrosion, bending, cracks, dents or deformity • SRL is clean and free of dirt, oil, mold, mildew and contaminants Illustration 6: Inspection Procedure Inspection Step 1: Inspect for loose screws and bent or damaged parts.

  • Page 16: Cleaning And Maintenance

    Avoid storing in direct light to prevent UV degradation. Maintenance Do not attempt to disassemble or repair. Only Malta Dynamics or entities authorized in writing by Malta Dynamics shall make repairs, authorized maintenance or alterations to the equipment.

  • Page 17: Fall Clearance And Swing Falls

    Fall Clearance and Swing Falls Figure 2: Fall Clearance and Swing Falls Figure 2A: Figure 2B: Clearance required in feet (meters) between Working Level and Swing Falls Nearest Obstruction for User with Total Weight up to 310 lbs (140 kg). Do not tie off below the harness Dorsal D-Ring. 7 ft 7 ft 5 ft...
  • Page 18 Sharp Edges: Avoid working where sharp edges may contact lifeline when using a Class 1 device. Even when using a Class 2 device, this should be avoided when at all possible. Provide sufficient protective padding where avoiding sharp edges is not possible.
  • Page 19 Fall Clearance: Consider the following when calculating fall clearance. Clearance required is dependent on the following factors: • Elevation of Anchorage • Connecting Subsystem Length • Deceleration Distance • Free Fall Distance • Worker Height • D-ring / connector length •...

  • Page 20: Class 2 Or Below D-Ring

    And as a result, the device may be used in situations where a fall may occur similar edges, such as found on steel shapes or metal sheeting. Malta Dynamics’ Class 2 Self-Retracting lifelines may be used with horizontal lifelines and horizontal rails as long as instructed by the instructions for use for the specific horizontal lifeline or rail.
  • Page 21 WARNING WARNING WARNING The anchor point may only be situated at the same height as the edge at which a fall may occur or above the edge. Please refer to the Class 2 applications for limitations to the allowable work area relative to the anchorage point, including factors such as swing fall and abrasion on the line at the edge and the use of a single anchor point versus anchors that do not work on the far side of an opening, possible anchorage point...
  • Page 22 Calculating Minimum Required Fall Clearance Class 2 SRL Anchorage:2’ Setback from Leading Edge and 5’ below Dorsal D-ring E- 1.5ft: Safety Factor-Added length A- 6ft: Free fall Distance -due to Below D-ring Anchorage to account for other factors such as an improperly adjusted harness,actual worker height or worker weigh B- 3.5ft: SRD Deceleration Distance...
  • Page 23 Swing Fall Hazard: Leading Edge Condition with 2’ Setback Walking/ Working Surface Foot Level Anchorage with 2’ Setback from Leading Edge. Expanded Lateral Work Zone with Leading Edge Condition. SEE CHART 2 FOR INSTRUCTION ON HOW TO DETERMINE A SAFE LATERAL TRAVEL DISTANCE.
  • Page 24 Using Chart 2 to Find Additional Fall Clearance : Class 2 Conditions 2 foot increments along the X-Axis 2 foot increments up the Y-Axis represent represent the distance the user is working the SRD anchorage height above or below away from the SRD anchorage. the user’s Dorsal D-ring.

  • Page 25: Fall Clearance Requirements

    Fall Clearance Requirments CLASS 2 SRL-P CLASS 2 Manual Revision Code: MaltaDynamics.com | 800-494-1840 MD-20230508...

  • Page 26: C7203-G2

    SINGLE & TWIN CONNECTIONS The sections that follow will deal specifically with the proper use and installation of the Pygmy Hog SRD. About the Pygmy Hog SRD with C1004 Figure 1A: About the Pygmy Hog SRD Integral Swivel Eye Leg-End Connector Unit Housing Dual SRL Connector Energy Absorber...

  • Page 27: Single Housing End Attached To The Full Body Harness

    Single Housing End Attached to the FBH The SRD housing end is installed to the dorsal D-ring of an FBH and the leg end attached to a suitable anchorage. To attach SRD on the Harness, Follow these steps: Figure 3A: Pygmy Hog SRD Orientation and Acceptable Anchorage Range 6’...

  • Page 28: Single Housing End Attached To The Anchorage

    Single Housing End Attached to the Anchorage The housing end connector may be installed to a suitable anchorage. Figure 3B: Pygmy Hog SRD Orientation and Acceptable Anchorage Range 6’ & 10’ To attach the housing to an anchorage, follow these steps: 1.

  • Page 29: Twin-Leg Srds

    Twin-leg SRDs Twin-leg SRD housing ends are attached to the straps of a properly adjusted and fitted FBH with a specially-configured triple-locking twin-SRD carabiner. Connect the leg ends to anchorages within the correct orientation range. Refer to Figure 3C. DO NOT attempt to install the twin SRDs specially configured carabiner to an anchorage.

  • Page 30: Install The C1004

    Installing the C1004 To install the SRD housings onto the FBH, follow the procedure detailed in Figure 5A: 1. Prepare Dual Connector for Attachment 2. Prepare FBH and Preliminary Attachment Figure 5A: Attaching Twin-leg SRD to FBH with C1004 Understanding C1004 Parts Gate/Lock Bar Release Buttons Locking Indicator...
  • Page 31 WARNING WARNING WARNING Ensure the carabiner is correctly installed on the FBH as shown in Figure 5A. Incorrect installation may result in serious injury or death. Figure 5B shows common INCORRECT connections. Figure 5B: Incorrect Twin-leg SRD Attachment INCORRECT INCORRECT INCORRECT INCORRECT CORRECT...

  • Page 32: Twin-Leg Srd Work Zone Transition

    Twin-leg SRD Work Zone Transition This SRD is designed for attachment of one leg end at a time during work performance. Dual connection is for transitioning from one work zone to another only, as shown in Figure 7. Attach one leg end connector to a suitable anchor. The user may then move to another work location and attach the unused leg to another suitable anchorage.

  • Page 33: Product Labels

    PRODUCT LABELS The following labeling is affixed to product and must not be removed: C7002-G2 C7002-G2 C7102-G2 PART# C7103 OSHA/ANSI Z359.14-2014 6’ Self-Retracting Lifeline Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. C7104-G2 Max Arresting Distance: 24 in.
  • Page 34 C7201-G2 C7203-G2 PART# C7103 OSHA/ANSI Z359.14-2014 6’ Self-Retracting Lifeline C8000-G2 Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. Max Arresting Distance: 24 in. SERIAL # Average Arresting Force: 1350 lbs. BATCH # Materials: Impact Resistant Polymer Housing, UHMWPE &...
  • Page 35 C8001-G2 C9000-G2 PART# C7103 OSHA/ANSI Z359.14-2014 6’ Self-Retracting Lifeline C9001-G2 Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. Max Arresting Distance: 24 in. SERIAL # Average Arresting Force: 1350 lbs. BATCH # Materials: Impact Resistant Polymer Housing, UHMWPE &...
  • Page 36 LE3261 LE3263 PART# C7103 OSHA/ANSI Z359.14-2014 LE3311 6’ Self-Retracting Lifeline Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. Max Arresting Distance: 24 in. SERIAL # Average Arresting Force: 1350 lbs. BATCH # Materials: Impact Resistant Polymer Housing, UHMWPE &...
  • Page 37 LE3313 LE7020 PART# C7103 OSHA/ANSI Z359.14-2014 LE7030 6’ Self-Retracting Lifeline Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. Max Arresting Distance: 24 in. SERIAL # Average Arresting Force: 1350 lbs. BATCH # Materials: Impact Resistant Polymer Housing, UHMWPE &...
  • Page 38 LE7050 C7003-G2 PART# C7103 OSHA/ANSI Z359.14-2014 6’ Self-Retracting Lifeline Capacity: 1 person with Swivel Top & Peri Form Hook ANSI Capacity Range: 130-310 lbs. Max Arresting Distance: 24 in. R0003-G2 SERIAL # Average Arresting Force: 1350 lbs. BATCH # Materials: Impact Resistant Polymer Housing, UHMWPE &...
  • Page 39 CLASS 1 CLASS 2 Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture. MaltaDynamics.com | 800-494-1840...

  • Page 40: Inspection Log

    INSPECTION LOG Date of Manufacture: _________________________________ Model Name/#:_______________________________________ Serial: _______________________________________________ Date of First Use: ____________________________________ Inspection Date Items Noted Corrective Action Approved By Visit www.MaltaDynamics.com for the latest user instruction manual based upon date of manufacture. MaltaDynamics.com | 800-494-1840...

  • Page 41: Warranty

    LIMITED REMEDY: Upon notice in writing, Malta Dynamics will repair or replace all defective items at Malta Dynamics’s sole discretion. Malta Dynamics reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action.
  • Page 42 MaltaDynamics.com | 800-494-1840...
  • Page 43 MaltaDynamics.com | 800-494-1840...
  • Page 44 800-494-1840 MaltaDynamics.com 210 13th Street Malta, OH 43758 USA MaltaDynamics.com | 800-494-1840...
