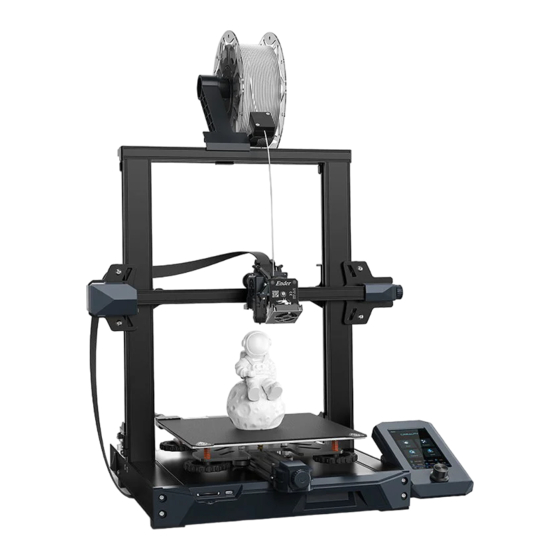

3D Printer Quick Installation Guide
Ender-3 S1
For a better experience in using our product, you can also learn how to use the Printer in the following ways: View
V1.1
the accompanied instructions and videos in the Storage card.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ender-3 S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ender Ender-3 S1

  • Page 1 3D Printer Quick Installation Guide Ender-3 S1 For a better experience in using our product, you can also learn how to use the Printer in the following ways: View V1.1 the accompanied instructions and videos in the Storage card.
  • Page 2 1 Notes Do not use the printer any way other than described herein in order to avoid personal injury or property damage. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
  • Page 3: Interface Descriptions

    Hexagon socket flat Hexagon socket Hexagon socket head Z-axis limit switch round head screw head cap screw spring washer combination kit x1 M4x18 X4 M3x6 X5 screw M5x45 X5 Tips: the above accessories are for reference only, in kind prevail! 4 Interface Descriptions 4.1 Description of Mainboard interfaces and Connections 30P Flexible Flat...
  • Page 4: Product Installation

    5 Product installation 5.1 Nozzle assembly and wire clamp installation Place the nozzle assembly on the mounting back panel of the extruder, pre-lock with four M3x6 hexagon socket head cap screw, and then tighten to fix it. Clip the wire clamp to the back panel of the X-axis motor. 5.2 Gantry frame installation Move the right profile of the bottom component out of the desktop about 35mm, and expose the installation holes.
  • Page 5 5.3 Display installation Place the display bracket on the side of the right profile, and tighten it with three M4X18 hexagon flat round head screws. Align the pins on the back of the display with the large holes of the display bracket and insert them, and then slide down to tighten it.
  • Page 6 Connect the nozzle to the 24pin port as shown in the figure. Connect the X and Z axis stepper motors according to the yellow label on 6pin (4 wires) port. Connect the X-axis limit switch as indicated by the yellow label on the 3pin (2 wires) port. Connect 3pin (3 wires) 2.0 port to the keysets, and 3pin (3 wires) 2.54 port to the filament detector.
  • Page 7 7 Auxiliary leveling (When the inclination of the printing platform is larger than 2mm, CR-Touch leveling will fail. Please use the auxiliary leveling) Enter “Control → Reset configuration” to reset the printer parameters. Enter “Prepare→ Auto Home” and return to the starting position. Enter “Prepare →...
  • Page 8 Enter “Prepare → Disable stepper” to turn off all enabled motors. Adjust the knob at the bottom of the hot bed, move the nozzle to the four corners of the printing platform, so that the height of the nozzle to the printing platform is almost the thickness of A4 paper (0.08-0.1mm) to ensure that the four corners are leveled.
  • Page 9: Load Filaments

    8 Load Filaments In order to complete the loading smoothly, please trim the end of the filaments to an inclination of 45°. First pass the filament through the filament detector hole, then press the handle of the extruder, and insert the filament along the extruder hole until the nozzle position.
  • Page 10 Select Printer (Ender-3 S1) Enter the corresponding parameters → Close Load Creality Slicer Load File Open Creality Slicer Select File Insert Memory Card User the screen Generate G code → Save to memory card knob to select the menu Select the desire print file.
  • Page 11: Equipment Introduction

    10 Equipment Introduction Y-axis Belt Tension Adjustment X-axis Limit Switch Filament Sensor Knob Nozzle Assembly X-axis Belt Tension Adjustment Knob Coupler Auto Leveling Assembly Display Z-axis Motor Z1 Printing Platform Z-axis Motor Z2 Power Switch Y-Axis Limit Switch Memory Card Slot Voltage Toggle Switch Type-C Connection Power Socket...
