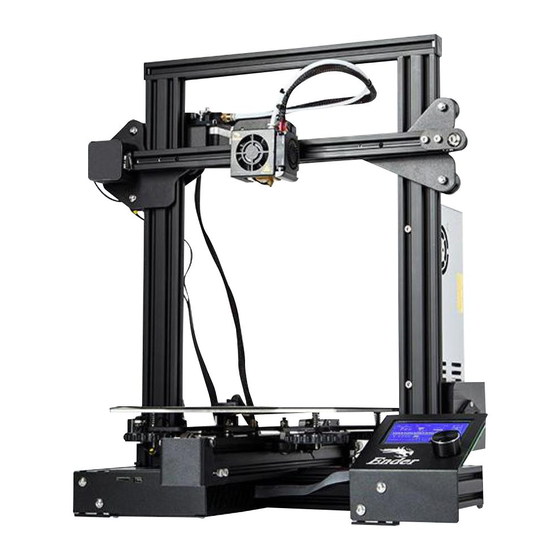

Ender-3 Pro 3D Printer
• Instructions for assembly
◆ This guide is for the Ender-3 Pro 3D printer.
◆ Select the correct input voltage to match your
local mains (230V or 115V).
◆ Because of software/hardware upgrades and
model differences, new revisions may not be
listed in this guide.
◆ Please plug the Power cord into a three-hole
power jack.
◆ Detailed instructions for use are available on
the SD card.
V1.0
Advertisement
Related Manuals for Ender Ender-3 Pro
Summary of Contents for Ender Ender-3 Pro
- Page 1 Ender-3 Pro 3D Printer • Instructions for assembly ◆ This guide is for the Ender-3 Pro 3D printer. ◆ Select the correct input voltage to match your local mains (230V or 115V). ◆ Because of software/hardware upgrades and model differences, new revisions may not be listed in this guide.
- Page 2 a. Remove the parts from the box and remove any tape and padding from the parts. Inspect the parts to make sure they were not damaged in shipment. b. Check the items on List 1 and List 2. The wiring harness of component (Ba) and component (N) has already been connected.
- Page 3 Prepare the following parts: a. M5x45 socket head hex screws (4x) b. M5 washer (4x) c. Aluminum profiles (L) (1x) d. Aluminum profiles(R) (1x) e. Base (Ba) (1x) f. 4mm Allen key Keep the direction of the base (Ba) facing front； Place the aluminum profile (L) vertically over the left side frame of the base (Ba), be careful that the (L) profile has the threaded holes with the short sides facing downwards.
- Page 4 Prepare the following parts: a. M5x8 hex drive rounded head screws (2x) b. Operation screen assembly(S) (1x) c. M4x20 socket head hex screws (2x) 115V d. Switching power supply assembly（P）- (1x) e. 3mm Allen key 230V *Select the correct input voltage to match your local mains (230V or 115V).
- Page 5 Prepare limit switch assembly (ZI) and 3mm Allen key； The direction of the base (Ba) stays at the front, and the switch assembly (ZI) is mounted on the left side of the base (Ba) (as shown in the diagram on the)； Loosen the T-nut by hand until it is at the end of the threads, but not so far it might fall off.
- Page 6 Prepare the following parts: a. T8 Acme lead screw (1x) b. M4x18 hex drive flat head screws (2x) c. Z-axis motor assembly (Zm) (1x) d. 2.5mm Allen key Rotate base (Ba) 180°until the back is facing towards you. Position the hole of Z-axis motor assembly at the threaded hole of the aluminum profile (L) in the base (Ba), secure with M4*18 screws, and use the Allen key to tighten the screws.
- Page 7 Prepare the following parts: a. Aluminum profiles(B1)-(1x) b.M4x16 Hex drive rounded head screws (4x) c. M4 Washer (4x) d. Extrusion assembly (E) (1x) e. Nozzle kit (N)-(1x). The wiring harness of component (N) and component (Ba) has already been connected. f.
- Page 8 Assembly of aluminum profile (B1) and extrusion assembly (E). Aluminum profile (B1) is shown in the diagram on the left(1). Pay attention to the position and direction of the large hole. Align the hole of extrusion assembly (E) with the threaded hole of aluminum profile (B1), it should be noted that the hole has two plates, which aresecured with M4*16 screws, and fixed to the second profile plate...
- Page 9 Prepare belt tensioner assembly (K1) and 3mm Allen key. Rotate the X-axis assembly 180°horizontally. Pick up the belt tensioner assembly (K1). Loosen the T-nut by hand until it is at the end of the threads, but not so far it might fall off. Then, fit into the slot in the aluminum profile.
- Page 10 Prepare 2mm and 2.5mm Allen key. The direction of the base (Ba) keeps the end in front and rotates the X-axis assembly horizontally by 180°. Align the pulleys on both ends of the X-axis assembly with the aluminum chute on the base (Ba). Align the screw rod with the nuts in the extrusion assembly (E).
- Page 11 Prepare the following parts: a. M5x25 socket head hex screws (4x) b. M5 Washer (4x) c. Profile end caps(C)-(2x) d. Aluminum profiles (B2)-(1x) e. 4mm Allen key Take out the aluminum profile (B2), pay attention to the counterbore hole at the top (see the figure on the left), align the aluminum profile (B2) hole with the threaded hole of the base (Ba), use the M5*25 screw and washer, from the top go...
- Page 12 (R2). Hand- unscrew the M5 T-nut until it it is on the last few threads of the screew. Align the T-nut with the top aluminum profile groove and tighten with an Allen key. The Ender-3 mechanical part installation has been completed.
- Page 13 Rotate the printer by 90º Find the letters on the 1/2/4/7/8 wire harnesses, as shown on the left, and insert it according to the position indicated by the red arrow on the drawing. After the insertion, gently pull on it to insure it’s firmly seated.
- Page 14 Shenzhen Creality3D Technology CO.,LTD. After-Sales Service Tel: +86 400 6133 882 +86 755 8523 4565 O f f i c i a l W e b s i t e : www.creality3d.cn C o m p a n y A d d r e s s : 12th Floor, Building No.3, Jinchengyuan Industrial Area, Tongsheng Community, Dalang Street, Longhua District, Shenzhen...
