Download Print this page
Ender 3 Series User Manual
Hide thumbs Also See for 3 Series:

Advertisement

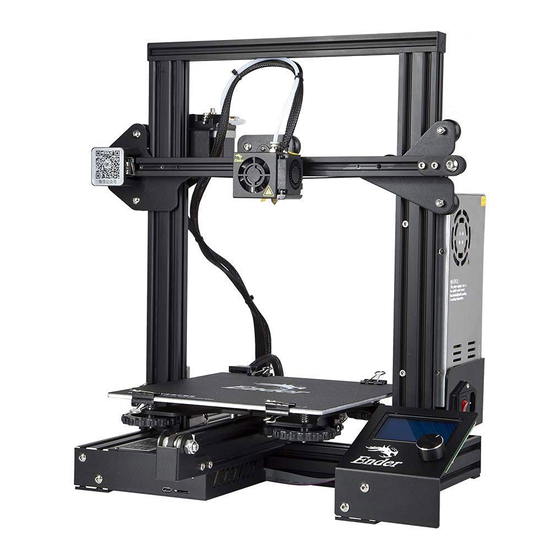

Ender 3 Series 3D Printer
User Manual
◆ This Manual is for the Ender 3 Series of 3D printers.
◆ Select the correct input voltage to match your local mains
(230V or 115V)
◆ Because of software/hardware upgrades and model
differences, new revisions may not be listed in this guide.
◆ Detailed instructions for use are available on the TF card.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ender 3 Series

  • Page 1 Ender 3 Series 3D Printer User Manual ◆ This Manual is for the Ender 3 Series of 3D printers. ◆ Select the correct input voltage to match your local mains (230V or 115V) ◆ Because of software/hardware upgrades and model differences, new revisions may not be listed in this guide.
  • Page 2 Notes 1. Do not use the printer in other wrong ways to avoid personal injury or property damage. 2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. 3.
  • Page 3: Table Of Contents

    Contents 1. Introduction ...……………………………1 5. Software I ns tallation ..… … … … … … 5 2. Screen Information …………………………2 6. P r e p a r i n g t o P r i n t … … … … … … … … 6 3.
  • Page 4: Introduction

    1. Introduction Control Box Display Power 13. Z Stepper TF Slot and USB Port Nozzle Assembly 10. Y Limit Switch 14. Z Limit Switch Print Surface Spool Holder 11. Y Stepper 15. X Limit Switch Control Knob Extruder (E) Stepper 12.
  • Page 5: Screen Information

    2. Screen Infromation Information Displayed Screen Options Menu Sub Menu Explanation Set temperature of the ↑Info Screen↑ ↑main↑ Return Nozzle Moving X Y Z axis by your Disable Steppers Current temperature of hands Print speed the Nozzle Auto Home Return to the origin Model Set temperature of the Preheat PLA...
  • Page 6: Loading Filament

    Loading Filament 1. Preheat 2. Feeding Method 1 Method 2 Press and hold the extruder lever then insert 1.75mm filament through the small hole of the extruder. Continue feeding until you see filament out of the nozzle. Tip:Replacing the Filament 1、Cutting filament near the Extruder and slowly feed new filament until the new filament get into the PTFE tube.
  • Page 7: Bed Leveling

    4. Bed Leveling 1. Prepare →Auto Home. Wait for the nozzle to move to the left/front of the platform. 2. Prepare→Disable Steppers 3. Move the nozzle to the front/left leveling screw and adjust the platform height by turning the knob underneath. Use a piece of A4 paper (standard printer paper) to assist with the adjustment, making sure that the nozzle lightly scratches the paper.
  • Page 8: Software Installation

    5. Software Installation 1. Double click to install the software. 2、Double click to open the software. 3. Select language→Next→Select your machine→Next→Finish.
  • Page 9: Preparing To Print

    Preparing to Print 1.Slicing Open the software→Load→Select the file→Wait for slicing to finish ,and save the gcode file to TF card. 2.Printing Insert the TF card→ Int. SD-Card → Print from SD→Select the file to be printed.
  • Page 10: Trouble Shooting

    7. Trouble shooting...
  • Page 11: Circuit Wiring Diagram

    8. Circuit Wiring Diagram...
  • Page 12 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. 12/F, Block 3, JinChengYuan, Huafan Road, Tongsheng Community, Dalang, Longhua District, Shenzhen, China, 518109  Official Website: www.creality3d.cn Tel: +86 755-2105 9455 E-mail: info@creality3d.cn  cs@creality3d.cn...
Save PDF
