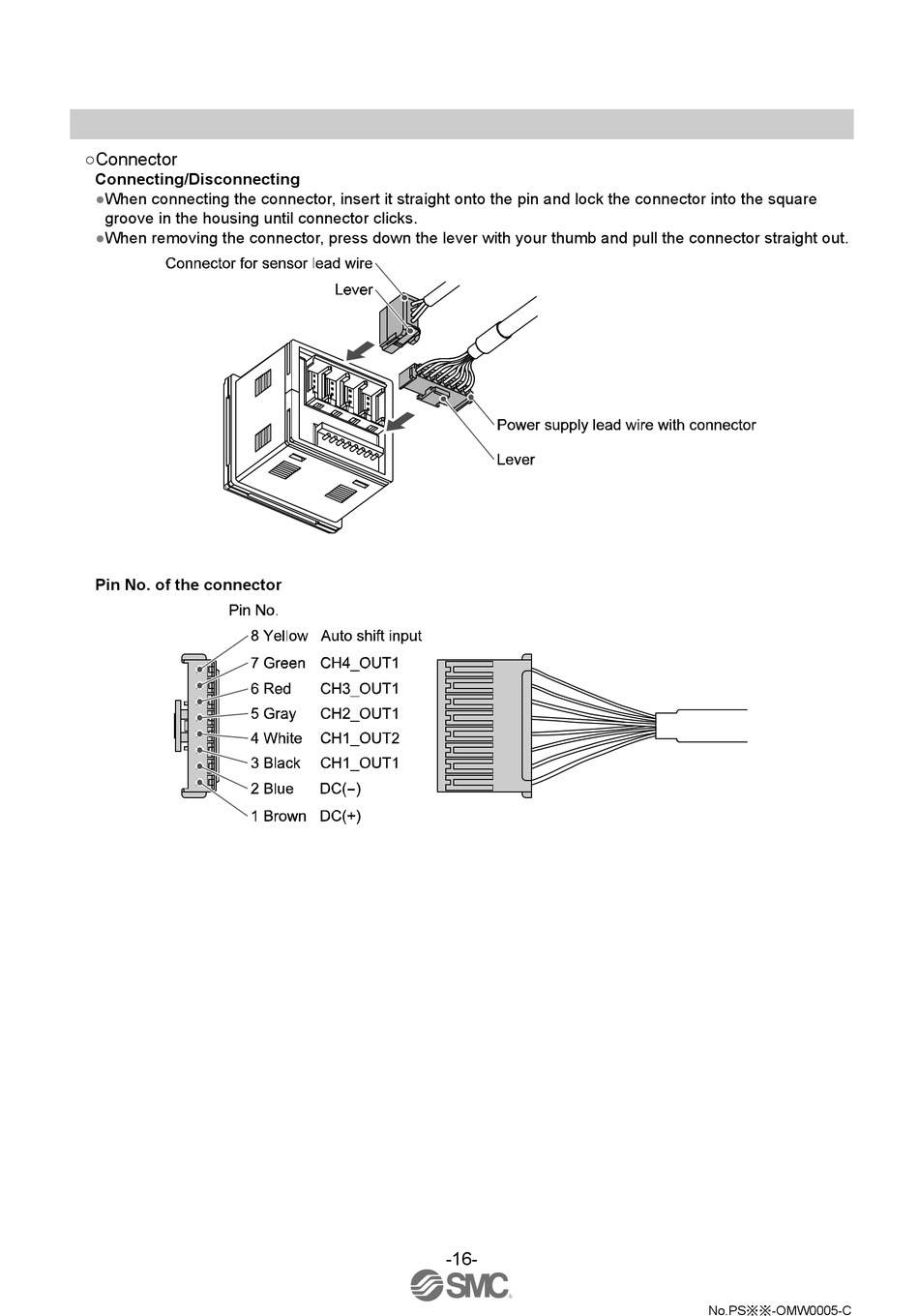

○Connector
Connecting/Disconnecting
●When connecting the connector, insert it straight onto the pin and lock the connector into the square
groove in the housing until connector clicks.
●When removing the connector, press down the lever with your thumb and pull the connector straight out.
Pin No. of the connector
-16-
No.PS※※-OMW0005-C
