Kozyard Glider Textilene Assembly Manual

Kozyard Glider Textilene Assembly Manual

Loveseat bench

Advertisement

Quick Links

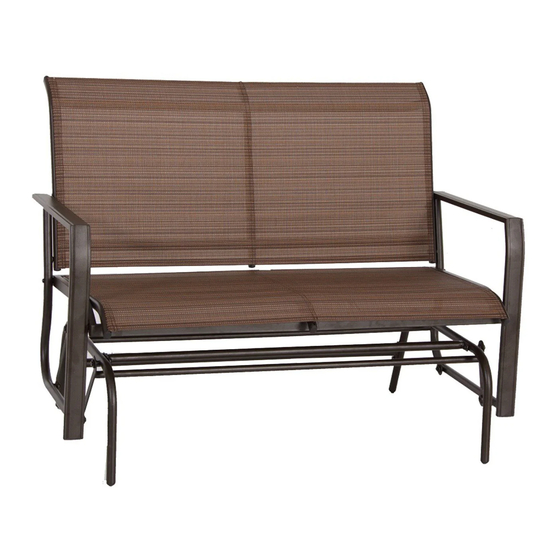

Glider Textilene loveseat
Bench
Assembly Manual
Kozyard LLC Products
www.kozyard.com
Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
Version:20231006
Assembly Instructions
Prior to assembly, ensure that you lay out and identify all
the parts listed in the parts list.
Tighten all nuts and bolts securely. Hand-tighten all bolts
before use. Avoid using power tools or applying excessive
force during assembly and bolt tightening.
If you encounter any difficulties during assembly or if any
part is missing or damaged, please don't hesitate to
contact our customer service team via email at
info@kozyard.com or by calling our toll-free number at
866-355-0018.
Care and warranty
The weight capacity of this chair is 250 lbs.
Clean the frame components and fabric with a mild soap
solution, then rinse thoroughly. Avoid using bleach, acid,
or any other solvents on either the fabric or frame compo-
nents.
For a comprehensive warranty policy, please visit
www.kozyard.com. Be aware that warranty terms can
change without prior notification.
For the best performance and safety of your chair, inspect
and tighten all bolts and fasteners regularly

Advertisement

loading
Need help?

Need help?

Do you have a question about the Glider Textilene and is the answer not in the manual?

Questions and answers

Summary of Contents for Kozyard Glider Textilene

  • Page 1 Be aware that warranty terms can Kozyard LLC Products change without prior notification. www.kozyard.com • For the best performance and safety of your chair, inspect Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved. Version:20231006 and tighten all bolts and fasteners regularly...
  • Page 2 Part list Part Description Part Description M6*40 Back Bolt M6*30 Right Arm Bolt M6*15 Left Arm Bolt Bolt M6*18 Seat Plastic washer Glider Washer Right Leg Allen Key Left Leg Leg Connector...
  • Page 3 Loveseat Connect the right arm (Part B) to the back (Part A) using Bolt (J) as shown in the diagram. Connect the left arm (Part C) to the back (Part A) using Bolt (J) as indicated in the diagram.
  • Page 4 Attach the seat (Part D) to the armrests (Part B and Part C) Loveseat using Screw (J) and Screw (I) as depicted in the diagram. Connect the gliders (Part E) to the armrests (Part B and Part C) using Screw (L), washer (N), and Plastic washer (M) as indicated in the diagram.
  • Page 5 . Connect the right leg (Part F) to the glider (Part E) using Screw (L), washer (N), and Plastic washer (M) Loveseat as illustrated in the diagram. . Connect the left leg (Part G) to the glider (Part E) using Screw (L), washer (N), and Plastic washer (M) as shown in the diagram.
  • Page 6 . Attach the leg connector (Part H) to the legs (Part F and Part G) using Screw (K) as indicated in the diagram. 866-355-0018 . Lastly, ensure that all screws are securely tightened before using the product on level ground. Kozyard LLC © Copyright 2016 - 2023 Kozyard LLC. | All Rights Reserved.
