Installation
4.6.2

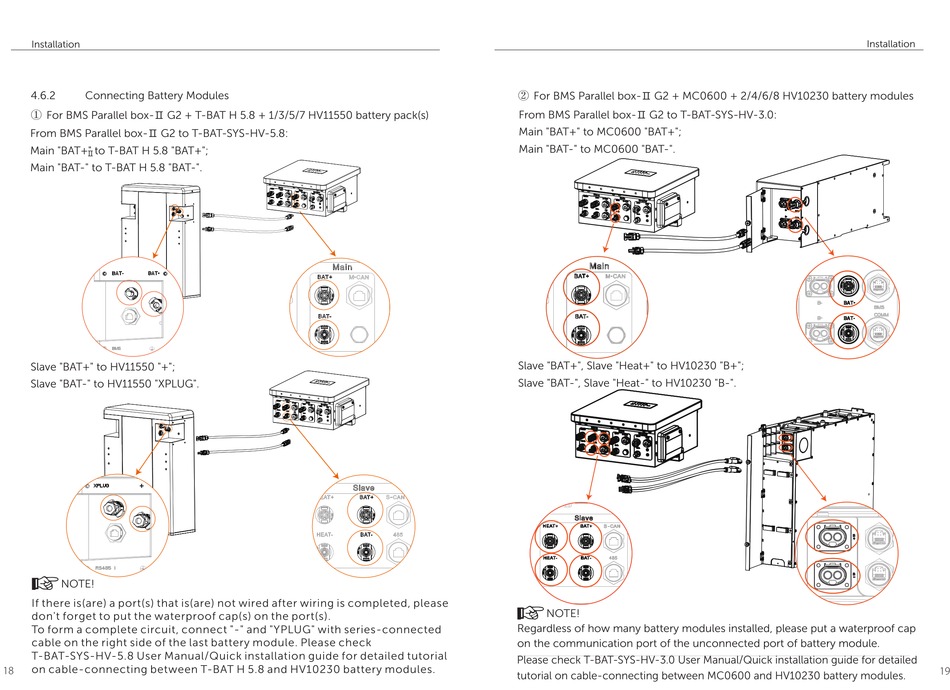

Connecting Battery Modules

①

For BMS Parallel box-
Ⅱ G2 + T-BAT H 5.8 + 1/3/5/7 HV11550 battery pack(s)
From BMS Parallel box- Ⅱ G2 to T-BAT-SYS-HV-5.8:
Main "BAT+" to T-BAT H 5.8 "BAT+";
Ⅱ
Main "BAT-" to T-BAT H 5.8 "BAT-".
Slave "BAT+" to HV11550 "+";
Slave "BAT-" to HV11550 "XPLUG".
NOTE!
If there is(are) a port(s) that is(are) not wired after wiring is completed, please
don't forget to put the waterproof cap(s) on the port(s).
To form a complete circuit, connect "-" and "YPLUG" with series-connected
cable on the right side of the last battery module. Please check
T-BAT-SYS-HV-5.8 User Manual/Quick installation guide for detailed tutorial
on cable-connecting between T-BAT H 5.8 and HV10230 battery modules.
18
②

For BMS Parallel box-
Ⅱ G2 + MC0600 + 2/4/6/8 HV10230 battery modules
Ⅱ
From BMS Parallel box- G2 to T-BAT-SYS-HV-3.0:
Main "BAT+" to MC0600 "BAT+";
Main "BAT-" to MC0600 "BAT-".
Slave "BAT+", Slave "Heat+" to HV10230 "B+";
Slave "BAT-", Slave "Heat-" to HV10230 "B-".
NOTE!
Regardless of how many battery modules installed, please put a waterproof cap
on the communication port of the unconnected port of battery module.
Please check T-BAT-SYS-HV-3.0 User Manual/Quick installation guide for detailed
tutorial on cable-connecting between MC0600 and HV10230 battery modules.
Installation
B
+
B
-
