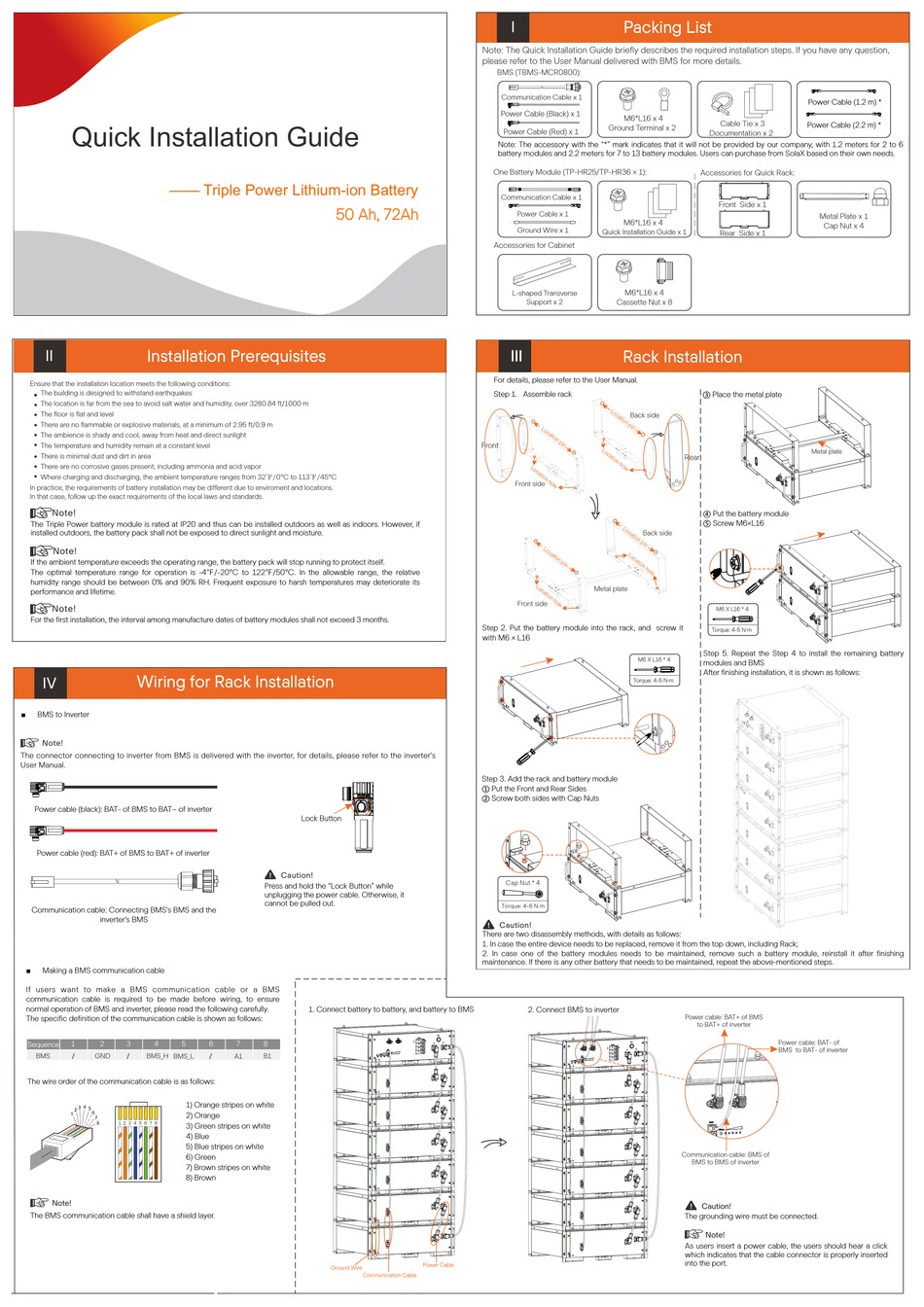

Quick Installation Guide
—— Triple Power Lithium-ion Battery
Installation Prerequisites
II
Ensure that the installation location meets the following conditions:
The building is designed to withstand earthquakes
Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ
The location is far
from
the sea to avoid salt water and humidity, over 3280.84 ft/1000 m
Ÿ
The floor is flat and level
Ÿ
There are no flammable or explosive materials, at a minimum of 2.95 ft/0.9 m
Ÿ
The ambience is shady and cool, away from heat and direct sunlight
Ÿ
Ÿ
The temperature and humidity remain at a constant level
There is minimal dust and dirt in area
Ÿ
There are no corrosive gases present, including ammonia and acid vapor
Ÿ
Ÿ
Where charging and discharging, the ambient temperature ranges from 32℉/0°C to 113℉/45°C
In practice, the requirements of battery installation may be different due to enviroment and locations.
In that case, follow up the exact requirements of the local laws and standards.
Note!
The Triple Power battery module is rated at IP20 and thus can be installed outdoors as well as indoors. However, if
installed outdoors, the battery pack shall not be exposed to direct sunlight and moisture.
Note!
If the ambient temperature exceeds the operating range, the battery pack will stop running to protect itself.
The optimal temperature range for operation is -4℉/-20°C to 122℉/50°C. In the allowable range, the relative
humidity range should be between 0% and 90% RH. Frequent exposure to harsh temperatures may deteriorate its
performance and lifetime.
Note!
For the first installation, the interval among manufacture dates of battery modules shall not exceed 3 months.
Wiring for Rack Installation
IV
BMS to Inverter
Note!
The connector connecting to inverter from BMS is delivered with the inverter, for details, please refer to the inverter's
User Manual.
Power cable (black): BAT- of BMS to BAT– of inverter
Power cable (red): BAT+ of BMS to BAT+ of inverter
Communication cable: Connecting BMS's BMS and the
inverter's BMS
Making a BMS communication cable
If users want to make a BMS communication cable or a BMS
communication cable is required to be made before wiring, to ensure
normal operation of BMS and inverter, please read the following carefully.
The specific definition of the communication cable is shown as follows:
Sequence
1
2
3
4
5
BMS
GND
BMS_H BMS_L
/
/
The wire order of the communication cable is as follows:
1) Orange stripes on white
2) Orange
1 2 3 4 5 6 7 8
3) Green stripes on white
4) Blue
5) Blue stripes on white
6) Green
7) Brown stripes on white
8) Brown
Note!
The BMS communication cable shall have a shield layer.
50 Ah, 72Ah
Lock Button
Caution!
Press and hold the "Lock Button" while
unplugging the power cable. Otherwise, it
cannot be pulled out.
1. Connect battery to battery, and battery to BMS
6
7
8
A1
B1
/
Ground Wire
Communication Cable
I
Note: The Quick Installation Guide briefly describes the required installation steps. If you have any question,
please refer to the User Manual delivered with BMS for more details.
BMS (TBMS-MCR0800):
Communication Cable x 1
Power Cable (Black) x 1
Power Cable (Red) x 1
Note: The accessory with the "*" mark indicates that it will not be provided by our company, with 1.2 meters for 2 to 6
battery modules and 2.2 meters for 7 to 13 battery modules. Users can purchase from SolaX based on their own needs.
OneBattery Module (TP-HR25/TP-HR36 × 1):
Communication Cable x 1
Power Cable x 1
Ground Wire x 1
Accessories for Cabinet
L-shaped Transverse
Support x 2
III
For details, please refer to the User Manual.
Step 1. Assemble rack
Front
Front side
Metal plate
Front side
Step 2. Put the battery module into the rack, and screw it
with M6 × L16
Step 3. Add the rack and battery module
① Put the Front and Rear Sides
② Screw both sides with Cap Nuts
Cap Nut * 4
Torque: 4-6 N·m
Caution!
There are two disassembly methods, with details as follows:
1. In case the entire device needs to be replaced, remove it from the top down, including Rack;
2. In case one of the battery modules needs to be maintained, remove such a battery module, reinstall it after finishing
maintenance. If there is any other battery that needs to be maintained, repeat the above-mentioned steps.
2. Connect BMS to inverter
Power Cable
Packing List
M6*L16 x 4
Cable Tie x 3
Ground Terminal x 2
Documentation x 2
Accessories for Quick Rack:
Front Side x 1
M6*L16 x 4
Quick Installation Guide x 1
Rear Side x 1
M6*L16 x 4
Cassette Nut x 8
Rack Installation
③ Place the metal plate
Back side
Rear
④ Put the battery module
⑤ Screw M6×L16
Back side
M6 X L16 * 4
Torque: 4-5 N·m
Step 5. Repeat the Step 4 to install the remaining battery
M6 X L16 * 4
modules and BMS
After finishing installation, it is shown as follows:
Torque: 4-5 N·m
Power cable: BAT+ of BMS
to BAT+ of inverter
Communication cable: BMS of
BMS to BMS of inverter
Caution!
The grounding wire must be connected.
Note!
As users insert a power cable, the users should hear a click
which indicates that the cable connector is properly inserted
into the port.
Power Cable (1.2 m) *
Power Cable (2.2 m) *
Metal Plate x 1
Cap Nut x 4
Metal plate
Power cable: BAT- of
BMS to BAT- of inverter
