Quick Installation Guide
SOLAX BOX
I

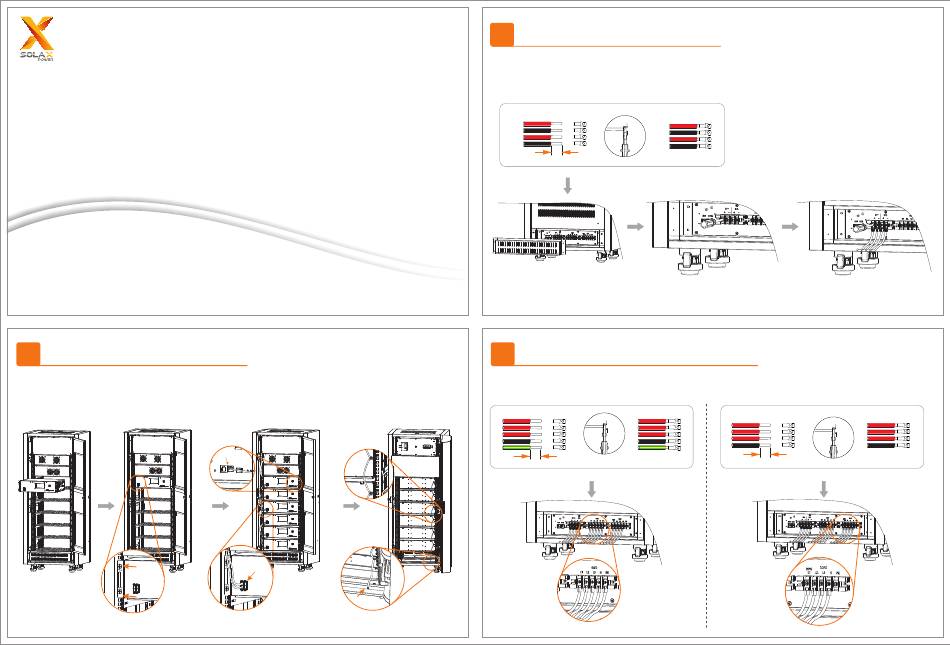

Battery System Installation
Step1: Open the door from back of SOLAX BOX with dedicated key. Put batteries into SOLAX BOX on the right position.
Step2: Lock battery on both sides of bridge and screw it tightly.
Step3: Insert battery connectors (tied on the left bridge) into BAT ports of the battery.
Step4: Insert communication cable into RS232 port of the battery.
Step5: Open the front door, to connect the PE wires of batteries one by one. And connect the last one to ground terminal, which is on the bottom of the cabinet.
Step1
Step2
www.solaxpower.com
RS232 port
BAT ports
ground terminal
Step3,4
II
PV Port Installation
Step1: Make wires.
Step2: Remove the screws and take off the cover plate.
Step3: Remove the screws on terminal block.
Step4: Fit the wires into the terminal block accordingly and tighten the screws.
12 AWG
( 5-6 )
PV 1+
PV 1-
PV 2+
PV 2-
10 mm
Step2
III
Grid Port & Load Port Installation
Step1: Make wires.
Step2: Connect wires as the same with PV wire connection.
4 AWG
( 14-6 )
L1
L2
L3
N
PE
10 mm
Step1
Grid Port
Step5
Step2
Crimp!
Step1
Step3
4 AWG
Crimp!
L1
L2
L3
N
10 mm
Load Port
Step4
( 14-6 )
Crimp!
Step1
Step2
