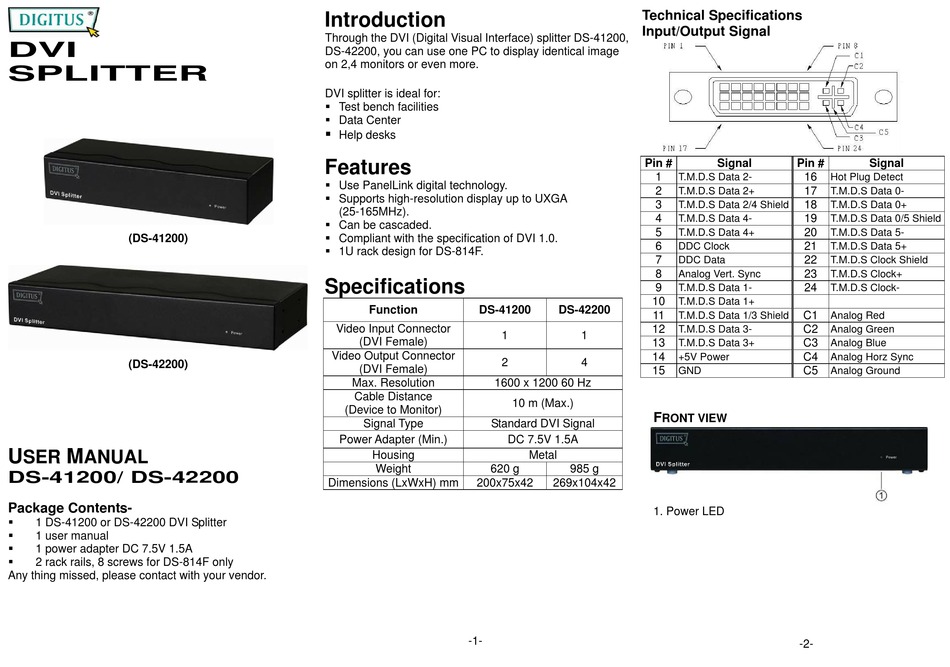

Digitus DS-41200 User Manual

DVI
SPLITTER
(DS-41200)
(DS-42200)
U M
SER ANUAL
DS-41200/ DS-42200
Package Contents-

1 DS-41200 or DS-42200 DVI Splitter

1 user manual

1 power adapter DC 7.5V 1.5A

2 rack rails, 8 screws for DS-814F only
Any thing missed, please contact with your vendor.
Introduction
Through the DVI (Digital Visual Interface) splitter DS-41200,
DS-42200, you can use one PC to display identical image
on 2,4 monitors or even more.
DVI splitter is ideal for:
 Test bench facilities
 Data Center

Help desks
Features
 Use PanelLink digital technology.
 Supports high-resolution display up to UXGA
(25-165MHz).
 Can be cascaded.
 Compliant with the specification of DVI 1.0.
 1U rack design for DS-814F.
Specifications
Function DS-41200
Video Input Connector
1
(DVI Female)
Video Output Connector
2
(DVI Female)
Max. Resolution 1600 x 1200 60 Hz
Cable Distance
(Device to Monitor)
Signal Type Standard DVI Signal
Power Adapter (Min.)
Housing
Weight 620 g
Dimensions (LxWxH) mm 200x75x42
-1-
Technical Specifications
Input/Output Signal
Pin #
1 T.M.D.S Data 2-
2 T.M.D.S Data 2+
3 T.M.D.S Data 2/4 Shield
4
T.M.D.S Data 4-
5
T.M.D.S Data 4+
6
DDC Clock
7 DDC Data
8 Analog Vert. Sync
9
T.M.D.S Data 1-
10
T.M.D.S Data 1+
DS-42200
11
T.M.D.S Data 1/3 Shield
12 T.M.D.S Data 3-
1
13 T.M.D.S Data 3+
14 +5V Power
4
15
GND
10 m (Max.)
F
RONT VIEW
DC 7.5V 1.5A
Metal
985 g
269x104x42

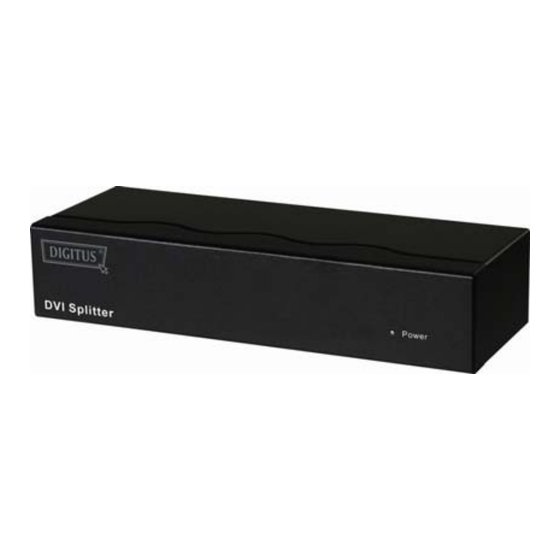

1. Power LED
Signal Pin # Signal
16 Hot Plug Detect
17 T.M.D.S Data 0-
18 T.M.D.S Data 0+
19
T.M.D.S Data 0/5 Shield
20
T.M.D.S Data 5-
21
T.M.D.S Data 5+
22 T.M.D.S Clock Shield
23 T.M.D.S Clock+
24
T.M.D.S Clock-
C1
Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horz Sync
C5
Analog Ground
-2-
