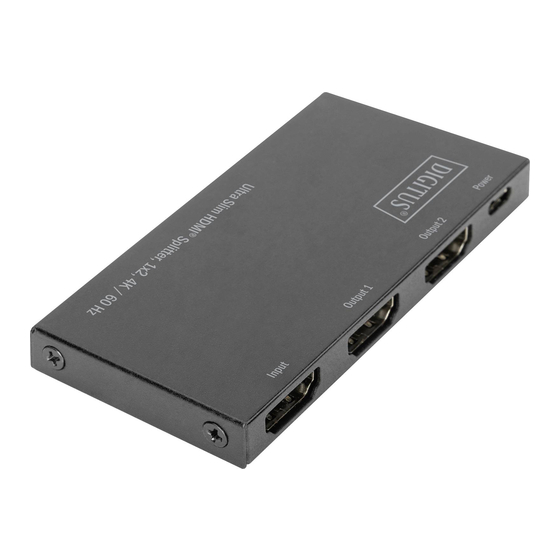

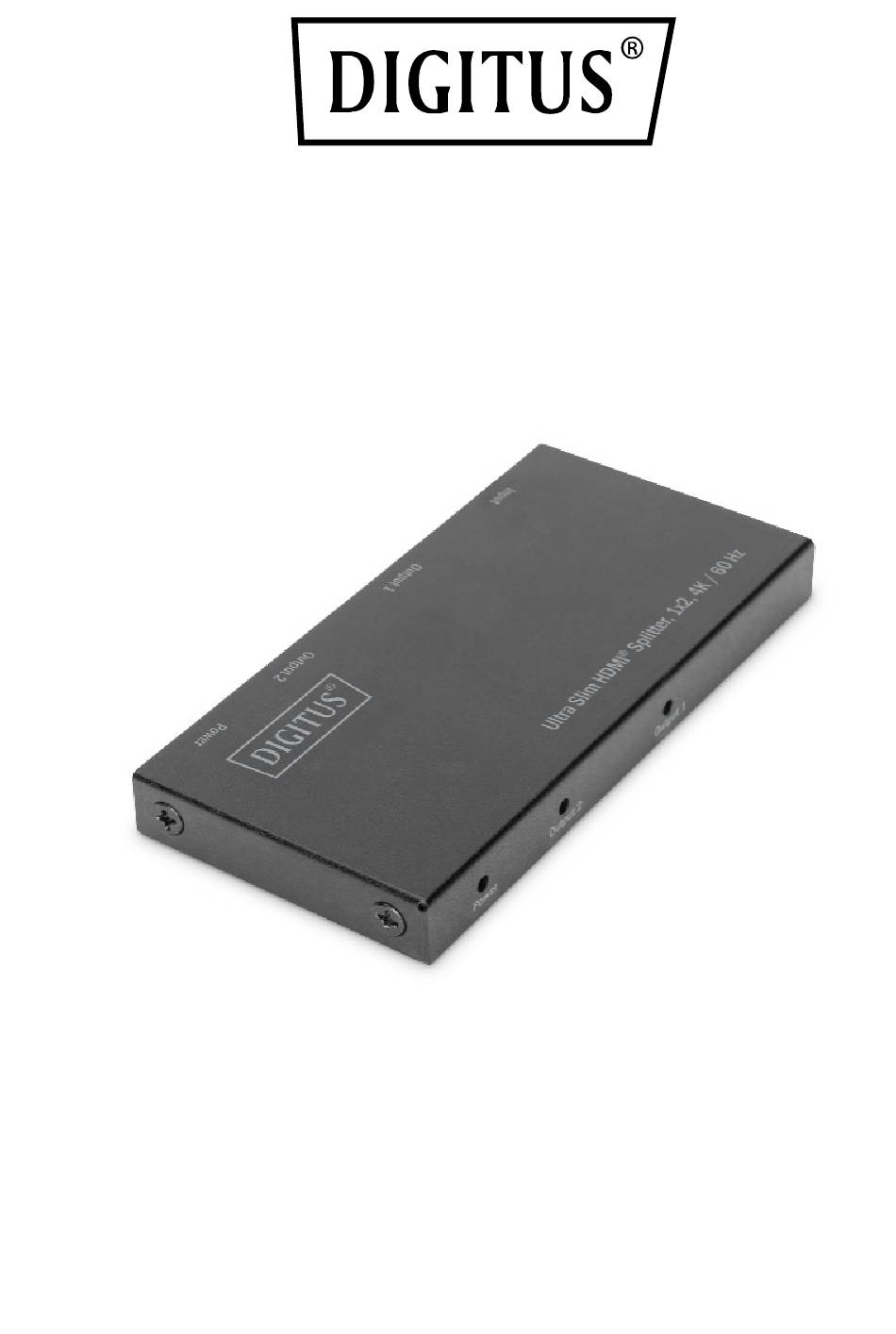

- Page 1 Ultra Slim HDMI ® Splitter, 1x2, 4K / 60 Hz User Manual DS-45322...
- Page 2 Contents 1. INTRODUCTION ................2 2. FEATURES..................3 3. SPECIFICATIONS ................3 4. PACKAGE CONTENT ................. 4 5. CONNECTION AND OPERATION ............4 6. CONNECTION DIAGRAM ..............5 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product.
- Page 3 2. Features • Splits one HDMI signal on two displays - supports UHD 4K / 60 Hz with • Resolutions of up to 4K / 60 Hz (4:4:4) • Full 18 Gbps - for a crystal clear display of UHD contents •...
- Page 4 Storage Humidity 5 % to 90 % RH (no condensation) Power Requirement External Power Supply DC 5V/ 1A Power Consumption (Max) ESD Protection ±8 kV (air-gap discharge) & Human Body Model ±4 kV (contact discharge) 4. Package Content Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: •...
- Page 5 6. Connection Diagram HDMI® Source HDMI® Display 4K / 60 Hz Power Adapter Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
