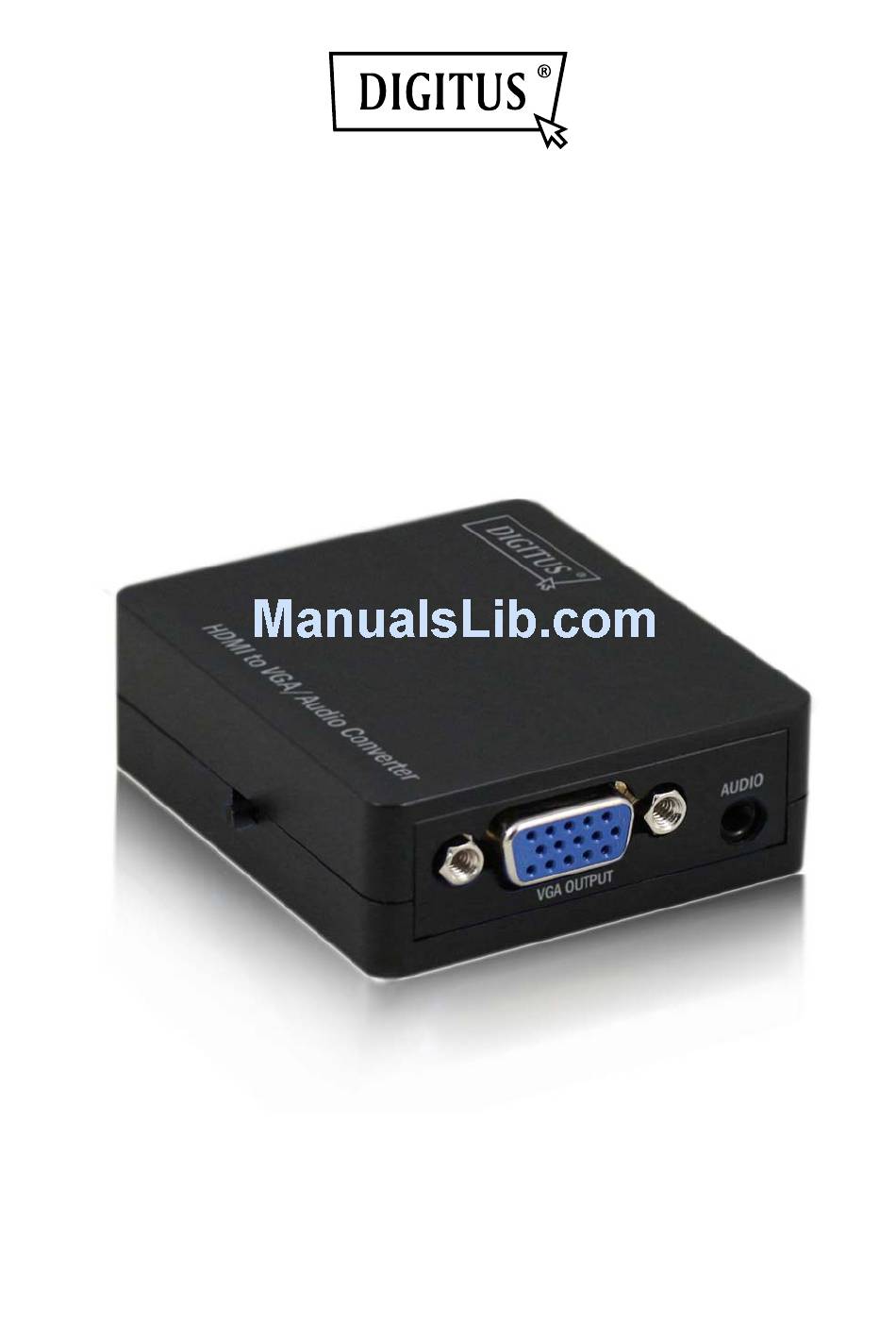

- Page 1 HDMI to VGA + Audio Multimedia Converter Manual DS-40310-1...

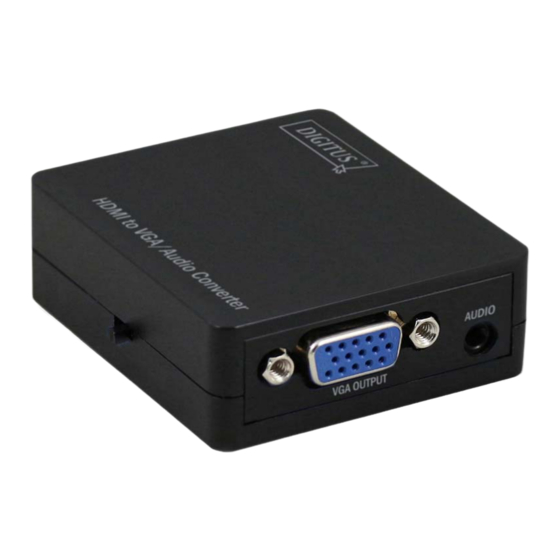

- Page 2 HDMI to VGA + Audio Multimedia Converter 1.0 Introduction The DS-40310-1 converts your digital HDMI signal to an analog VGA signal. This would enable you to use HDMI players with VGA displays. The Multimedia converter does not only transfer the video signal, but also extract the audio to a 3.5mm audio jack port.
- Page 3 3.0 Specifications Signal Input HDMI Signal Input Video Signal 0.5-1.0volts/p-p Output Video VGA signal DTV/HDTV 480P/576P/720P/1080P Video. Amplifier Bandwidth 2.25Gbps/225MHz Vertical Frequency Range 60Hz Progressive Resolutions(60Hz) 480p,576p,720p,1080p Operating Temperature 0℃ to 70℃ Operating Humidity 10% to 85% RH (no condensation) Storage Temperature -10℃...
- Page 4 5.0 Panel Descriptions 6.0 Connection and Operation...
