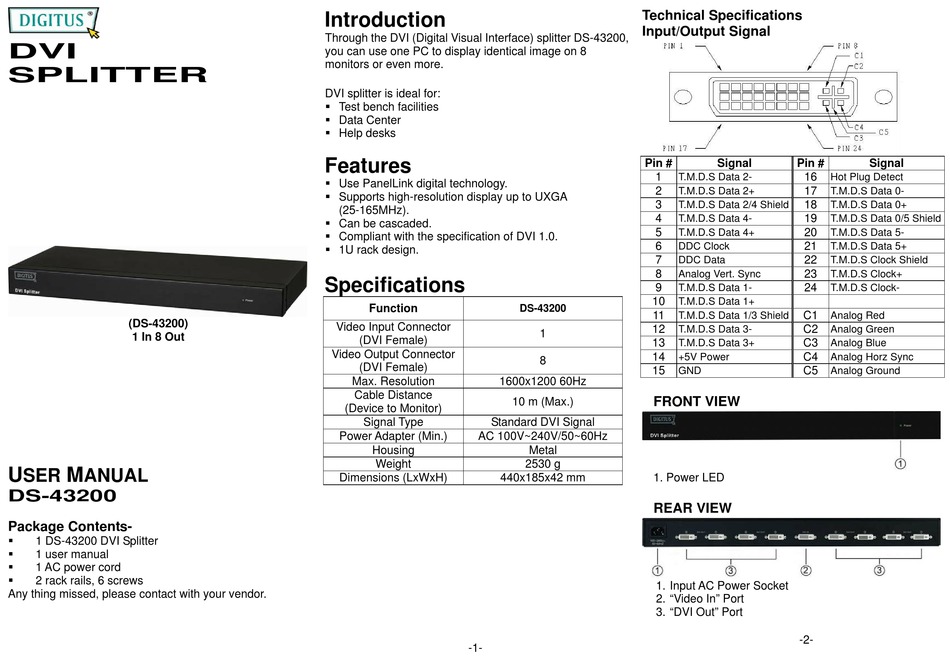

Digitus DS-43200 User Manual

DVI
SPLITTER
(DS-43200)
1 In 8 Out
U M
SER ANUAL
DS-43200
Package Contents-

1 DS-43200 DVI Splitter

1 user manual

1 AC power cord

2 rack rails, 6 screws
Any thing missed, please contact with your vendor.
Introduction
Through the DVI (Digital Visual Interface) splitter DS-43200,
you can use one PC to display identical image on 8
monitors or even more.
DVI splitter is ideal for:
 Test bench facilities
 Data Center
 Help desks
Features
 Use PanelLink digital technology.
 Supports high-resolution display up to UXGA
(25-165MHz).
 Can be cascaded.
 Compliant with the specification of DVI 1.0.
 1U rack design.
Specifications
Function
Video Input Connector
(DVI Female)
Video Output Connector
(DVI Female)
Max. Resolution 1600x1200 60Hz
Cable Distance
(Device to Monitor)
Signal Type Standard DVI Signal
Power Adapter (Min.) AC 100V~240V/50~60Hz
Housing
Weight
Dimensions (LxWxH) 440x185x42 mm
-1-
Technical Specifications
Input/Output Signal
Pin #
1 T.M.D.S Data 2-
2 T.M.D.S Data 2+
3 T.M.D.S Data 2/4 Shield
4
T.M.D.S Data 4-
5
T.M.D.S Data 4+
6
DDC Clock
7 DDC Data
8 Analog Vert. Sync
9
T.M.D.S Data 1-
10
T.M.D.S Data 1+
DS-43200
11
T.M.D.S Data 1/3 Shield
12 T.M.D.S Data 3-
1
13 T.M.D.S Data 3+
14 +5V Power
8
15
GND
10 m (Max.) FRONT VIEW
Metal
2530 g
1. Power LED
REAR VIEW
1. Input AC Power Socket
2. "Video In" Port
3. "DVI Out" Port
Signal Pin # Signal
16 Hot Plug Detect
17 T.M.D.S Data 0-
18 T.M.D.S Data 0+
19
T.M.D.S Data 0/5 Shield
20
T.M.D.S Data 5-
21
T.M.D.S Data 5+
22 T.M.D.S Clock Shield
23 T.M.D.S Clock+
24
T.M.D.S Clock-
C1
Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horz Sync
C5
Analog Ground
