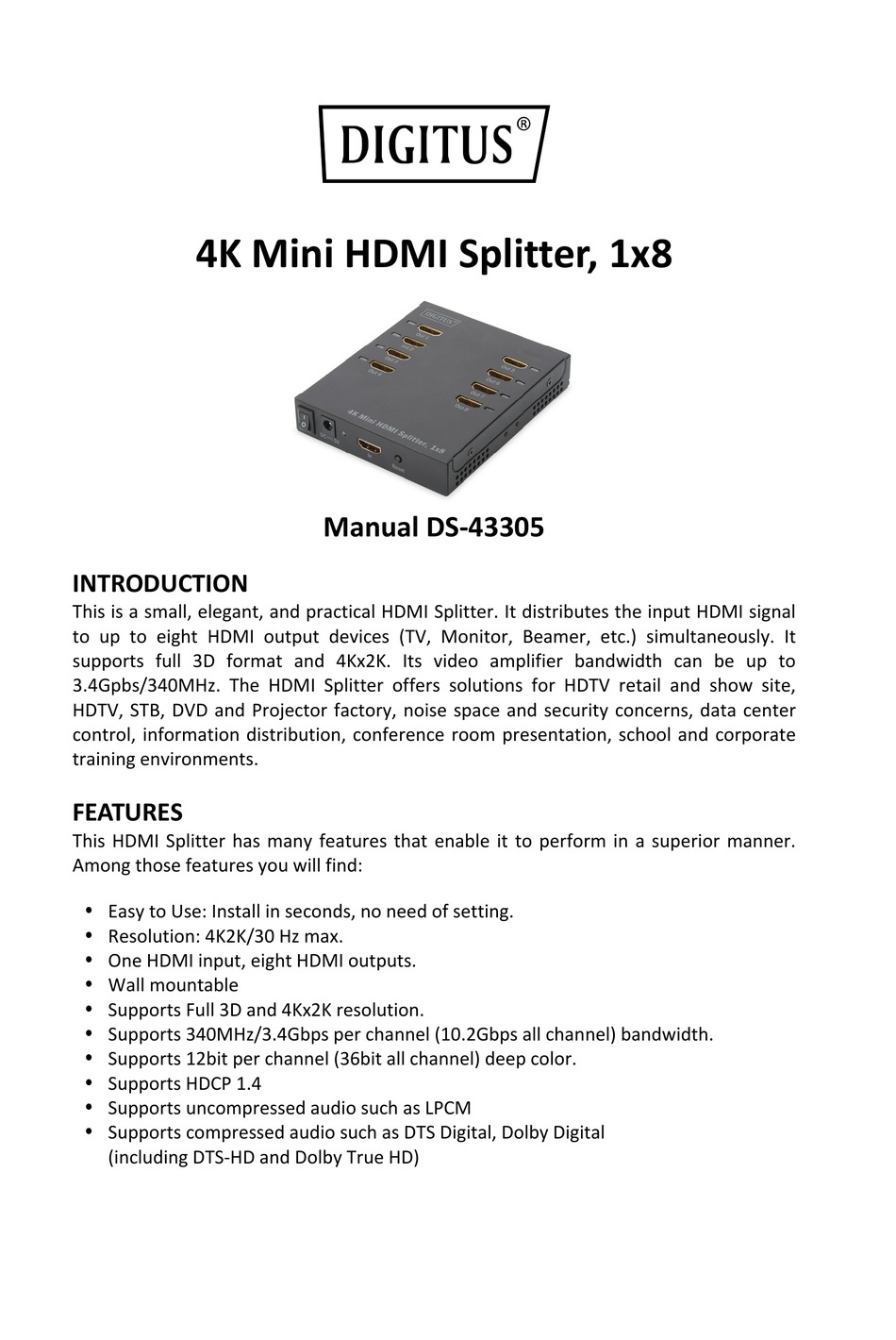

Digitus DS-43305 Manual

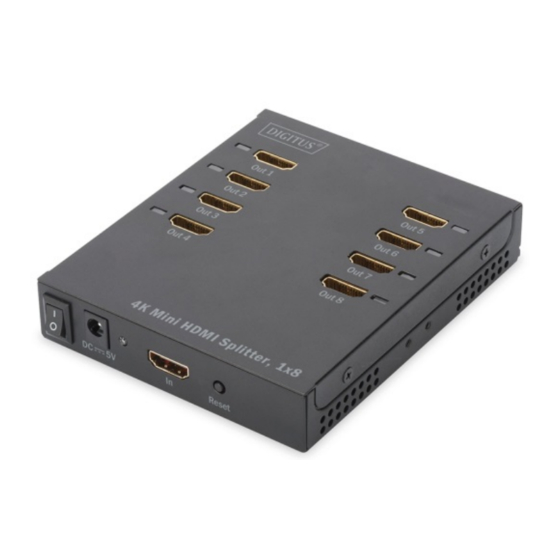

4K Mini HDMI Splitter, 1x8
INTRODUCTION
This is a small, elegant, and practical HDMI Splitter. It distributes the input HDMI signal
to up to eight HDMI output devices (TV, Monitor, Beamer, etc.) simultaneously. It
supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to
3.4Gpbs/340MHz. The HDMI Splitter offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise space and security concerns, data center
control, information distribution, conference room presentation, school and corporate
training environments.
FEATURES
This HDMI Splitter has many features that enable it to perform in a superior manner.
Among those features you will find:
 Easy to Use: Install in seconds, no need of setting.
 Resolution: 4K2K/30 Hz max.
 One HDMI input, eight HDMI outputs.
 Wall mountable
 Supports Full 3D and 4Kx2K resolution.
 Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
 Supports 12bit per channel (36bit all channel) deep color.
 Supports HDCP 1.4
 Supports uncompressed audio such as LPCM
 Supports compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
Manual DS-43305
