- Page 1 Digital to Analog Audio Converter Manual DS-40133 Rev. 2...

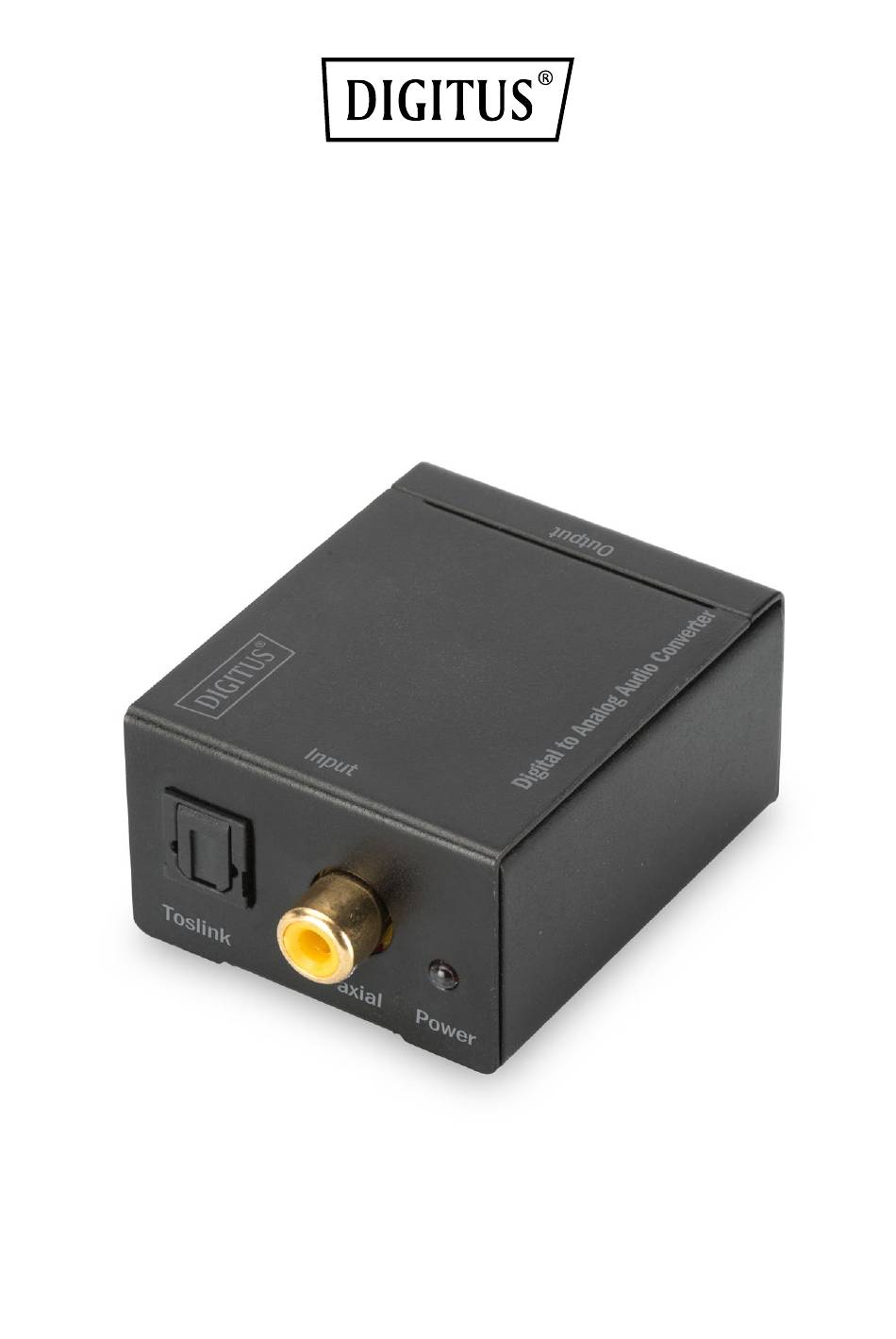

- Page 2 Digital to Analog Audio Converter Thank you for purchasing this Audio Converter. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference 1.0 Introduction The converter converts your digital audio signal (coaxial or optical TOSLINK input) into an analog signal (cinch stereo output).

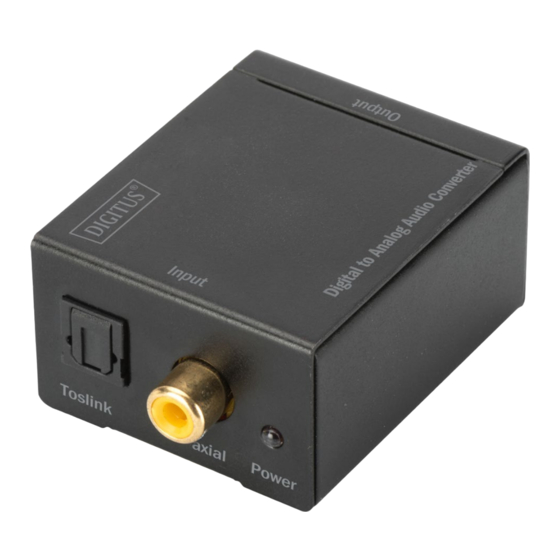

- Page 3 4.0 Panel Description Digital to Analog Audio Converter 5.0 Specifications Signal Input/ Output Input Audio format Digital Audio Output Audio format Analog Audio Audio Connector Input Audio Connector 1 x Toslink,1 x RCA(coaxial) Output Audio Connector 2 x RCA(R/L) Sampling Rate 32,44.1,48 and 96KHz Mechanical Size(L-W-H)
- Page 4 6.0 Connection and Operation Before installation, please make sure all devices you wish to connect have been turned off Connect the audio source device to the Converter with appropriate Toslink or Coaxial cable Connect the A/V Receivers or Amplifiers to the Converter with appropriate R/L cinch cable ...
