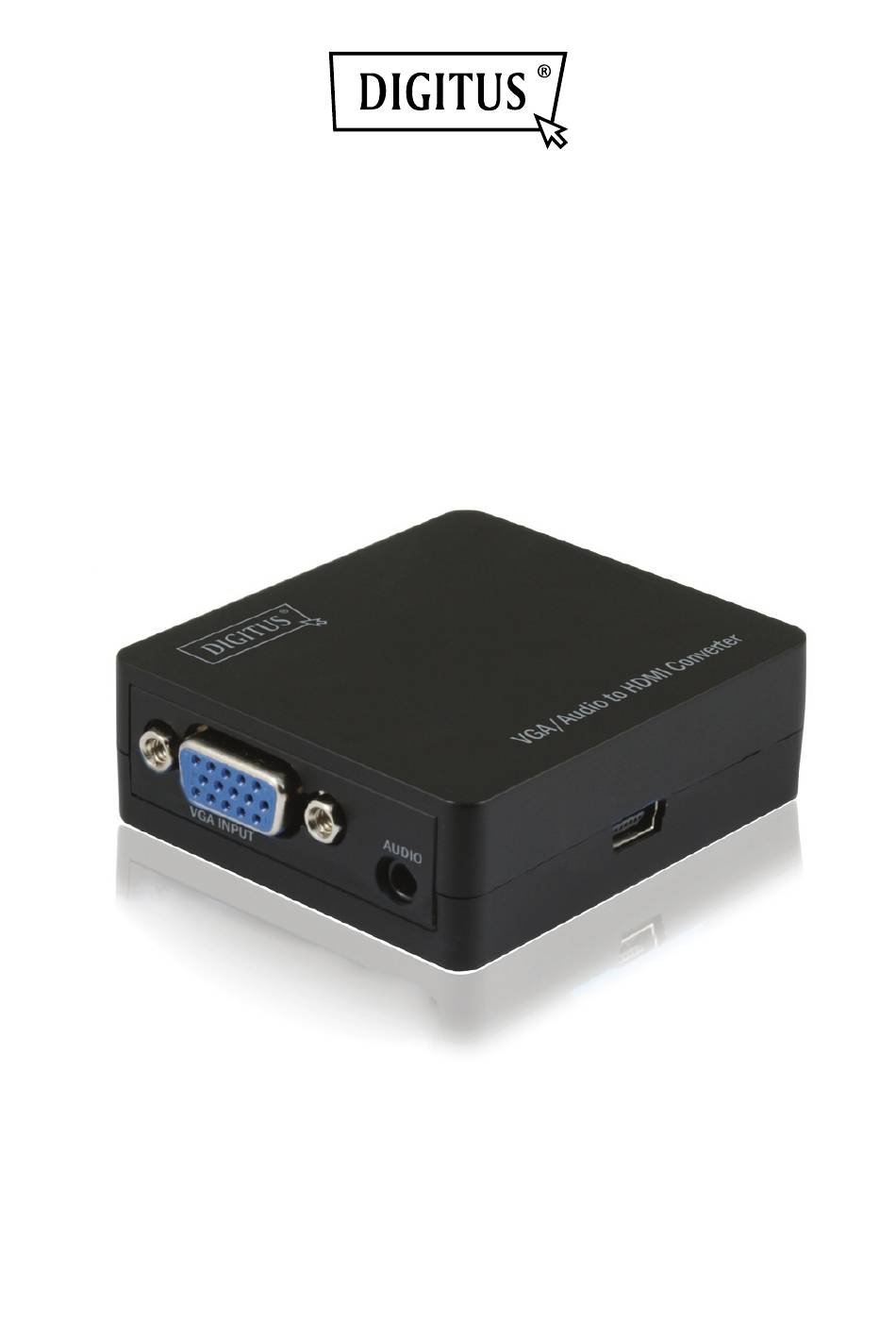

- Page 1 VGA + Audio to HDMI Multimedia Converter Manual DS-40131...

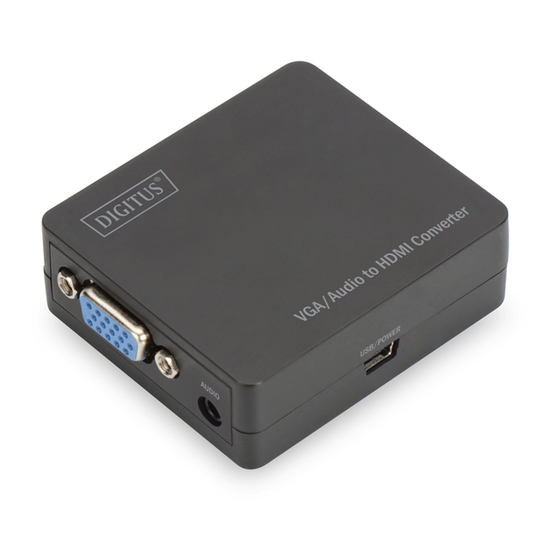

- Page 2 VGA + Stereo to HDMI Multimedia Converter 1.0 Introduction The DS-40131 converts your analog VGA to a digital HDMI signal. Thus enables you to connect your devices with VGA port to a HDMI monitor, TV or video projector. The VGA input just transfers the video signal, so the converter has an additional audio jack port.
-
Page 3: Specifications
3.0 Specifications Signal Input VGA Signal Input Video Signal 0.5-1.0 volts p-p Output Video HDMI signal 480i/576i/480p/576p/720p/1080i/ DTV/HDTV 1080p Video Amplifier Bandwidth 2.25Gbps/225MHz Vertical Frequency Range 50/60Hz Interlaced Resolutions(50&60Hz) 480i,576i,1080i Progressive Resolutions(50&60Hz) 430p,576p,720p,1080p 0℃ to 70℃ Operating Temperature Operating Humidity 10% to 85% RH (no condensation) -10℃... - Page 4 5.0 Panel Descriptions 6.0 Connection and Operation 1) Connect the VGA and stereo Audio source to the Input of the Converter 2) Connect the HDTV to the output of converter via HDMI cable 3) Plug one power supply into the Converter Attention: Insert /Extract cable gently 6.1 Connection Diagram...
