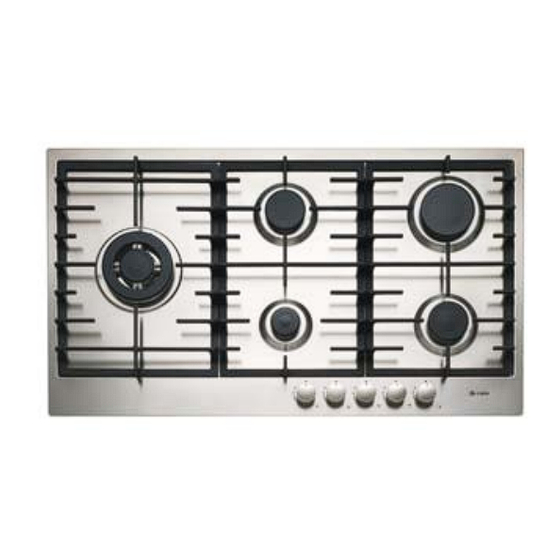

Instruction manual for gas hobs
Model code: C848G
Model code: C866G
Model code: C873G
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C848G and is the answer not in the manual?

Questions and answers

Related Manuals for Caple C848G

Summary of Contents for Caple C848G

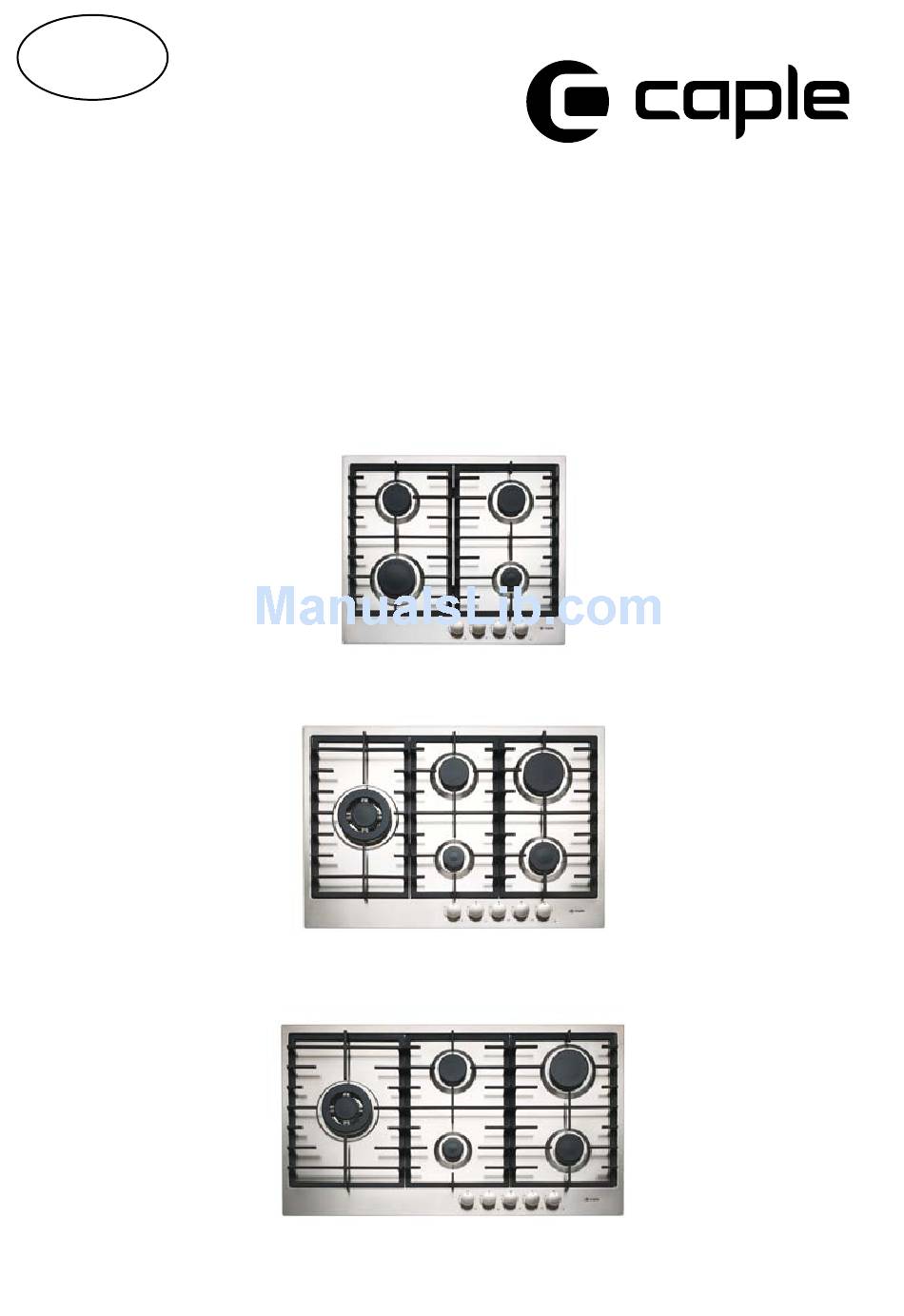

  • Page 1 Instruction manual for gas hobs Model code: C848G Model code: C866G Model code: C873G Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...

  • Page 2: General Notice

    - The products of combustion must be discharged outside through a suction hood or an electric fan (see the “installation” paragraph). - For any possible operation or modification, apply to an authorised Caple Service Centre and demand original spare parts.

  • Page 3: Instructions For The User

    INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer.

  • Page 4: Instructions For The Installer

    G (fig.6). MODEL L (mm) P (mm) Installation room C848G / C866G This appliance is not provided with a device for exhausting the products of combustion. C873G Regarding room ventilation rules where appliance is installed make reference to the legislation, in Any possible wall unit over the hob must be conformity with the local regulations.
  • Page 5 INSTRUCTIONS FOR THE INSTALLER Gas connection Adjusting the burners Make sure that the appliance is adjusted for The lowest flame point must always be properly the gas type available (see the label under the adjusted and the flame must remain on even if appliance).
  • Page 6 Closed Maximum Minimum 10/A...
  • Page 7 C848G C866G C873G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3800 W 8 Control knob for burner...

  • Page 8: Technical Characteristic Tables

    TECHNICAL CHARACTERISTIC TABLES NOMINAL TAPE BY NORMAL NOMINAL INJECTOR BURNERS HEAT INPUT PASS PRESSURE RATE DIAMETER DIAMETER N° DESCRIPTION mbar 1/100 mm 1/100 mm Max. Min. G30-G31 28 - 30 / 37 3000 RAPID 115Y Reg. 3000 G30-G31 28 - 30 / 37 1750 SEMI-RAPID Reg.
