Summary of Contents for Caple C863I

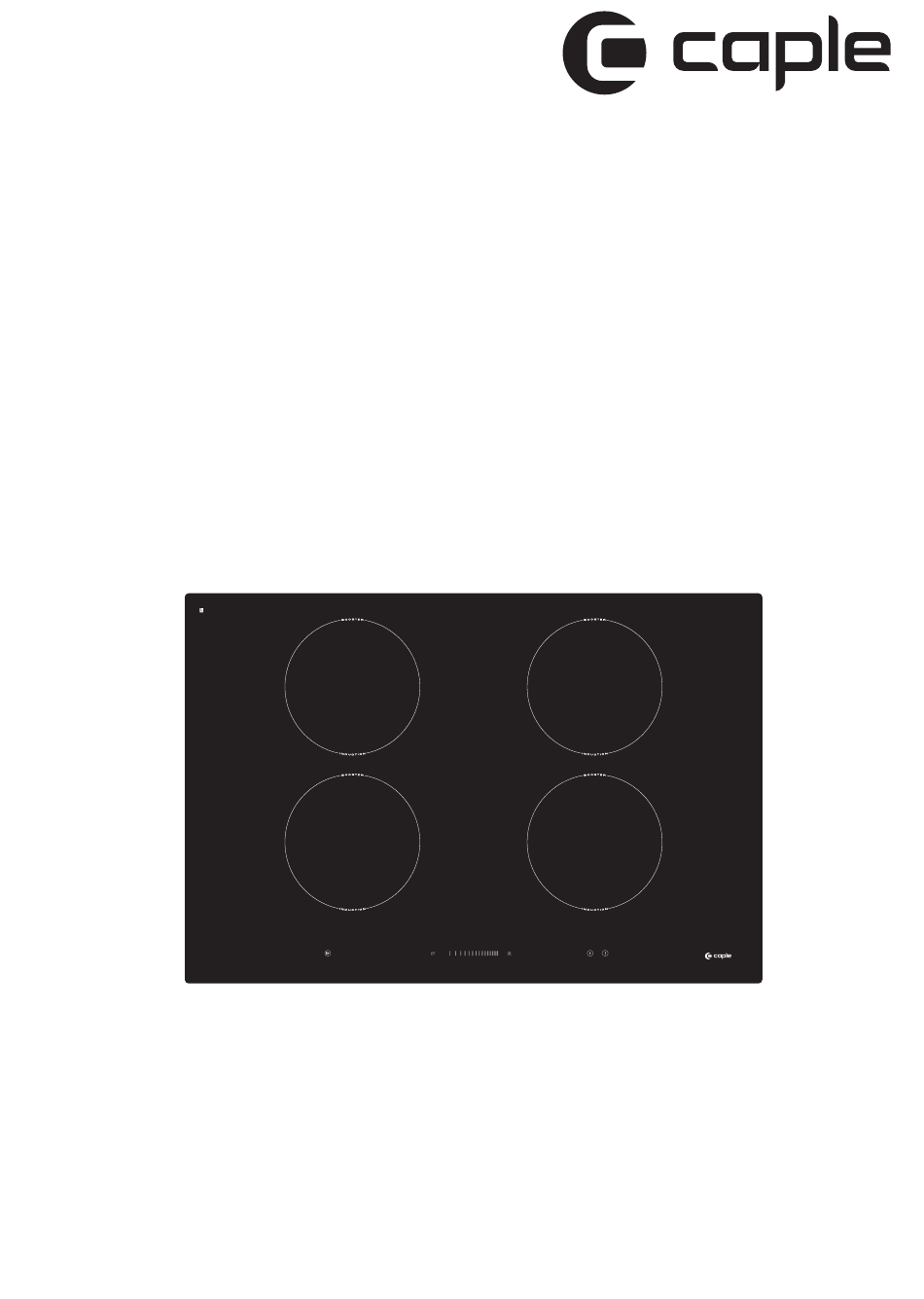

- Page 1 Instruction manual for induction hob Model code: C863I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your induction hob. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance. • Connection to a good earth wiring system is essential and mandatory. -
Page 3: Health Warning
• Do not cook on a broken or cracked hob. If the glass surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact Caple Service or a qualified technician. • Switch the induction hob off at the wall before cleaning or maintenance. -
Page 4: Important Safety Instructions
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician, contact Caple Service. • Do not use a steam cleaner to clean your induction hob. - Page 5 •This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments. •This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have...
-
Page 6: Product Overview
Congratulations on the purchase of your new Caple induction hob. We recommend that you spend some time to read this instruction manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. -
Page 7: A Word On Induction Cooking
A word on induction cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Pan Dimensions
Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. - Page 9 3.Touch the heating zone selection control, and a indicator where you touched will flash 4. Adjust heat setting by touching the slider control. • If you don’t choose a heat setting within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1. •...
-
Page 10: Using The Boost Function
Using the boost function Activate the boost function 1. Touch the heating zone selection control 2. Touch the boost control , the zone indicator show “b” and the power reaches Max. Cancel the boost function 1. Touch the heating zone selection control that you wish to cancel the boost function a: Touch the boost control “... -
Page 11: Locking The Controls
2. Touch the keep warm control , the zone indicator show “ “ Cancel the keep warm function a: Touch the keep warm control “ ”, then the cooking zone will revert to its original setting. b: Touch the slider control, and the cooking zone will revert to the level you select. Locking the controls •... -
Page 12: Using The Timer
When the pot is removed, the induction hob can stop heating immediately and the hob will automatically switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. Using the timer You can use the timer in two different ways: •... - Page 13 that you want to set the timer for. 2. Touch timer control , the “10” will show in the timer display. and the “0” flashes. 3. Set the time by touching the slider control. (e.g. 6) 4. Touch timer control again, the “1” will flash. 5.
-
Page 14: Using The Pause Function
2. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash. • Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator. Using the pause function 1. -
Page 15: Heat Settings
6. Stir the ingredients gently to make sure they are heated through. 7. Serve immediately. Heat settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. -
Page 16: Hints And Tips
Caple sounds and an error Service on 0844 800 3830. code is displayed (typically alternating... -
Page 17: Technical Specification
Problem Possible causes What to do F1-F6 Temperature sensor failure Please contact Caple Service. F9-FA Please contact Caple Service. Temperature sensor of the IGBT failure. Please contact Caple Service. The connection between the display board and the main board is fail... -
Page 18: Before Locating The Fixing Brackets
Under all circumstances, make sure the induction hob is well ventilated and the air inlet and outlets are not blocked. Ensure the induction hob is in good working state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm. -
Page 19: Connecting The Hob To The Mains Power Supply
The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. the method of connection is shown below. • If the cable is damaged or to be replaced, the operation must be carried out the by after-sales agent with dedicated tools to avoid any accidents. Contact Caple Service.
