Summary of Contents for Caple C875I

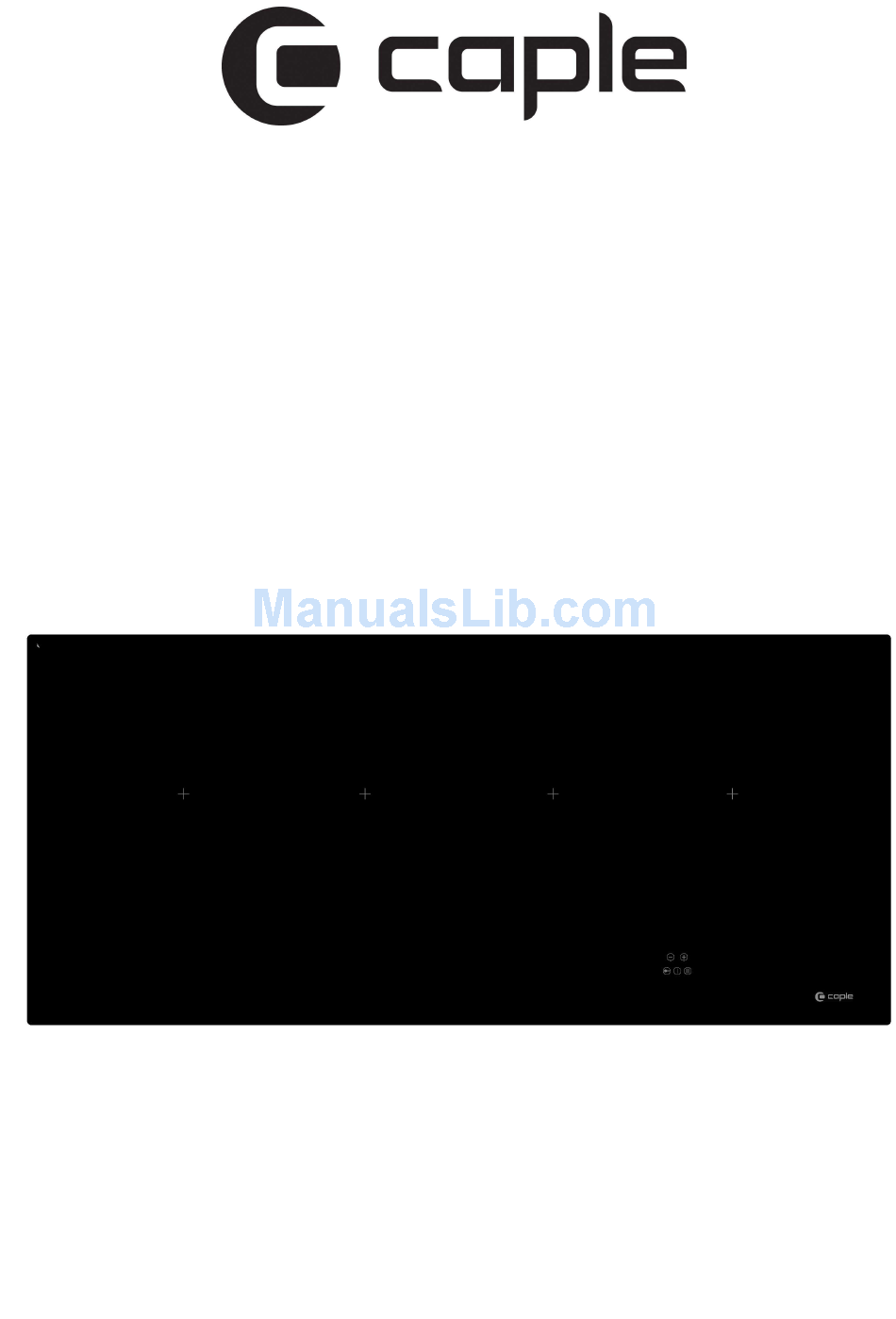

- Page 1 Instruction manual for induction hob C875I Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 3: Table Of Contents
SUMMARY SAFETY ............................4 ......................4 RECAUTIONS BEFORE USING ........................5 SING THE APPLIANCE ................6 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................6 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................6 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ................... 8 ....................... -
Page 4: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 5: Using The Appliance
Using the appliance • Switch the heating zones off after using. • Keep an eye on the cooking using grease or oils: that may quickly ignite. • Be careful not to burn yourself while or after using the appliance. • Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan. -
Page 6: Precautions Not To Damage The Appliance
Precautions not to damage the appliance • Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. • Sand or other abrasive materials may damage ceramic glass. • Avoid dropping objects, even little ones, on the vitroceramic. •... -
Page 7: Other Protections
Other protections • Make sure that the pot or pan is always centred on the cooking zone. The bottom of the pan must cover as much of the cooking zone as possible. • For users with a pacemaker, the magnetic field could influence its operation. -

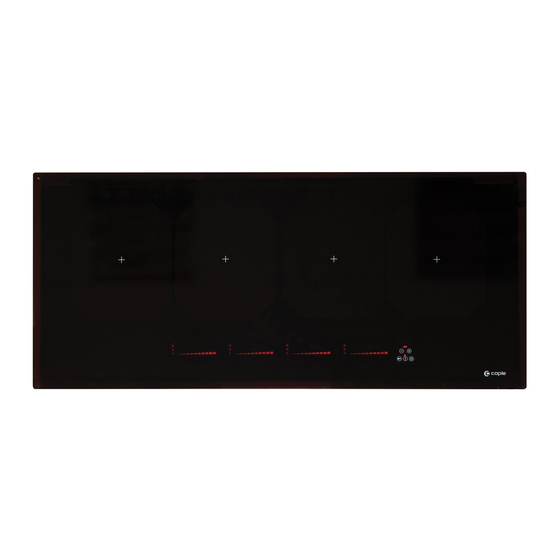

Page 8: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics Type C875I Total power 7400 W Energy consumption for the hob EC 187.4 Wh/kg Heating zone 220 x 180 mm Minimum detection Ø 100 mm Nominal power* 2100 W Booster power* 2600 W Booster power*... -
Page 9: Use Of The Appliance
USE OF THE APPLIANCE Display Display Designation Description Zero The heating zone is activated. 1…9 Booster level Selection of the cooking level. No pan detection No pan or inadequate pan. Heat accelerator Automatic cooking. Error message Electronic failure. Residual heat The heating zone is hot. -
Page 10: Power Selection Zone "Slider" And Timer Setting Zone
Power selection zone “SLIDER” and timer setting zone To select the power with the slider, slide your finger on the “SLIDER” zone. You can already have a direct access if you put your finger directly on the chosen level. Power selection zone “SLIDER” and timer setting zone “SLIDER“... -
Page 11: Residual Heat Indication
Residual heat indication After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [ H ] on the display. The symbol [ H ] disappears when the heating zones may be touched without danger. As far as the residual heat indicators are on light, don’t touch the heating zones and don’t put any heat sensitive object on them. -
Page 12: Timer
Timer The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 999 minutes) for each heating zone. • Setting and modification of the cooking time: Action Control panel Display Select the power level slide on the “SLIDER“... -
Page 13: Automatic Cooking
Automatic cooking All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the pre-selected level. • Start-up: Action Control panel Display Power level selection slide on the “SLIDER“... -
Page 14: "Keep Warm" Function
“Keep warm” Function This function allows the reach and automatically maintains at the temperature of 42, 70 or 94°C. This will avoid liquids overflowing and fast burning at the bottom of the pan. • To engage, to start the function « Keep warm »: Action Control panel Display... -
Page 15: Cooking Advices
COOKING ADVICES Pan quality Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatibles: •... -
Page 16: Examples Of Cooking Power Setting
Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5 Water... -
Page 17: Environment Preservation
The control panel displays [ Er47 ] : • The hob is not connected to the network. Check the connection and reconnect the hob. If one of the symbols above persists, call the Caple Service. ENVIRONMENT PRESERVATION • The materials of packing are ecological and recyclable. -
Page 18: Installation Instructions
The cut out sizes are: Reference Cut-size C875I 890 x 390 mm • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 19: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously. • Protection against the parts under tension must be ensured after the building-in. •... - Page 20 18343/1...
