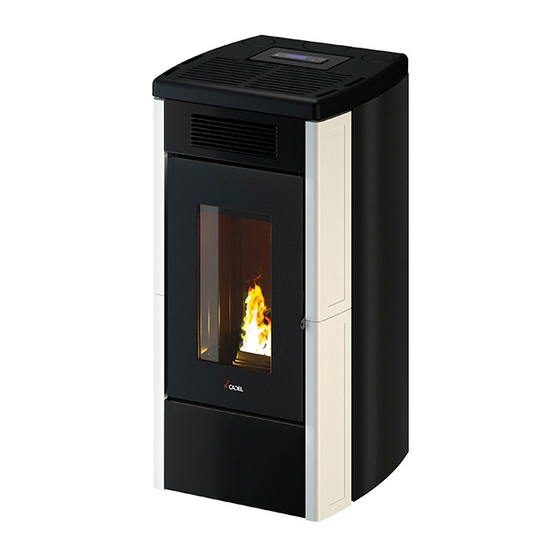

- Page 1 USER MANUAL Pellet Stove ©2020 CADEL srl | All rights reserved - Tutti i diritti riservati ATENA PLUS 12/14 - DUKE 12/14 AIRTIGHT- SABA 12/14 MITHOS PLUS 12/14...
-
Page 2: Manual Simbology
The products also comply with the essential requirements of Directive 2009/125/EC (Eco Design) and, where applicable, Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (ROhS). • Hereby CADEL S.r.l. declares that the radio equipment type Easy Connect Plus + Navel Stand Alone is in compliance with Directive 2014/53/EU. -
Page 3: Safety Requirements
SAFETY REQUIREMENTS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Live electrical parts: disconnect the product from the 230V power supply before perfor- ming any maintenance operation. Only power the product after completing assembly. •... -
Page 4: Warranty Conditions
experience and knowledge must be kept away from packaging. The stove is not a toy. • Childreen must be constantly overseen in order to assure that they do not play with the appliance. • During its running, the stove reaches high temperatures: keep away childreen and animals and for your safety please use appropriate fireproof devices, such as heat-protecting gloves. -
Page 5: Spare Parts
• Failure to have the stove cleaned on an annual basis by an authorised technician or qualified personnel will result in the loss of the warranty. Also excluded from this guarantee are: • Parts subject to normal wear such as gaskets, glass, claddings and cast iron grids, painted, chrome-plated or gilded parts, handles and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the hearth. - Page 6 Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product. For the purpose of preventing damage to health or the environment, users are kindly asked to separate this equipment and/or batteries or accumulators included from other types of waste and to arrange for disposal by the municipal waste service It is possible to ask your local dealer to collect the waste electric or electronic appliance under the conditions and following the methods provided by national laws transposing the Directive 2012/19/EU.
- Page 7 https://www.pegasoheating.com/it/documenti/ NAVEL STAND ALONE Procedure if only valid for models with NAVEL STAND ALONE Wi-Fi technology. ATTENTION! Installation must ONLY be carried out by specialised personnel. The manufacturer will not be held responsible for injury to persons or damage to property or in the event of failed operation.
-
Page 8: Control Panel Display
http://www.free-point.it/it/downloads/ https://www.pegasoheating.com/it/documenti/ INTRODUCTION To have the best performance with the lowest consumption please follow the here descripted instructions. • The lightning of the pellets occurs very easily if the installation is correct and if the chimney flue is efficient. • Switch on the stove at Power 1 for at least 2 hours in order to enable the materials which make up the boiler and the fireplace to adjust the inner springing stress. -
Page 9: Settings Menu
LEGEND Fig. 6 - Fig. 7 Temperature set by user Instant power Ambient temperature If there is ". " = 0.5 °C (29.° = 29.5°) Wi-Fi connection (optional - see dedicated manual) MAIN MENU It is accessed by pressing key 3 (menu). The items that are accessed are: •... - Page 10 • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “Cleaning” using the arrows. • Press “menu” to confirm. • Select “On” with the + - keys. • Press “menu” to confirm and “esc” to exit. c - Screw Loading To select “Screw loading”...
- Page 11 i - Smoke Fan rpm To change the parameter act as follows: • Press the “menu” button. • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “Smoke Fan rpm” using the arrows. • Press “menu” to confirm. •...
-
Page 12: Failed Ignition
• Use the arrows to scroll and select “Comfort Mode” • Press “menu” to confirm. • Use the + - keys to select “On” (Off by default) • Press “menu” to confirm and “esc” to exit. o - Load time-out You must call a customer service centre to access the technical menu, as it requires a password. -
Page 13: Power Failure
smoke which is harmful to health and can cause explosions on the combustion chamber. It is therefore necessary not to stand in front of the stove during ignition stage if dense white smoke is present. If after some months the flame appears weak and/or orange colored or the glass tends to blackens and the burning pot to become encrusted, clean the stove, clean the fume conduit and the chimney flue. -
Page 14: Programmed Mode (Timer) - Main Menu
Fig. 11 - Display Fig. 12 - Display Fig. 13 - Display With function “1” or "2" or "3" or "4" or "5" the fan is forced to work at the selected output. (For example: by setting “3”, even if the fan is set to heat output 5 it will work as if set to heat output “3”, etc.). -
Page 15: Programming Examples
The next step proposes a shutdown time of 10 minutes above that set for start-up: press the + key and adjust the shutdown time, confirm with the “menu” key. Subsequently the system proposes the days of the week in which to activate or deactivate the previously set timer. With the - or + key highlight with the white background the day in which one wishes to activate the timer and confirm with the “menu”... -
Page 16: Sleep Function (Main Menu)
Time Eco" time is over and, if conditions are still met, it switches to the switch-off process. The ECO switch-off countdown is reset if one of the devices resumes recalling power. When the switch-off procedure begins, the panel shows: Off - Active Eco - small flashing flame (see Fig. 18). When the stove is switched off, the panel shows active OFF-ECO with the flame icon off. -
Page 17: Pellet Supply
9.19 COMFORT MODE FUNCTION “COMFORT MODE” this function allows activating-deactivating the fans at power 1. The Comfort Mode option can ONLY be excluded for ducted stoves. 9.20 LOAD TIME-OUT AND PELLET OPERATION TIMER FUNCTION The loading system stops when the tank door is opened. “LOAD TIME-OUT”: the control unit is equipped with a timer that acoustically warns (with 3 beeps) that the load time available is over. -
Page 18: Remote Control (Optional)
• Do not empty the hopper with remaining fuels (unburnt pellet) from the burning pot coming from ignition waster. 10.3 PELLET REFUELLING TIMER This stove is equipped with a safety timer that activates after the pellet hopper door has been open for 90 seconds during reloa- ding (see Fig. -
Page 19: Safety Devices And Alarms
Used batteries contain metals which are harmful for the environment; they must therefore be disposed of separately in the special containers. Fig. 26 - Remote control LEGEND Fig. 26 Button 1 Increase the desired temperature (5÷35 °C) Button 2 Decrease the desired temperature (35÷5 °C) Button 3 On / off Button 4... -
Page 20: Smoke Fan
11.6 SMOKE FAN If the fan stops, the electronic board promptly shuts off the pellets supply and an alarm message is displayed. 11.7 GEAR MOTOR If the gear motor stops, the boiler will continue to run until the flame goes out due to lack of fuel and until a minimum level of cooling is reached. -
Page 21: Alarm Reset
PANEL ALERT TYPE OF PROBLEM SOLUTION The set smoke threshold has been exceeded. Reduce Smoke overheating. pellets loading (SETTINGS menu - Pellet Recipe). Check for chimney obstructions/fire door opening, pel- A05 Pressure let tank opening, gasket seals, side fire ducts cleaning, Flue gas pressure switch trip. -
Page 22: Hopper Cleaning
Fig. 27 - Burning pot extraction Fig. 28 - Burning pot cleaning • Extract the burning pot (see Fig. 27) from its seat and empty it from the ash. • If necessary clean with a pointed object the holes obstructed by encrustations (see Fig. 28). Fig. -
Page 23: Glass Cleaning
12.4 FUME PIPES ANNUAL CLEANING Clean annually from soot with brushes. The cleaning operation must be executed by a specialized stove-repairer who will provide for the cleaning of fume pipe, chimney flue and chimney pot. He will also check their eficiency and will release a written declaration of the safety of the appliance. This operation must be executed at least once a year. - Page 24 PROBLEM CAUSE SOLUTION INTERVENTION The stove is without power Check if the plug is connected. supply Burned protection Replace the protection fuses in the electric socket (3.15A- fuse in the electric 250V). socket The control display Faulty control Replace the control display. does not switch on display Faulty flat cable...
- Page 25 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Auger blocked by a foreign object (for Clean the auger. example nails) The fire extinguish Bad quality pellets Try other types of pellets. and the stove stops Pellet drop value Adjust the pellet loading. too low "phase 1"...
- Page 26 PROBLEM CAUSE SOLUTION INTERVENTION The stove is at its Ambient tempera- The stove is at its minimum value. Increase the desired am- highest power but ture reached. bient temperature. does not heat up. Stove running and Reached fume display showing outlet limit tempe- The stove runs at minimum.
- Page 27 Rev. 02 - 2021 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
