BHM
02/18/19
NTV-DOC166
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
GVIF-JAG
NTV-KIT175
Overview
The GVIF-JAG Kit allows the user to add up to 3 video inputs and a backup camera input to the
factory media screen in select Jaguar vehicles. Audio integration requires that the vehicle have
a factory audio input.

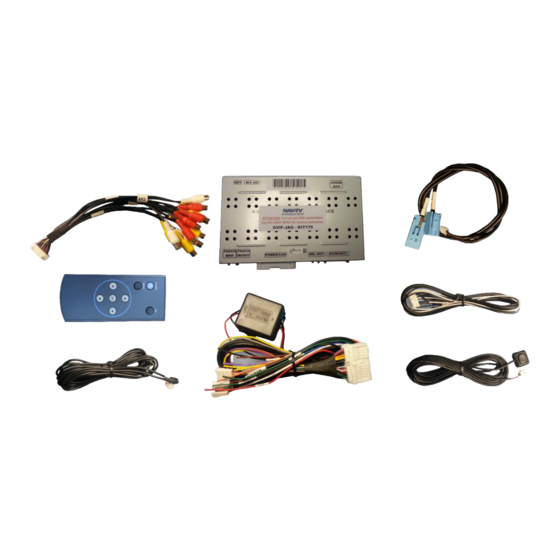

Kit Contents
AV Input Harness
GVIF Video cable
GVIF-JAG Interface
RGB Input cable
Remote
IR Eye Harness
Power/CAN Harness
Input Toggle Switch
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
Advertisement
Related Manuals for Nav TV GVIF-JAG
Summary of Contents for Nav TV GVIF-JAG
- Page 1 NTV-KIT175 Overview The GVIF-JAG Kit allows the user to add up to 3 video inputs and a backup camera input to the factory media screen in select Jaguar vehicles. Audio integration requires that the vehicle have a factory audio input.
- Page 2 02/18/19 NTV-DOC166 Interface Connectors TX/RX Touch Power/CAN AV IN/OUT IN/OU OUOUT OUOUT OUOU LCD IN/OUT Dip Switches Status LEDs (LVDS Cable) Dip Switch Settings* Configure prior to installation Dip SW: Enables Enables Enables Enables Resolution Resolution Factory or no Rev- adjust adjust (2) DOWN...
-
Page 3: Installation
AV sources upon toggle switch presses (optional. Page 2). 8. Adjust dip switches on the GVIF-JAG interface properly, refer to the chart on page 2 for qualifications. 9. Connect the white plug from the ‘Power/CAN Harness’ to the port on the GVIF-JAG interface labeled ‘Power/CAN’. - Page 4 (often it can be stuck inside a vent). This connection would be necessary if you want to be able to adjust anything from the GVIF-JAG interface’s menu. Refer to ‘Menu Adjustments’ for menu options.
-
Page 5: Image Menu
02/18/19 NTV-DOC166 Menu Adjustments Before you start: • Make sure the car’s ignition is on and radio is booted/settled • You must be in ‘NAVI’ (RGB), ‘AV1’, ‘AV2’ or ‘AV3’ mode (on display screen) • Use the remote ‘OK’ button to switch modes, or use the provided input toggle switch •... - Page 6 02/18/19 NTV-DOC166 FAQs Q. I cannot switch A/V sources. A. Check IR or toggle switch connection. Check the LEDs on the interface, if nothing is lit up with vehicle ignition, check power/ground connections. Q. All I see on the display is a black screen (no factory image pass-through). A.
