Summary of Contents for Champion Power Equipment C20049F

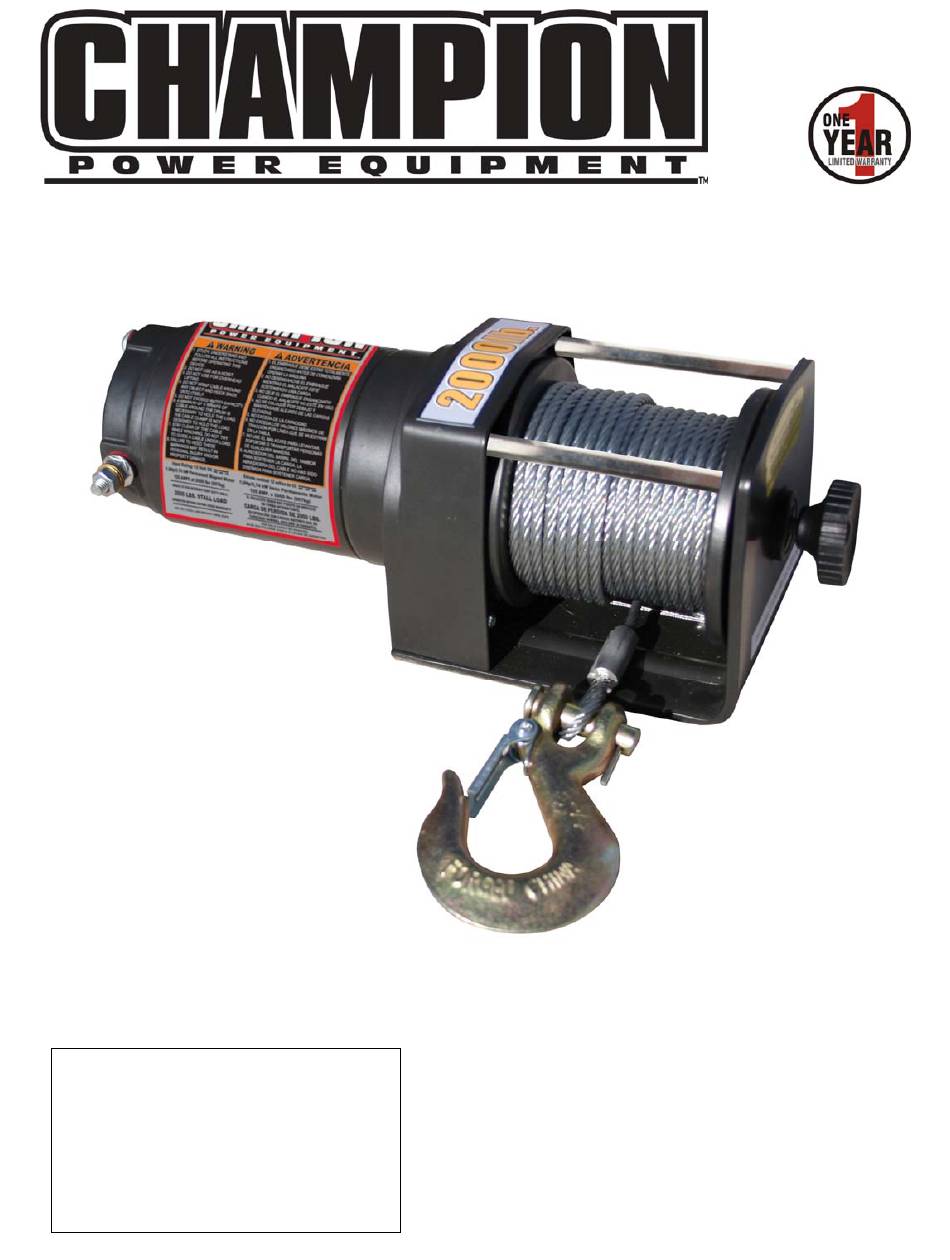

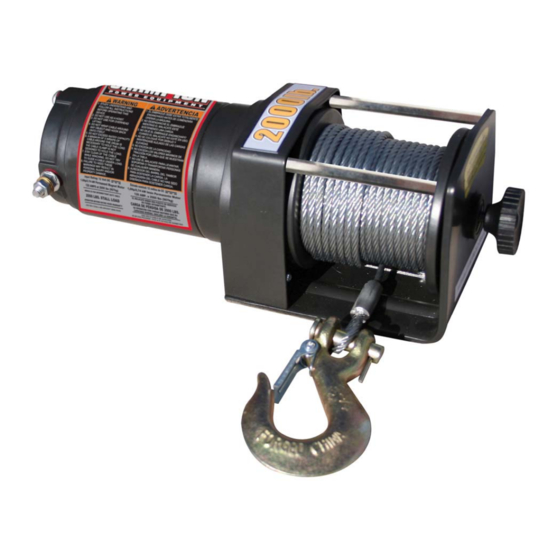

- Page 1 C20049F Rev C20049F-20090610 10006 Santa Fe Springs Road Santa Fe Springs, CA 90670 USA Made in China Owner’s Manual and Operating Instructions 2000 lb. SAVE THESE INSTRUCTIONS WINCH Important Safety Instructions are included in this manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ........1 Troubleshooting ......13 Accessories ..........1 Warranty ........14 This Booklet ..........1 Warranty Qualifications ......14 Manual Conventions ......2 Repair/Replacement Warranty ....14 Safety Rules ........3 Do not return the unit to the place of ... -
Page 5: Introduction
Every effort has been made to ensure the Congratulations on your purchase of a accuracy and completeness of the Champion Power Equipment winch. CPE information in this manual. We reserve the designs and builds winches to strict right to change, alter and/or improve the specifications. -
Page 6: Manual Conventions
NOTE If you have questions regarding your winch, we WARNING can help. Please call our help line at 1-877-338- 0999. WARNING indicates a potentially hazardous could situation which, if not avoided, result in death or serious injury. Rev C20049F-20090610... -
Page 7: Safety Rules
Loss of traction can cause a shock load on the cable. WARNING The wire rope may break before the motor stalls. For heavy loads at or near rated capacity, use a pulley block/snatch block to reduce the load on the wire rope. Rev C20049F-20090610... - Page 8 Never release the free-spool clutch when there is a load on the winch. Use gloves to protect hands when handling the cable. Never let the cable slide through your hands. CAUTION Use hook strap when handling the hook for spooling or unspooling the wire rope. Rev C20049F-20090610...
-
Page 9: Controls And Features
It can feed or wind the rope depending on the remote winch switch. (5) Free spooling Clutch: The clutch allows the operator to manually disengage (“Out”) the spooling drum from the gear Rev C20049F-20090610... -
Page 10: Mounting
2. Attach the clevis hook and hand strap. 3. Connect the battery leads. FOR WINCH TO FUNCTION PROPERLY: Connect the red (positive) lead of the solenoid to the positive (+) terminal of the vehicle’s Rev C20049F-20090610... -
Page 11: Operation
Always use a sling as an anchor point. General Tips for Safe Operation Your C20049F winch is rated at 2,000 lbs. capacity in first layer (max) when spooling the first rope layer on the drum. Overloads can damage the winch, motor and/or wire rope. -
Page 12: Winching Techniques A-Z
Clear the area. Make sure all spectators Clean and inspect connections and stand clear and that no one is directly in mounting hardware for next winching front or behind the vehicle or anchor operation. point. Rev C20049F-20090610... -
Page 13: Maintenance
Correct any issue before 3. Remove old Cable Assembly and attach operating the winch. new one. 4. Retract Cable Assembly onto drum being careful not to allow kinking. NOTE For service or parts assistance, contact our help line at 1-877-338-0999. Rev C20049F-20090610... -
Page 14: Specifications
Layers of cable on drum Max pulling capacity per 2000 1630 1380 1190 1050 layer Cable capacity 14.0 22.0 31.0 41.0 per layer 12.5 * Use double line and snatch block for pulling loads over 1,000lb / 454 kg. Rev C20049F-20090610... -
Page 15: Winch Diagram
Specifications Winch Diagram Rev C20049F-20090610... -
Page 16: Winch Parts List
300016 Cap Screw M6 x 16 300018 Cap bolt M8 x 35 300019 Flat Washer Φ8 300020 Lock Washer Φ8 300021 Nut M8 200600-Y Switch Assembly-Yellow 200700 Cable Assembly 300900 Strap 300022 Hand saver bar 300800 Snatch block Rev C20049F-20090610... -
Page 17: Troubleshooting
Motor overheating winch running time too long Allow winch to cool down periodically. Motor runs in one direction Defective or stuck Solenoid Tap Solenoid to loosen contacts. only Repair or Replace solenoid. Defective Switch Assembly Replace Switch Assembly. Rev C20049F-20090610... -
Page 18: Warranty
Warranty Qualifications Installation, Use and Champion Power Equipment (CPE) will Maintenance register this warranty upon receipt of your Warranty Registration Card and a copy of... -
Page 19: Contact Information
Fax no.: 1-562-236-9429 warranty. Technical Service Contact Information Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 Address tech@championpowerequipment.com Champion Power Equipment, Inc. Customer Service 10006 Santa Fe Springs Rd. Santa Fe Springs, CA 90670 Rev C20049F-20090610... -
Page 20: Notes
Notes Notes Rev C20049F-20090610...
