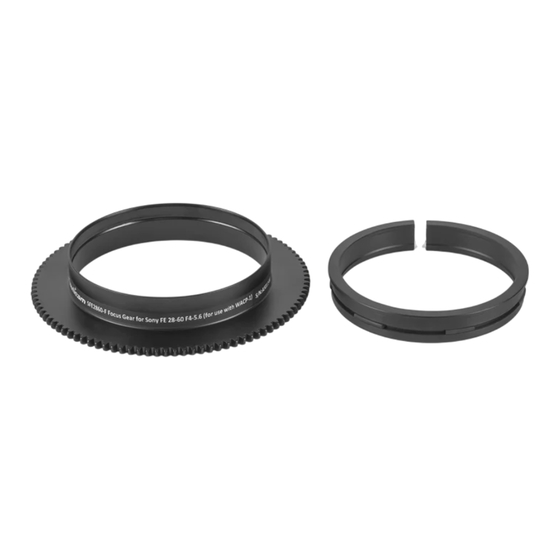

Focus gear for sony fe 28-60 f4-5.6 (for use with wacp-1)

Advertisement

Current as of 1/16/2023
INSTRUCTION MANUAL
For SFE2860-F Focus Gear for Sony
FE 28-60 F4-5.6 (for use with
WACP-1)
PN# 37168

FORWORD

Thank you for your purchase of a NAUTICAM
product.
At NAUTICAM, we pride ourselves in the ability to
recognize the requirements of professional as well
as amateur underwater photographers and fulfill
them through the innovative designs of our
products. We strive to achieve a high level of
user-friendliness by allowing stress-free
installation and easy operation of all important
functions of the camera.
Each product is individually inspected and water
pressure tested to ensure optimum quality.
Please read this manual carefully before using the
product, this will maximize its performance as well
as its lifetime.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFE2860-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam SFE2860-F

  • Page 1 PN# 37168 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
  • Page 2 NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Page 3 IDENTIFICATION OF PARTS SFE2860-F Focus Gear Plastic C-ring Spare Rubber grips...
  • Page 4 MOUNT THE GEAR ON A LENS 1. Insert the plastic C-ring as shown and place it over the lens. 2 Insert the SFE2860-F Focus Gear on the plastic C-ring until it reaches the flange of the plastic C-ring. 3. To remove the SFE2860-F Focus Gear, reverse the above steps.
  • Page 5 CONTROL THE GEAR 1. The SFE2860-F Focus Gear can be controlled by a focus knob of #37305 N100 to N120 35.5mm Port Adaptor II After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knob operates correctly.
  • Page 6 SPECIFICATIONS #37168 SFE2860-F Focus Gear for Sony FE 28- 60 F4-5.6 (for use with WACP-1) Dimensions: DIA102.0mm × 15.9mm Type: Focus gear Sony FE 28-60 F4-5.6 (for Compatible lens: use with WACP-1) Remark: Nauticam supports only e-manuals. Please download corresponding product manuals on google drive https://bit.ly/Nauticammanual, or contact us for e-...
